NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

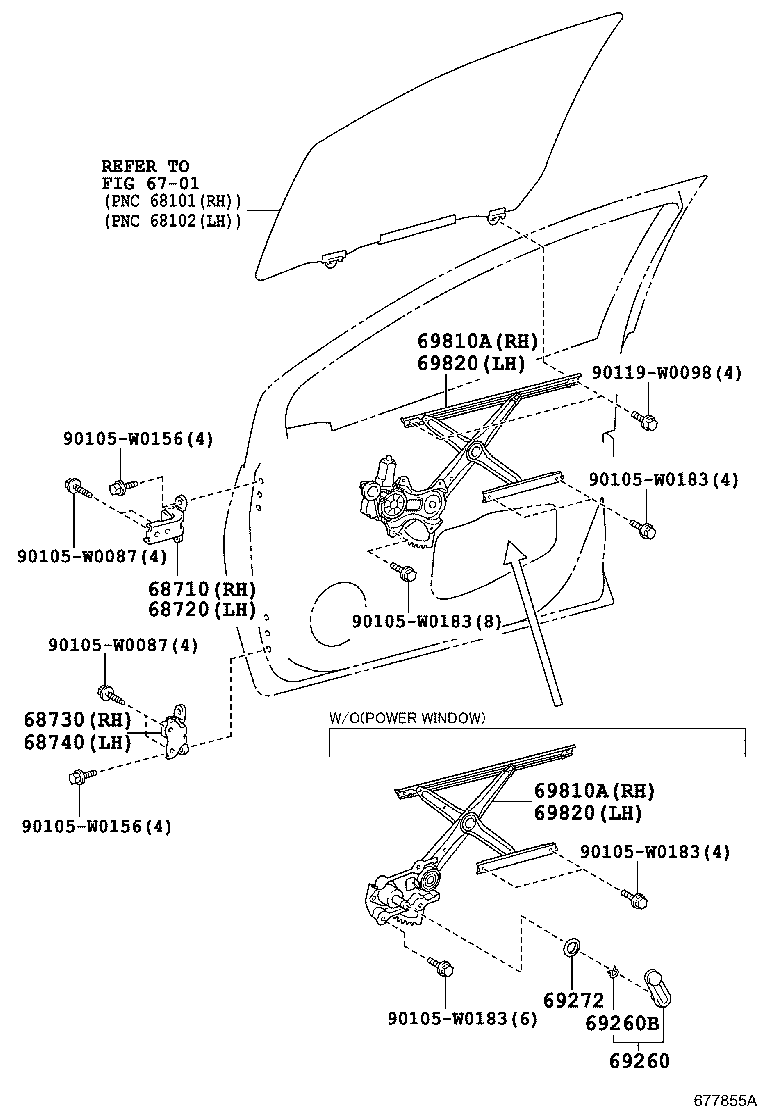

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69260 69260B 69272 69810A 69810A 69820 69820 90105W0087 90105W0087 90105W0156 90105W0156 90105W0183 90105W0183 90105W0183 90105W0183 90119W0098
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0D091

NCP131

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0D091

NCP131

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-0D071

NCP131

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-0D071

NCP131

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-02020C0

NCP131..5D

POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1#

 2
69260-02020C0

NCP131

BLACK,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52100

NCP131..5D

POWER WINDOW-WITH(FRONT & REAR)

 2
90080-52100

NCP131

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-0D030

NCP131

 2
69268-0D030

NCP131..5D

POWER WINDOW-WITH(FRONT & REAR)

 2
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-0D300

NCP131..5D

POWER WINDOW-WITH(FRONT & REAR)

 1
69810-0D310

NCP131

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-0D300

NCP131..5D

POWER WINDOW-WITH(FRONT & REAR)

 1
69810-0D310

NCP131

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-0D320

NCP131

 1
69820-0D300

NCP131..5D

POWER WINDOW-WITH(FRONT & REAR)

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-0D320

NCP131

 1
69820-0D300

NCP131..5D

POWER WINDOW-WITH(FRONT & REAR)

 1
Common parts
90105-W0087
90105-W0156
90105-W0183
90119-W0098
Linked diagrams
6701
