NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

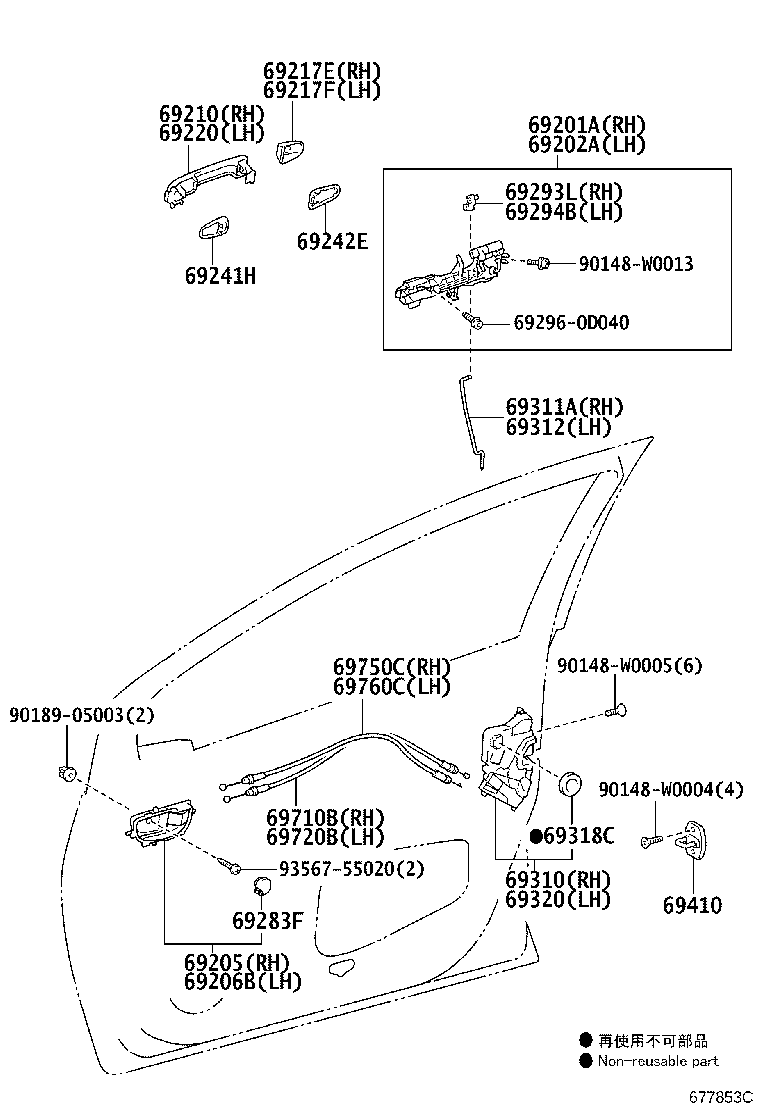

Click highlighted areas on diagram

diagram 69201A 69202A 69205 69206B 69210 69217E 69217F 69220 69241H 69242E 69283F 69293L 69294B 692960D040 69310 69311A 69312 69318C 69320 69410 69710B 69720B 69750C 69760C 90148W0004 90148W0005 90148W0013 9018905003 9356755020
Part # Description Qty Price
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-0D050

NCP131

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-0D070

NCP131

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-0D200C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
69205-0D201C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
69205-0D270C0

NCP131..USA

BLACK,TRIM1#

 1
69205-0D271C0

NCP131..USA

BLACK,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-0D271C0

NCP131..USA

BLACK,TRIM1#

 1
69206-0D280C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
69206-0D270C0

NCP131..USA

BLACK,TRIM1#

 1
69206-0D281C0

NCP131..USA

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-0D904

NCP131

PAINT REQ.

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-0D911

NCP131

LESS COLOR

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-0D911

NCP131

LESS COLOR

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-0D904

NCP131

PAINT REQ.

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-0D010

NCP131

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-0D010

NCP131

 2
69283F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL
69283-0D010C2

NCP131

EU BLACK,TRIM1#

 2
69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-0D030

NCP131

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-0D060

NCP131

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-0D490

NCP131

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-0D130

NCP131

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-0D130

NCP131

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

NCP131

 2
69320 - LOCK ASSY, FRONT DOOR, LH
69040-0D460

NCP131

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-0D030

NCP131

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-0D170

NCP131..5D

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-0D170

NCP131..5D

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-0D110

NCP131..5D

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-0D110

NCP131..5D

 1
Common parts
69296-0D040
90148-W0004
90148-W0005
90148-W0013
90189-05003
93567-55020
