NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-0D090 |
NCP131 TYPE B:REFER ILLUST. |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-0D090 |
NCP131 TYPE B:REFER ILLUST. |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D240C0 |
NCP131 BLACK,TRIM1#,TYPE B:REFER ILLUST. |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-0D010 |
NCP131 TYPE B:REFER ILLUST. |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-0D010 |
NCP131 TYPE B:REFER ILLUST. |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-0D010 |
NCP131 TYPE B:REFER ILLUST. |
1 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP131 |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP131 |
2 | ||

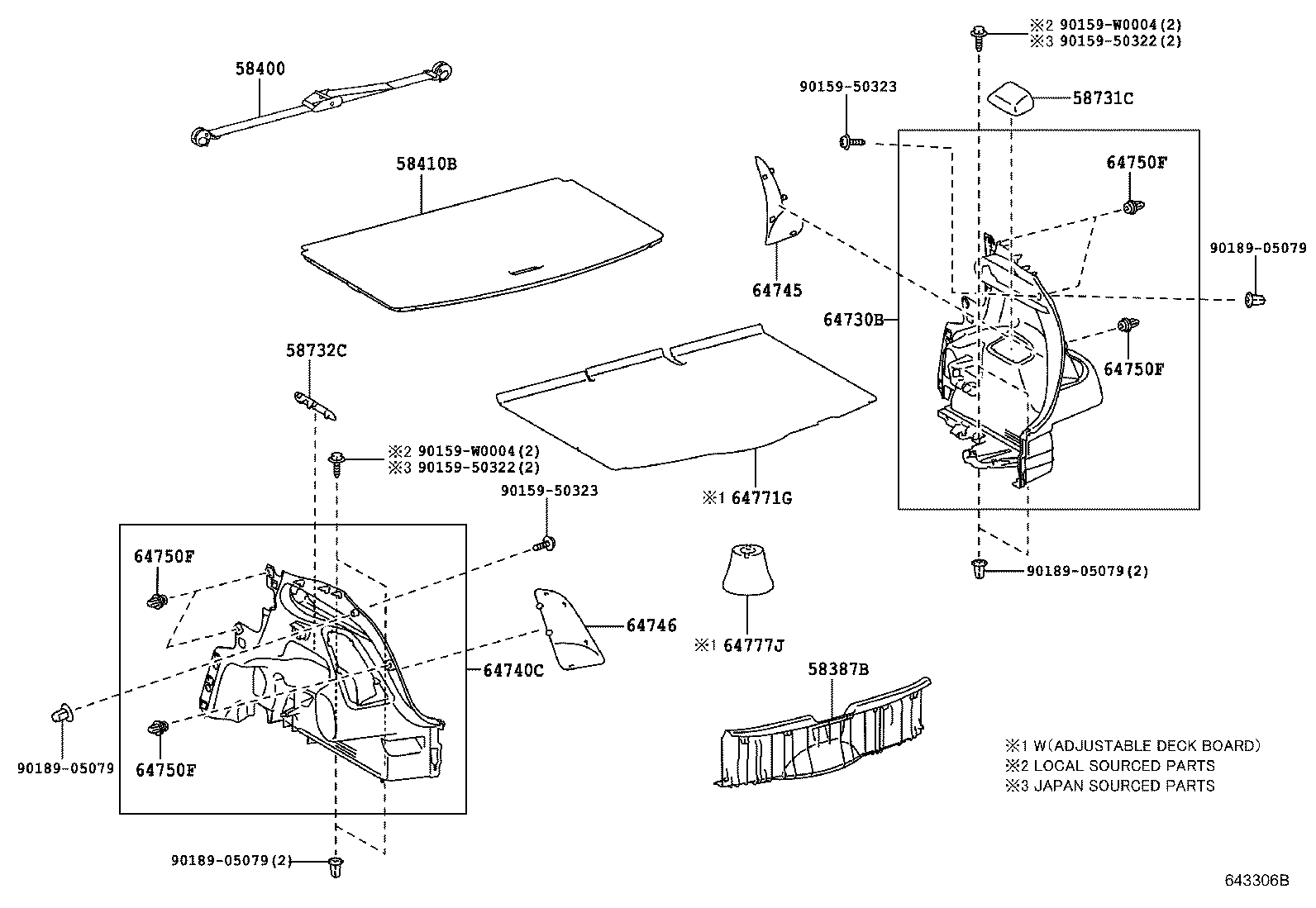

ILLUST NO. 1 OF 2(1305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-0D090C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 58400 - BELT ASSY, LUGGAGE HOLD, NO.1 | ||||
| 58400-52010 |
NCP131 |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-0D050B0 |
NCP131 DARK GRAY,TRIM1# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-0D040C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-0D040C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0D240C0 |
NCP131..5D BLACK,TRIM1# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0D260C0 |
NCP131..5D BLACK,TRIM1# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-0D040C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-0D050C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
NCP131 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
NCP131 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
NCP131 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 63395-12150 |
NCP131 |
6 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90159-W0004 | ||||
| 90189-05079 | ||||
