NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

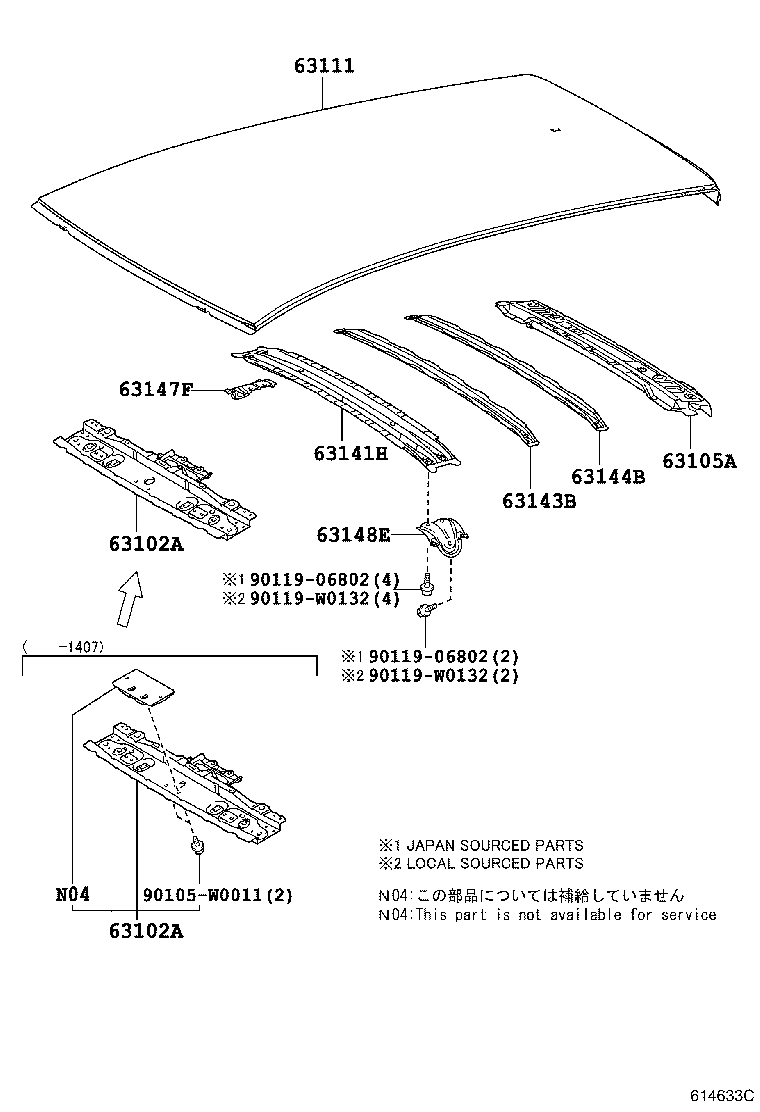

Click highlighted areas on diagram

diagram 63102A 63102A 63105A 63111 63141H 63143B 63144B 63147F 63148E 90105W0011 9011906802 9011906802 90119W0132 90119W0132
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0D021

NCP131

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0D021

NCP131

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-0D060

NCP131

 1
63111 - PANEL, ROOF
63111-0D150

NCP131

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-0D100

NCP131

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-0D050

NCP131

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-0D050

NCP131

 1
63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH
63147-0D050

NCP131

 1
63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH
63147-0D050

NCP131

 1
Common parts
90105-W0011
90119-06802
90119-W0132
