NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1305- )

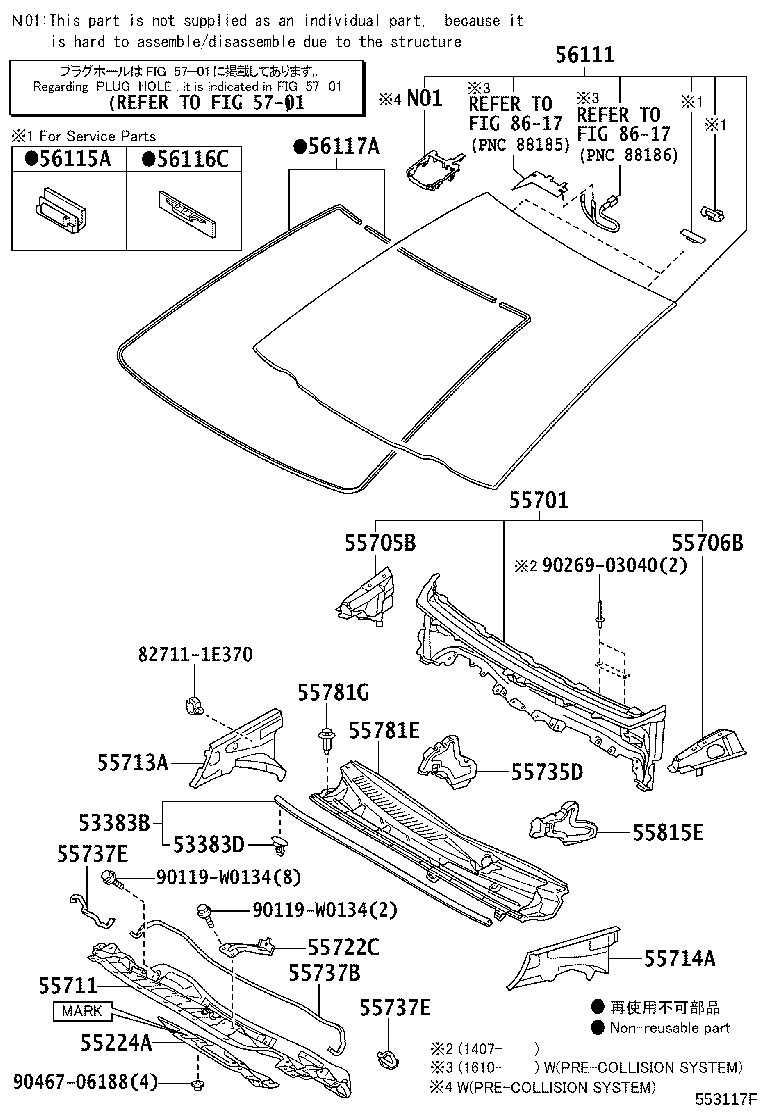

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-0D120 |
NCP131 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-12150 |
NCP131 |
6 | ||
| 55224A - INSULATOR, DASH PANEL, OUTER NO.2 | ||||
| 55224-0D010 |
NCP131 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-0D280 |
NCP131 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-0D090 |
NCP131 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-0D100 |
NCP131 |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-0D150 |
NCP131 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0D090 |
NCP131 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0D090 |
NCP131 |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55722-0D100 |
NCP131 |
1 | ||
| 55735D - SEAL, FRONT AIR SHUTTER, RH | ||||
| 55735-0D030 |
NCP131 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-0D010 |
NCP131 |
1 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-0D030 |
NCP131 |
2 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-0D030 |
NCP131 |
2 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0D180 |
NCP131..USA COLD AREA SPEC |
1 | ||
| 55708-0D080 |
NCP131..USA |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C0 |
NCP131 BLACK |
2 | ||
| 55815E - SEAL, FRONT VENTILATOR, NO.1 | ||||
| 55815-0D010 |
NCP131 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0D500 |
NCP131 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NCP131 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NCP131 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-50130 |
NCP131 *D,L=3186 OR 606 |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90119-W0134 | ||||
| 90269-03040 | ||||
| 90467-06188 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 8617 | ||||
