NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)

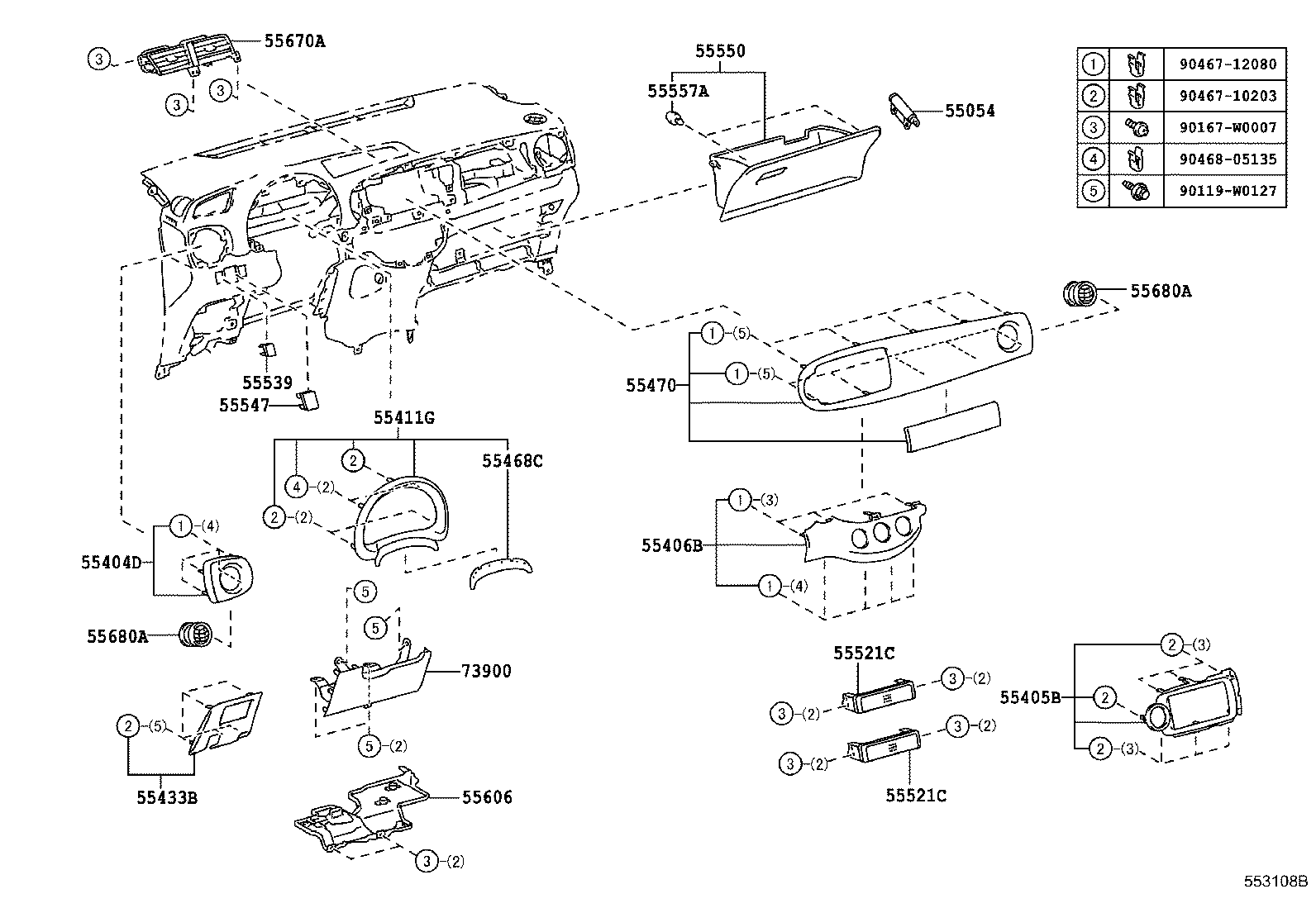

ILLUST NO. 2 OF 2(1305-1407)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NCP131 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0D010B0 |
NCP131..USA REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),MD.GRAY,TRIM1# |
1 | ||
| 55404-0D030B0 |
NCP131..USA MD.GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D420 |
NCP131 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D490C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D140C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D030C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D060 |
NCP131 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-0D030B0 |
NCP131 MD.GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NCP131 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NCP131 |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D280C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NCP131 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D050 |
NCP131 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D070C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0D010C0 |
NCP131..USA BLACK,TRIM1# |
2 | ||
| 55680-0D020C0 |
NCP131..USA REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1# |
2 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0D010C0 |
NCP131..USA BLACK,TRIM1# |
2 | ||
| 55680-0D020C0 |
NCP131..USA REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1# |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D031C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 73900-0D030C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||

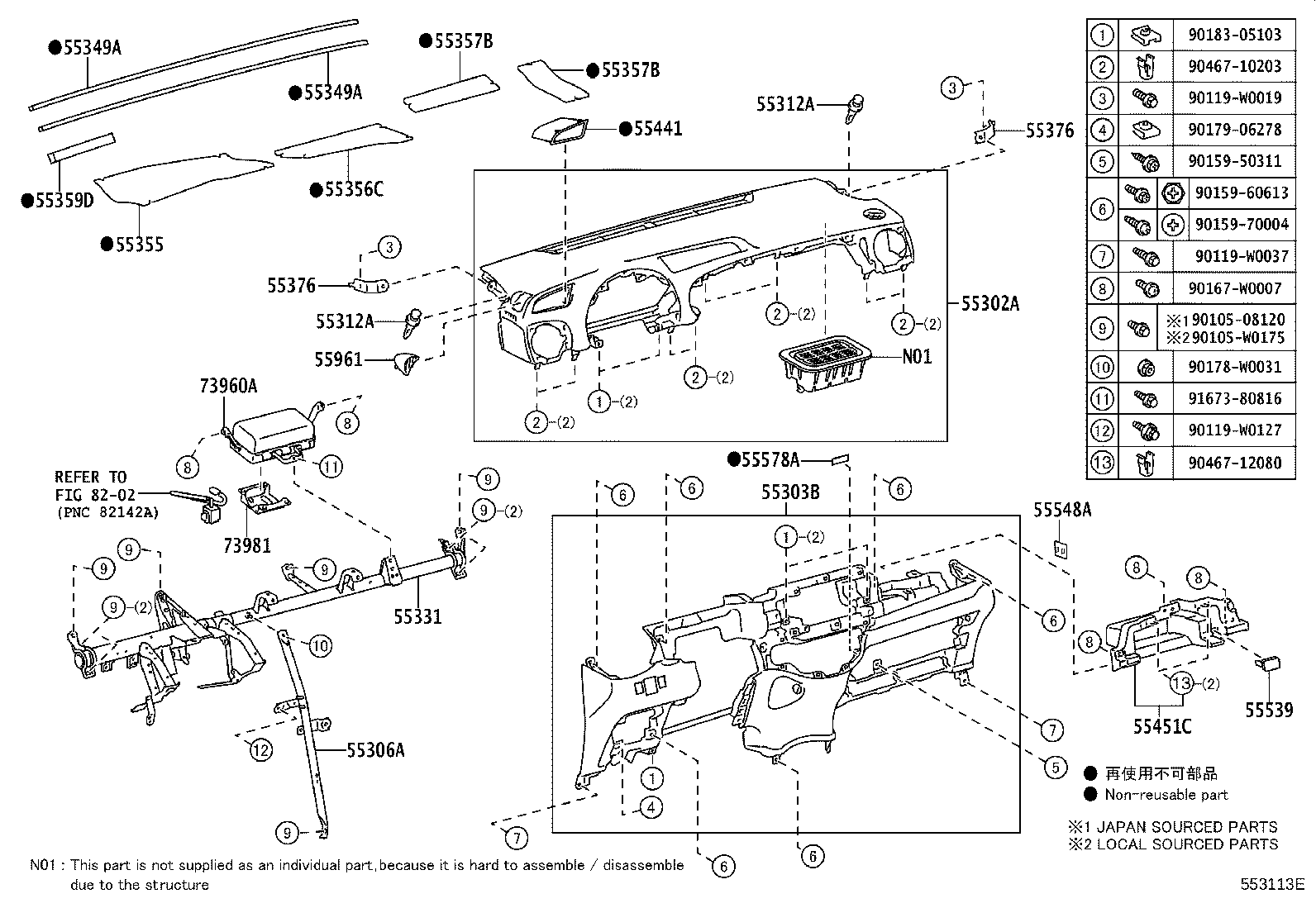

ILLUST NO. 1 OF 2(1305-1407)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D160C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D120C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D170 |
NCP131 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NCP131 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NCP131 |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52720 |
NCP131 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55355-0D031 |
NCP131 |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55355-0D031 |
NCP131 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D120 |
NCP131 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D120 |
NCP131 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D150 |
NCP131 |
2 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D150 |
NCP131 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-0D150 |
NCP131 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-0D030 |
NCP131 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-0D030 |
NCP131 |
2 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-0D120C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52190C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12090C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
NCP131 |
2 | ||
| 55578-0D040 |
NCP131 |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-0D010C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52161 |
NCP131 |
1 | ||
| 73981 - COVER, CONNECTOR AIR BAG PASSENGER | ||||
| 73981-52010 |
NCP131 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-W0175 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90159-50311 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 8202 | ||||
