NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0D210 |
NCP131..USA |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0D140 |
NCP131 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
NCP131 |
5 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-52120 |
NCP131..USA |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-52120 |
NCP131..USA |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0D100 |
NCP131 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0D100 |
NCP131 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
NCP131 |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47020 |
NCP131 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
NCP131 |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47020 |
NCP131 |
2 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0D091 |
NCP131 |
1 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 55799-52020 |
NCP131 |
2 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0D091 |
NCP131 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NCP131 |
2 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-52060 |
NCP131 |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||

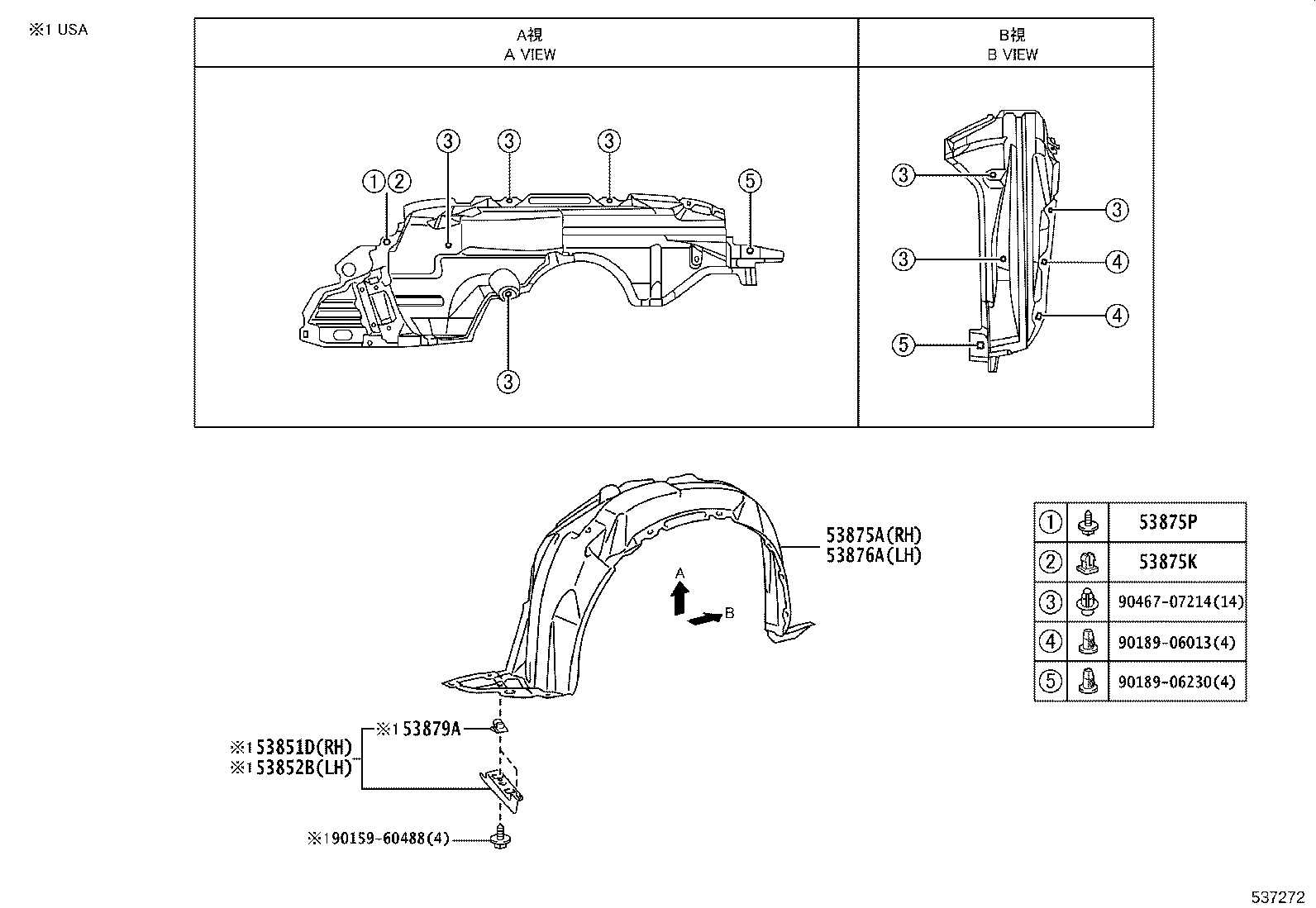

ILLUST NO. 2 OF 2(1305- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-0D070 |
NCP131..USA |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-0D030 |
NCP131..USA |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0D430 |
NCP131 |
1 | ||
| 53875-0D160 |
NCP131 |
1 | ||
| 53875K - GROMMET, SCREW | ||||
| 90189-06237 |
NCP131 |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60383 |
NCP131 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0D430 |
NCP131 |
1 | ||
| 53876-0D160 |
NCP131 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
NCP131..USA |
4 | ||
| Common parts | ||||
| 90159-60488 | ||||
| 90189-06013 | ||||
| 90189-06230 | ||||
| 90467-07214 | ||||
