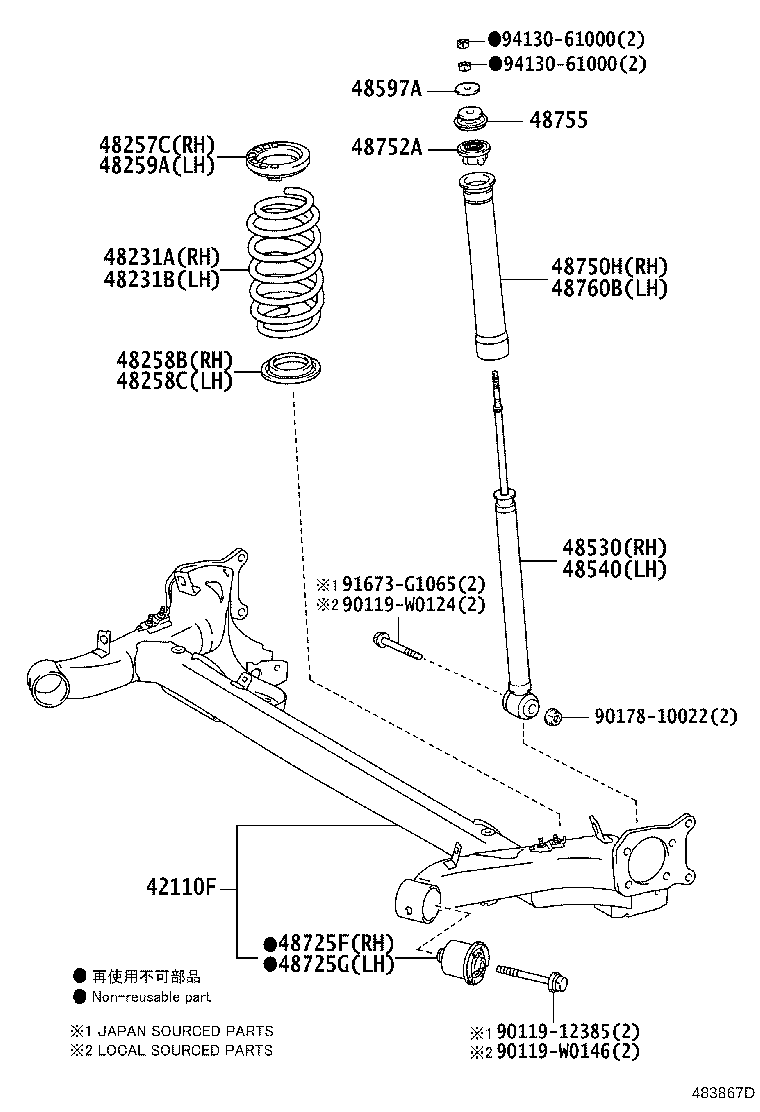

Toyota Yaris (frp) NCP131 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
42110F - BEAM ASSY, REAR AXLE
42110-0D310	NCP131	05/2013 - 07/2014	1
48231A - SPRING, COIL, REAR RH
48231-52F30	NCP131	05/2013 - 07/2014	1
48231B - SPRING, COIL, REAR LH
48231-52F30	NCP131	05/2013 - 07/2014	1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-0D010	NCP131	05/2013 - 07/2014	1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-0D050	NCP131	05/2013 - 07/2014	1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-0D050	NCP131	05/2013 - 07/2014	1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-0D010	NCP131	05/2013 - 07/2014	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-0D820	NCP131 MARK 48530-0D820	05/2013 - 07/2014	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-0D820	NCP131 MARK 48530-0D820	05/2013 - 07/2014	1
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
90201-10320	NCP131	05/2013 - 07/2014	2
48725F - BUSH, REAR AXLE CARRIER, RH
48725-0D110	NCP131	05/2013 - 07/2014	1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-0D110	NCP131	05/2013 - 07/2014	1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-0D050	NCP131	05/2013 - 07/2014	1
48752A - STOPPER, REAR SUSPENSION SUPPORT
48752-0D010	NCP131	05/2013 - 07/2014	2
48755 - SUPPORT, REAR SUSPENSION
48755-0D070	NCP131	05/2013 - 07/2014	2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-0D050	NCP131	05/2013 - 07/2014	1
Common parts
90119-12385
90119-W0124
90119-W0146
90178-10022
91673-G1065
94130-61000

NCP131L-CHMRKA (2013)
