NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1305- )R

Click highlighted areas on diagram

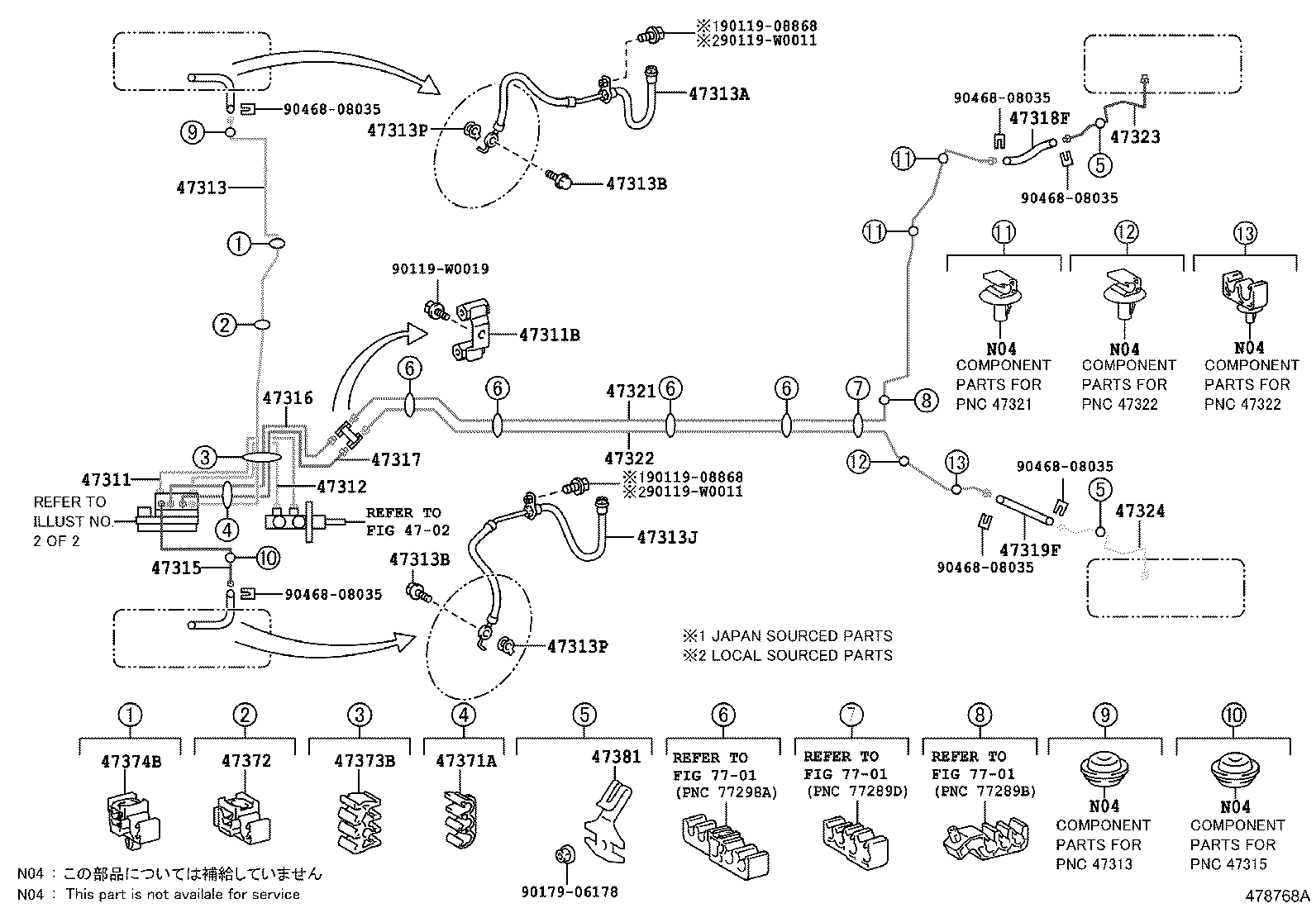

BRAKE TUBE, W(REAR DRUM BRAKE)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 90119W0011 90119W0011 90119W0019 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D680

NCP131

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NCP131

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D610

NCP131

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D600

NCP131

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2034

NCP131

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP131

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP131

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2035

NCP131

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP131

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP131

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D580

NCP131

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D500

NCP131

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D490

NCP131

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2036

NCP131

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2037

NCP131

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D420

NCP131

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D420

NCP131

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D330

NCP131

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D330

NCP131

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP131

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D86

NCP131

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90464-00925

NCP131

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D82

NCP131

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP131

 2
Common parts
90119-08868
90119-W0011
90119-W0019
90179-06178
90468-08035
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1305-1407)

Click highlighted areas on diagram

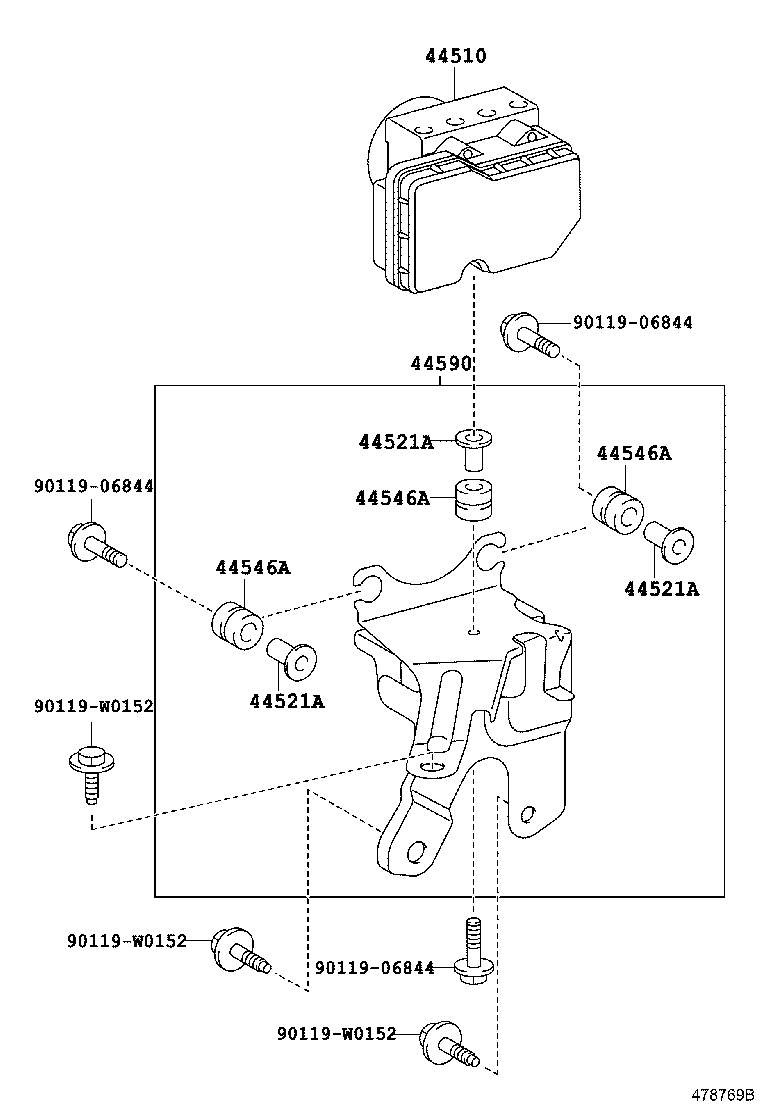

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 90119W0152 90119W0152 90119W0152
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52D00

NCP131

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP131

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP131

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP131

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP131

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP131

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP131

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52210

NCP131

 1
Common parts
90119-06844
90119-W0152
