NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

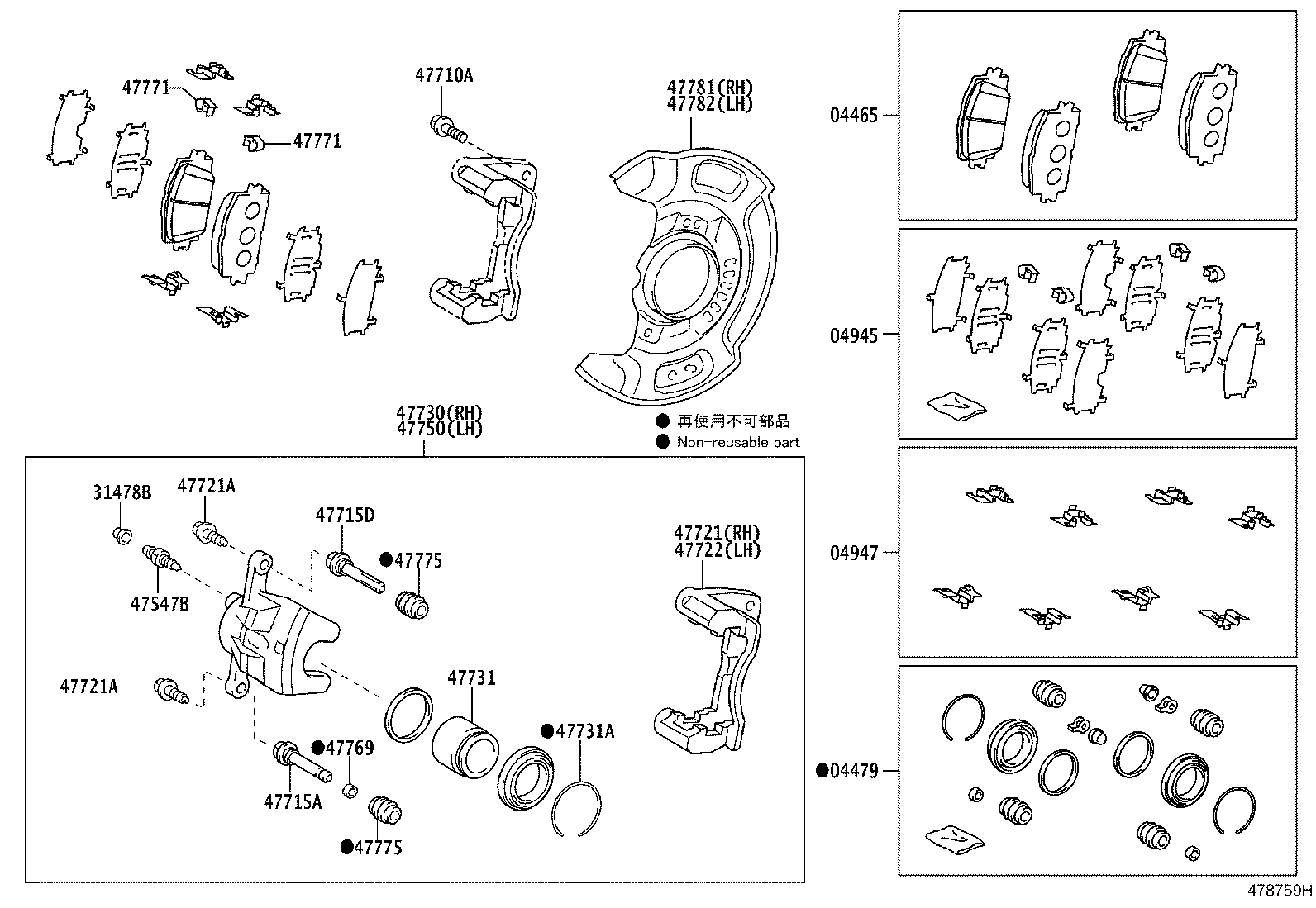

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47731A 47750 47769 47771 47771 47775 47775 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-52260

NCP131

MARK AK PA563H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-52070

NCP131

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-52130

NCP131

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-42050

NCP131

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

NCP131

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

NCP131

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

NCP131

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-12A10

NCP131

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-52190

NCP131

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-52191

NCP131

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

NCP131

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

NCP131

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-52191

NCP131

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-52191

NCP131

 1
47731 - PISTON, FRONT DISC BRAKE
47731-52190

NCP131

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-52191

NCP131

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

NCP131

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

NCP131

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

NCP131

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-52190

NCP131

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-52190

NCP131

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-52030

NCP131

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-52030

NCP131

 1
