NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1305- )

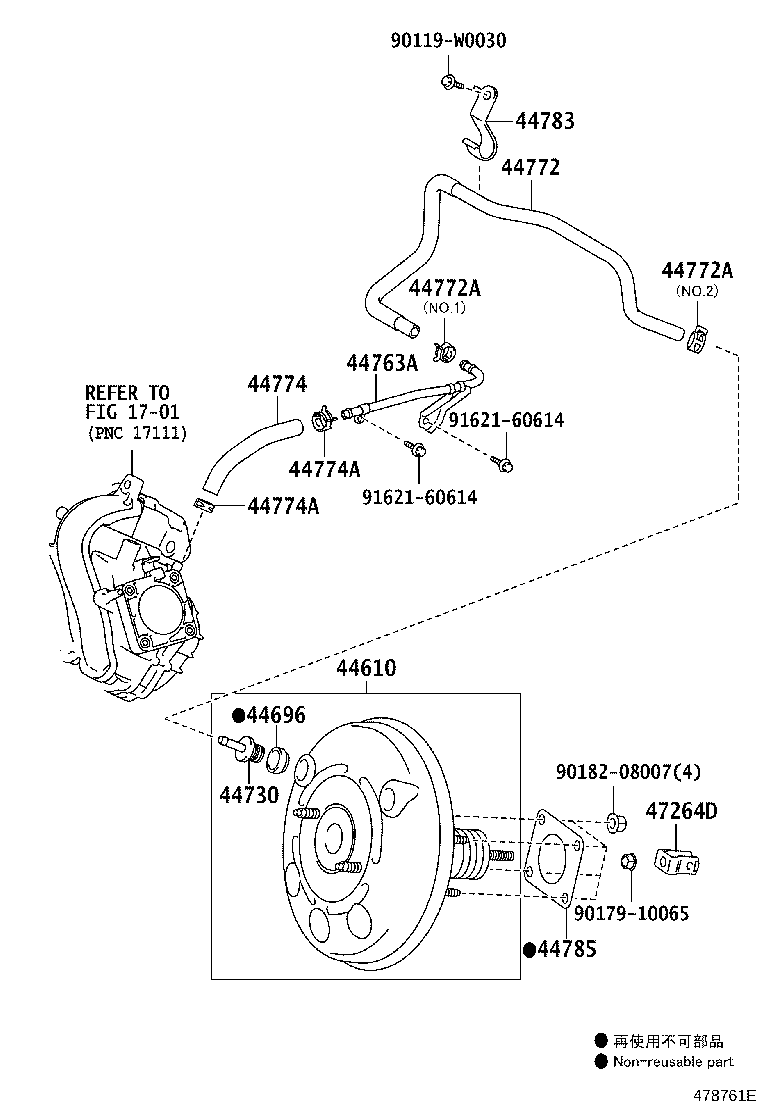

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52B50 |
NCP131 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NCP131 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60070 |
NCP131 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-52080 |
NCP131 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-52180 |
NCP131 |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
NCP131 NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
NCP131 NO.2:REFER ILLUST. |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
NCP131 NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
NCP131 NO.2:REFER ILLUST. |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 95446-09130 |
NCP131 |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NCP131 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NCP131 |
2 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-52070 |
NCP131 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NCP131 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52040 |
NCP131 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90179-10065 | ||||
| 90182-08007 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 1701 | ||||
