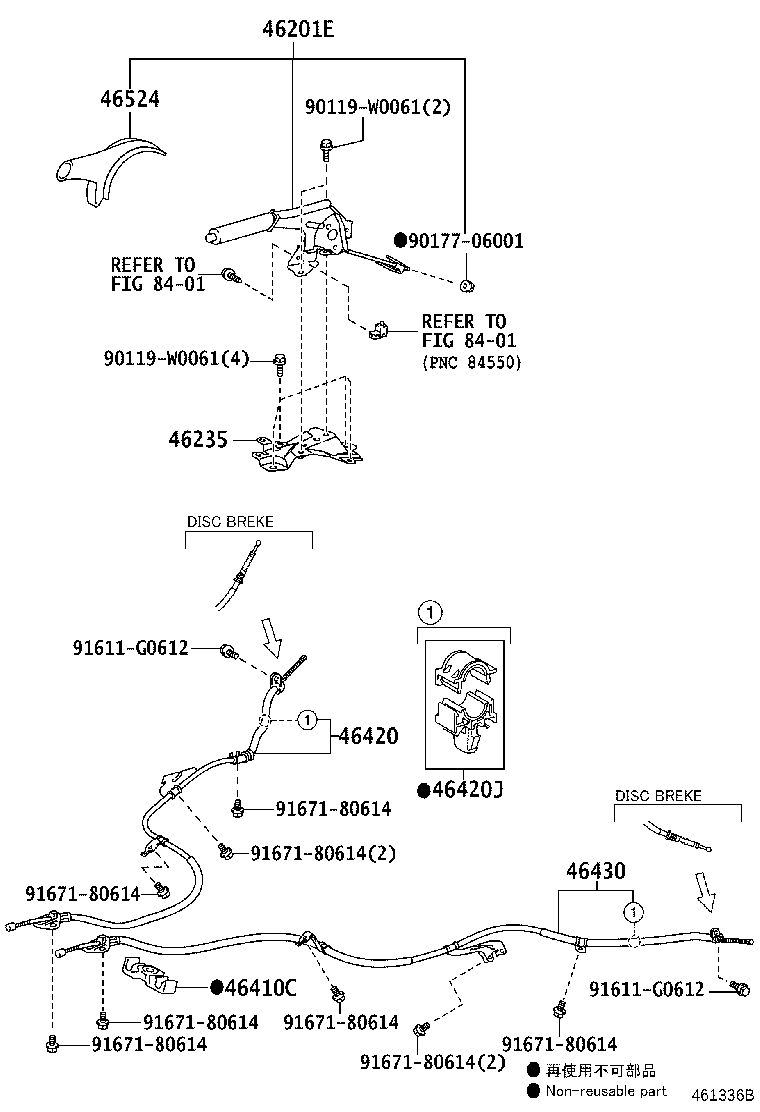

Toyota Yaris (frp) NCP131 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-52130C0	NCP131 BLACK,TRIM1#	05/2013 - 07/2014	1
46201-52140C0	NCP131..USA REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING),BLACK,TRIM1#	05/2013 - 07/2014	1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-52040	NCP131	05/2013 - 07/2014	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D010	NCP131	05/2013 - 07/2014	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52380	NCP131	05/2013 - 07/2014	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030	NCP131	05/2013 - 07/2014	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52370	NCP131	05/2013 - 07/2014	1
46524 - COVER, PARKING BRAKE DUST
46524-52050C0	NCP131 BLACK,TRIM1#	05/2013 - 07/2014	1
Common parts
90119-W0061
90177-06001
91611-G0612
91671-80614
Linked diagrams
8401

NCP131L-CHMRKA (2013)
