NCP131L-CHMRKA (2013)
Toyota Yaris (Frp)
Production
May 2013
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1305-1407)

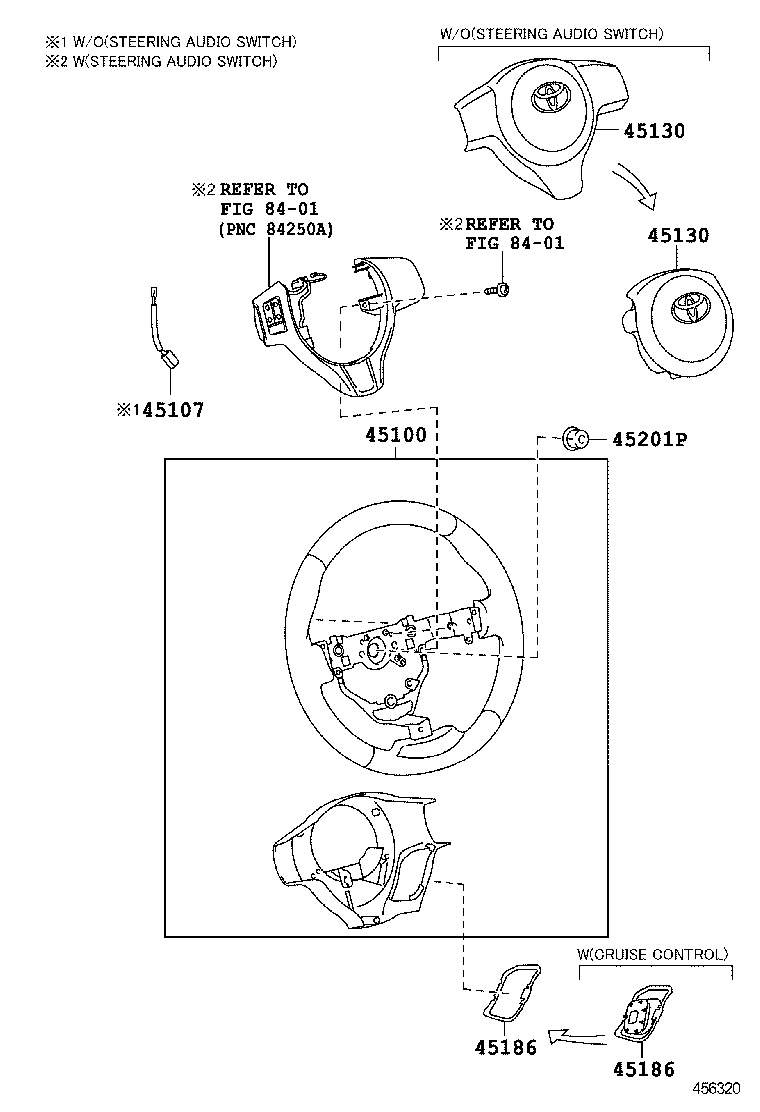

Click highlighted areas on diagram
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-52480C1 |
NCP131 3-SPOKE, URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-52490C1 |
NCP131..USA 3-SPOKE, LEATHER,STEERING WHEEL-LEATHER,WITH(SRS AIR BAG),BLACK,TRIM1# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-52010 |
NCP131 CRUISE CONTROL-WITH |
1 | ||
| 45107-52010 |
NCP131..USA CRUISE CONTROL-WITH&STEERING SWITCH-WITH(AUDIO) |
1 | ||
| 45107-52010 |
NCP131..USA STEERING SWITCH-WITH(AUDIO) |
1 | ||
| 45107-52010 |
NCP131 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-52600C1 |
NCP131 BLACK,TRIM1# |
1 | ||
| 45130-52610C1 |
NCP131..USA STEERING SWITCH-WITH(AUDIO),BLACK,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-52600C1 |
NCP131 BLACK,TRIM1# |
1 | ||
| 45130-52610C1 |
NCP131..USA STEERING SWITCH-WITH(AUDIO),BLACK,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-52020C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 45186-52030C0 |
NCP131 CRUISE CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-52020C0 |
NCP131 BLACK,TRIM1# |
1 | ||
| 45186-52030C0 |
NCP131 CRUISE CONTROL-WITH,BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NCP131 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
