NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )5F

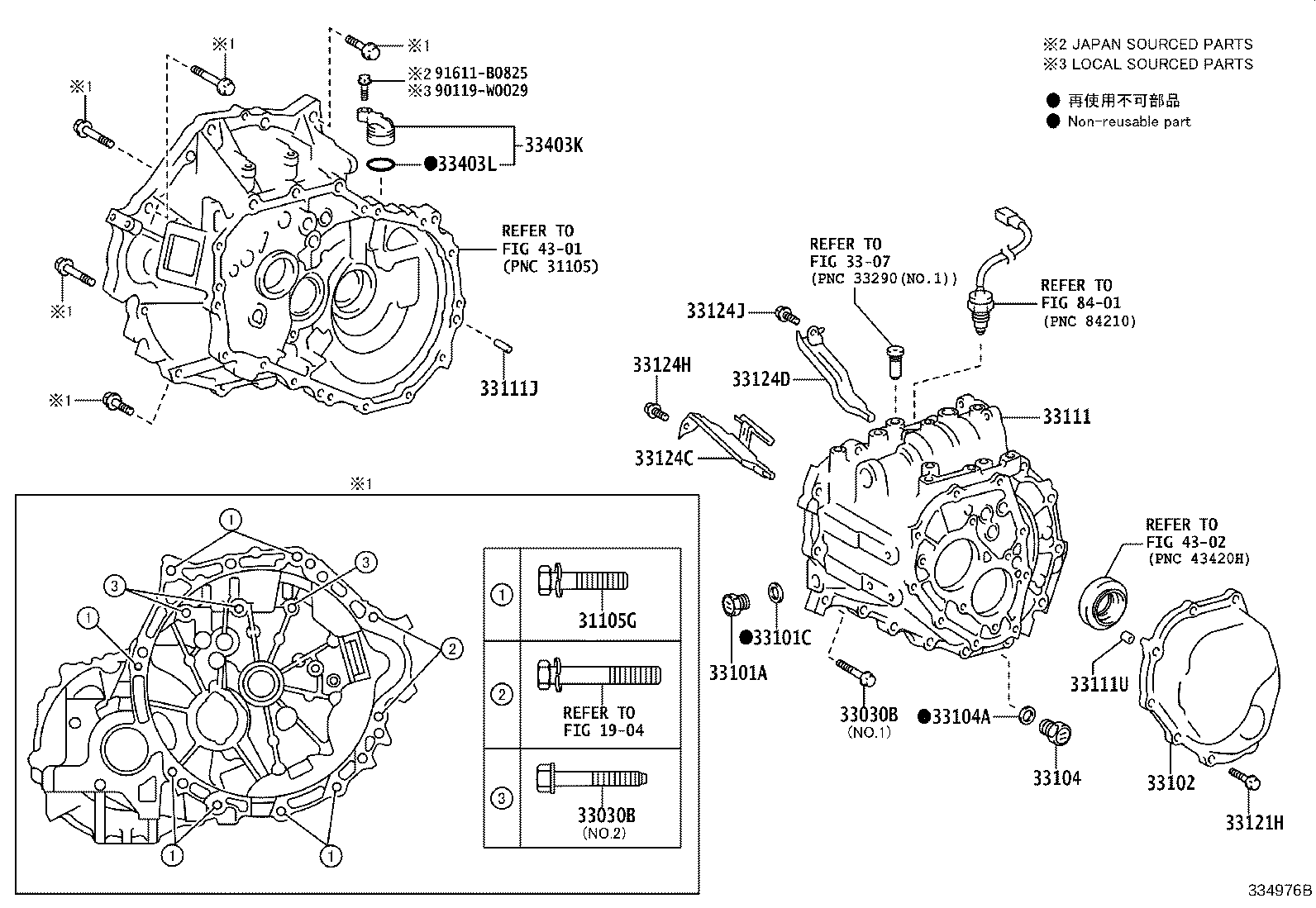

Click highlighted areas on diagram

C50

diagram 1904 31105G 33030B 33030B 3307 33101A 33101C 33102 33104 33104A 33111 33111J 33111U 33121H 33124C 33124D 33124H 33124J 33403K 33403L 4301 4302 8401 90119W0029 91611B0825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61045

NCP131..5F

*10-1.25PX45-30,(J)

 7
90119-W0155

NCP131..5F

*10-1.25PX45-30,(L)

 7
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08353

NCP131..5F

*8-1.25PX50-30,NO.1:REFER ILLUST.

 13
90105-08430

NCP131..5F

*8-1.25PX45-27.5,NO.2:REFER ILLUST.

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08353

NCP131..5F

*8-1.25PX50-30,NO.1:REFER ILLUST.

 13
90105-08430

NCP131..5F

*8-1.25PX45-27.5,NO.2:REFER ILLUST.

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NCP131..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

NCP131..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021

NCP131..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18033

NCP131..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

NCP131..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-12260

NCP131..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NCP131..5F

L=23,OD=8

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

NCP131..5F

L=11,OD=11

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08429

NCP131..5F

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

NCP131..5F

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

NCP131..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820

NCP131..5F

 1
33124J - BOLT, W/WASHER
91611-G0820

NCP131..5F

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NCP131..5F

 1
33403L - RING, O
96711-24030

NCP131..5F

 1
Common parts
90119-W0029
91611-B0825
Linked diagrams
1904
3307
4301
4302
8401
