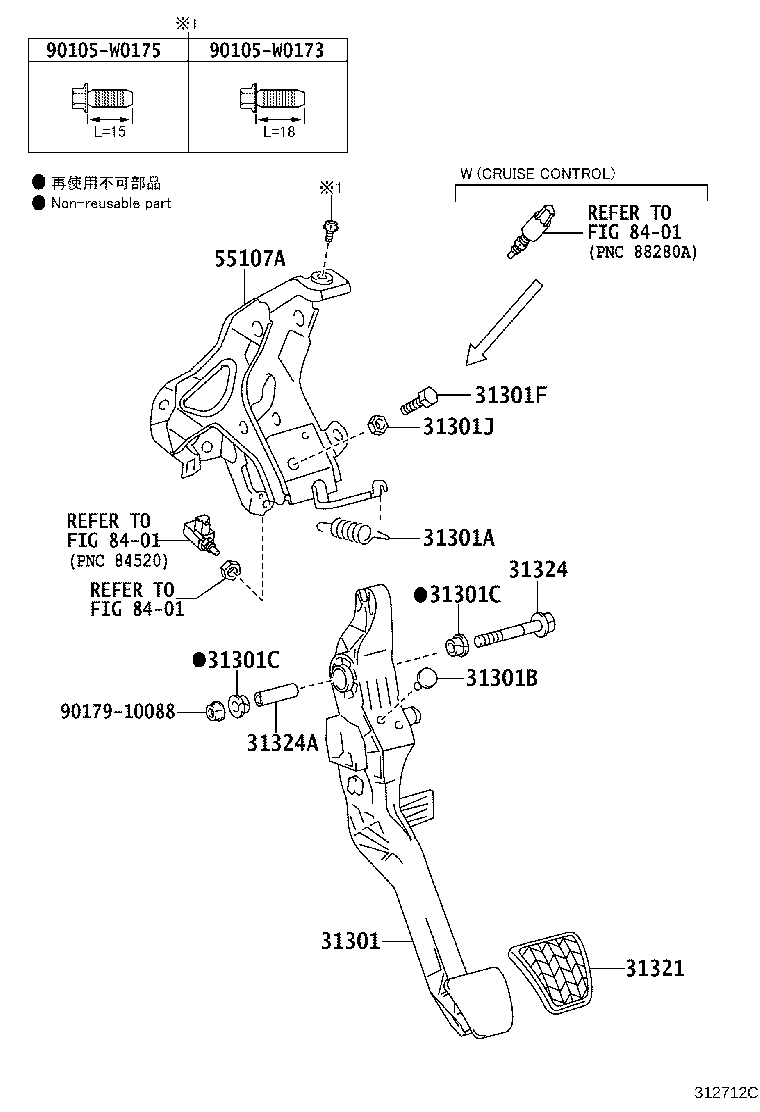

Toyota Yaris (frp) NCP131 CLUTCH PEDAL & FLEXIBLE HOSE

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31311-52050	NCP131..5F	05/2013 - 07/2014	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047	NCP131..5F	05/2013 - 07/2014	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	NCP131..5F	05/2013 - 07/2014	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NCP131..5F	05/2013 - 07/2014	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	NCP131..5F	05/2013 - 07/2014	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	NCP131..5F	05/2013 - 07/2014	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000	NCP131..5F	05/2013 - 07/2014	1
31321 - PAD, CLUTCH PEDAL
31321-52010	NCP131..5F	05/2013 - 07/2014	1
31324 - SHAFT, CLUTCH PEDAL
90105-10563	NCP131..5F	05/2013 - 07/2014	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	NCP131..5F	05/2013 - 07/2014	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-52220	NCP131..5F	05/2013 - 07/2014	1
Common parts
90105-W0173
90105-W0175
90179-10088
Linked diagrams
8401

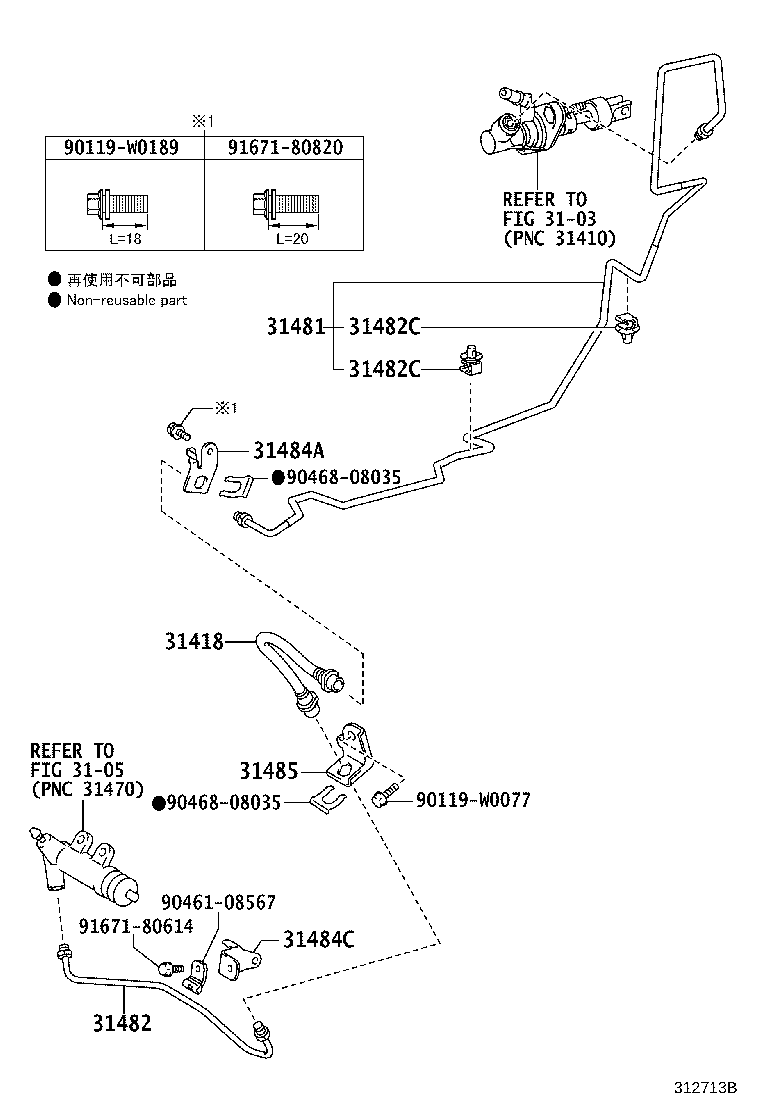

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02E09	NCP131..5F	05/2013 - 07/2014	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D270	NCP131..5F	05/2013 - 07/2014	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0D250	NCP131..5F	05/2013 - 07/2014	1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17	NCP131..5F	05/2013 - 07/2014	2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17	NCP131..5F	05/2013 - 07/2014	2
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090	NCP131..5F	05/2013 - 07/2014	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150	NCP131..5F	05/2013 - 07/2014	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52050	NCP131..5F	05/2013 - 07/2014	1
Common parts
90119-W0077
90119-W0189
90461-08567
90468-08035
91671-80614
91671-80820
Linked diagrams
3103
3105

NCP131L-CHMRKA (2013)
