NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305-1407)

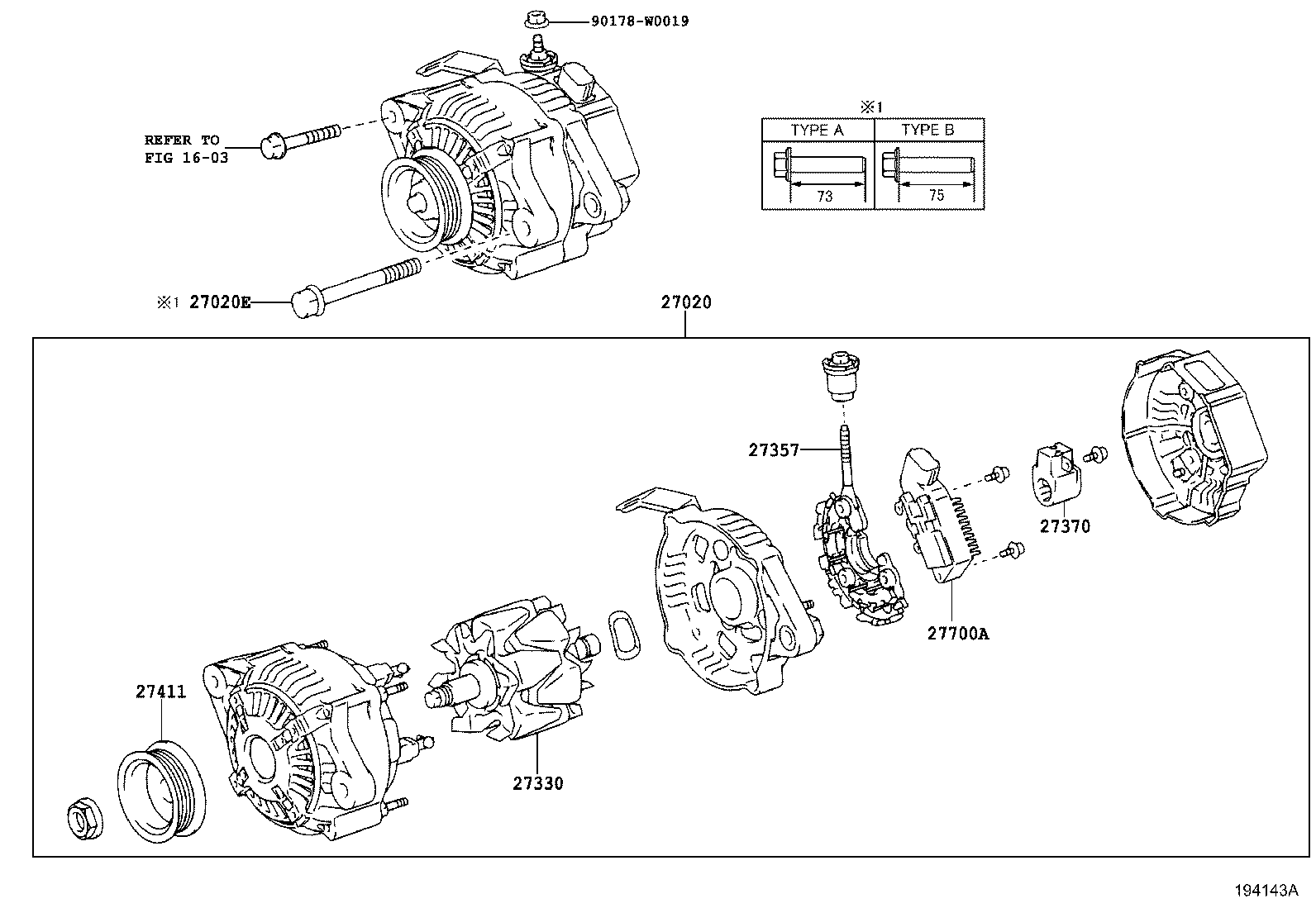

Click highlighted areas on diagram

12V 80A

diagram 1603 27020 27020E 27330 27357 27370 27411 27700A 90178W0019
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-21151

1NZFE..NCP131

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-W0113

1NZFE..NCP131

TYPE B:REFER ILLUST.

 1
90105-10075

1NZFE..NCP131

TYPE A:REFER ILLUST.

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-30130

1NZFE..NCP131

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200

1NZFE..NCP131

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-23120

1NZFE..NCP131

 1
27411 - PULLEY, ALTERNATOR
27411-70140

1NZFE..NCP131

 1
27700A - REGULATOR ASSY, GENERATOR
27700-21050

1NZFE..NCP131

 1
Common parts
90178-W0019
Linked diagrams
1603
