NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

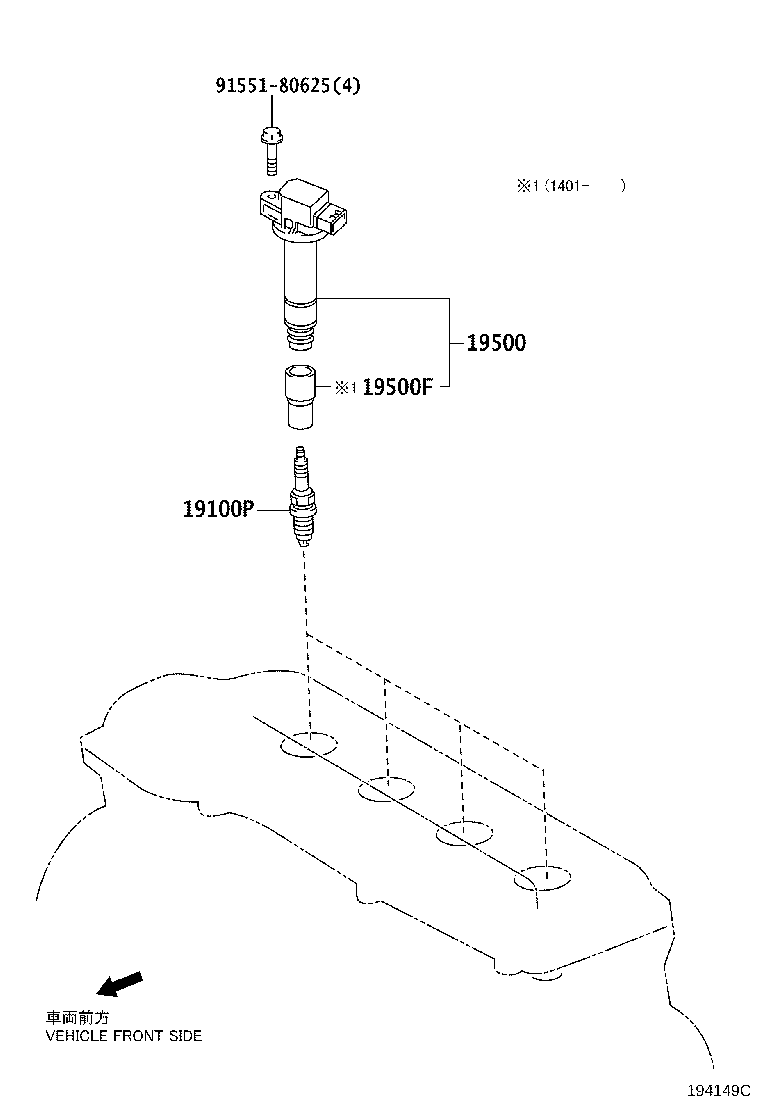

Click highlighted areas on diagram

diagram 19100P 19500 19500F 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01240

1NZFE..NCP131

SK16R11

 4
19500 - COIL ASSY, IGNITION
90919-02265

1NZFE..NCP131

 4
19500F - CAP, PLUG
90919-11009

1NZFE..NCP131

 4
Common parts
91551-80625
