NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

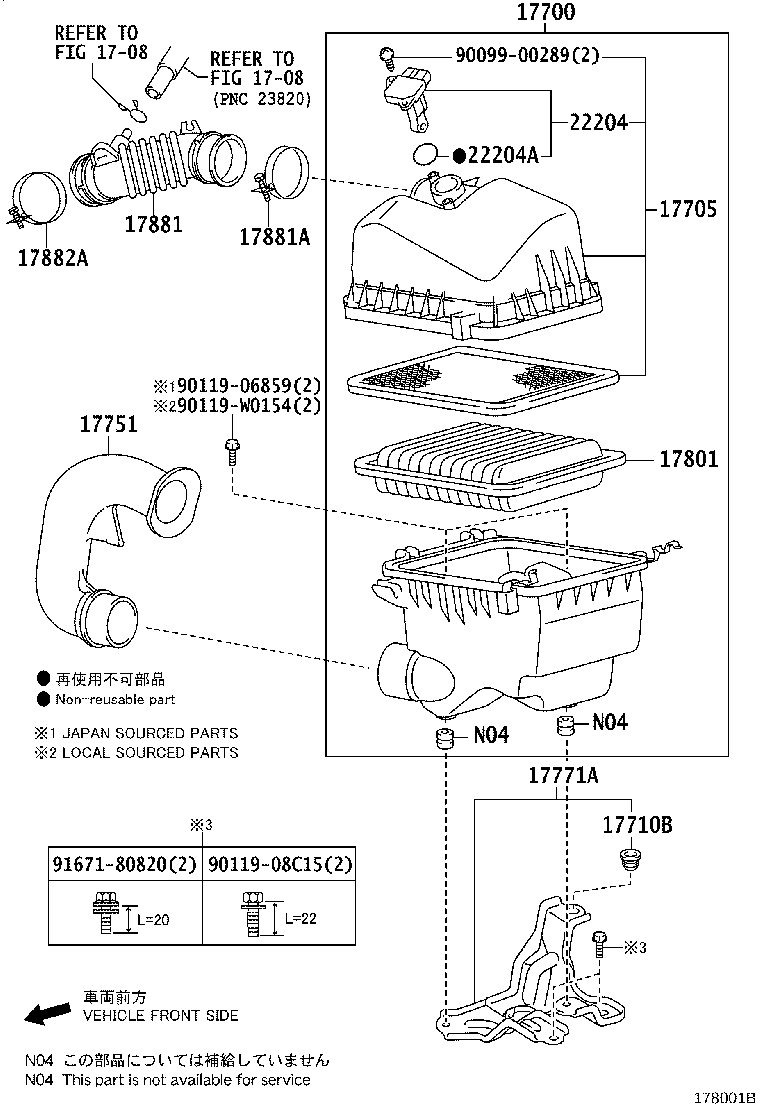

Click highlighted areas on diagram

diagram 1708 1708 17700 17705 17710B 17751 17771A 17801 17881 17881A 17882A 22204 22204A 9009900289 9011906859 9011908C15 90119W0154 9167180820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-21130

1NZFE..NCP131

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-21100

1NZFE..NCP131

 1
17710B - GROMMET
90480-18006

1NZFE..NCP131

 1
17751 - INLET, AIR CLEANER, NO.1
17751-21160

1NZFE..NCP131

 1
17771A - BRACKET, AIR CLEANER
17771-21050

1NZFE..NCP131

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

1NZFE..NCP131

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-21091

1NZFE..NCP131

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

1NZFE..NCP131

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690

1NZFE..NCP131

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

1NZFE..NCP131

(J)

 1
22204-0C020

1NZFE..NCP131

(L)

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

1NZFE..NCP131

 1
Common parts
90099-00289
90119-06859
90119-08C15
90119-W0154
91671-80820
Linked diagrams
1708
