NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

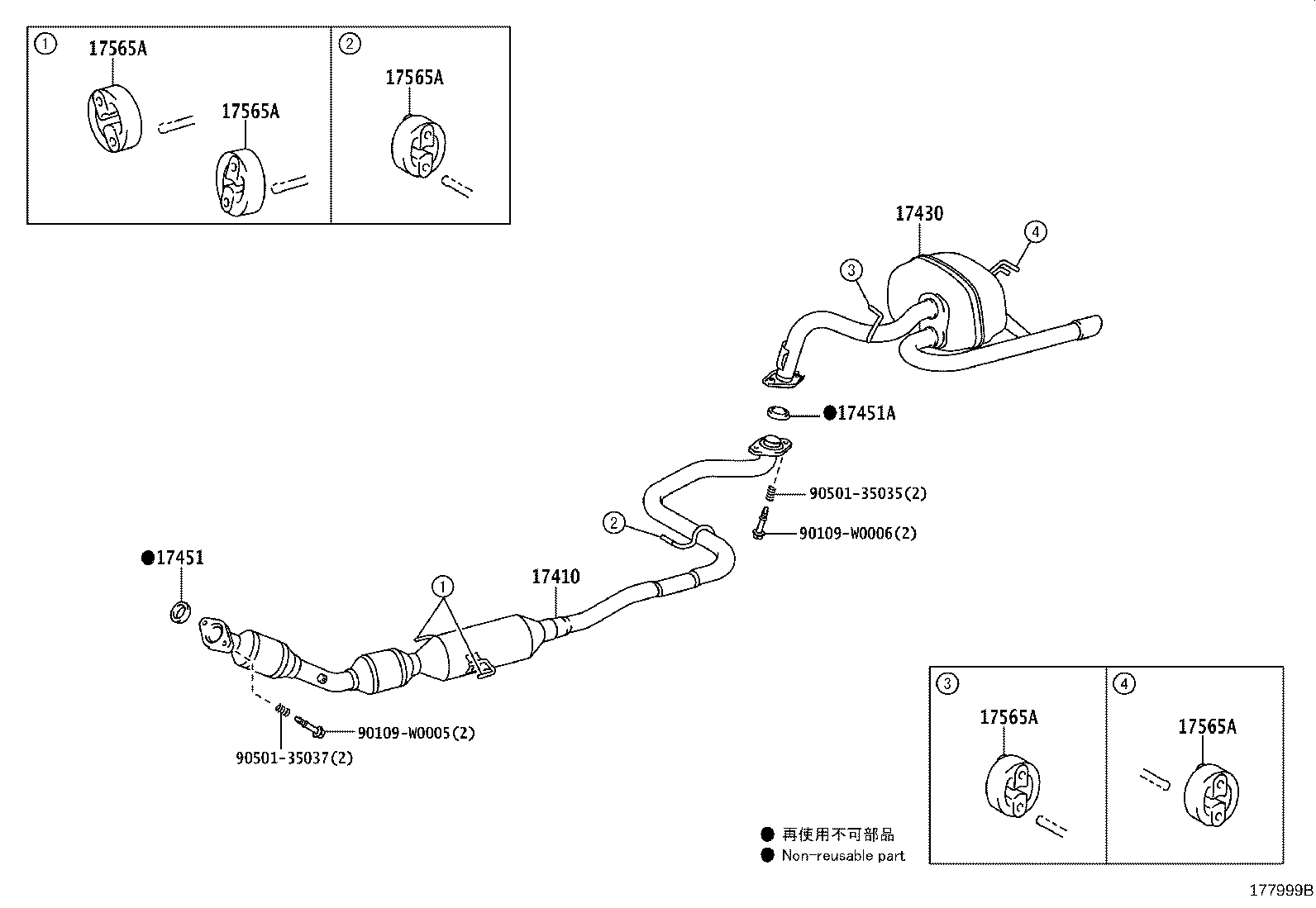

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17565A 17565A 17565A 17565A 17565A 90109W0005 90109W0006 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0M280

1NZFE..NCP131

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0M250

1NZFE..NCP131

 1
17451 - GASKET, EXHAUST PIPE
17451-0J030

1NZFE..NCP131

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-0J022

1NZFE..NCP131

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1NZFE..NCP131

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1NZFE..NCP131

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1NZFE..NCP131

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1NZFE..NCP131

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1NZFE..NCP131

 5
Common parts
90109-W0005
90109-W0006
90501-35035
90501-35037
