NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

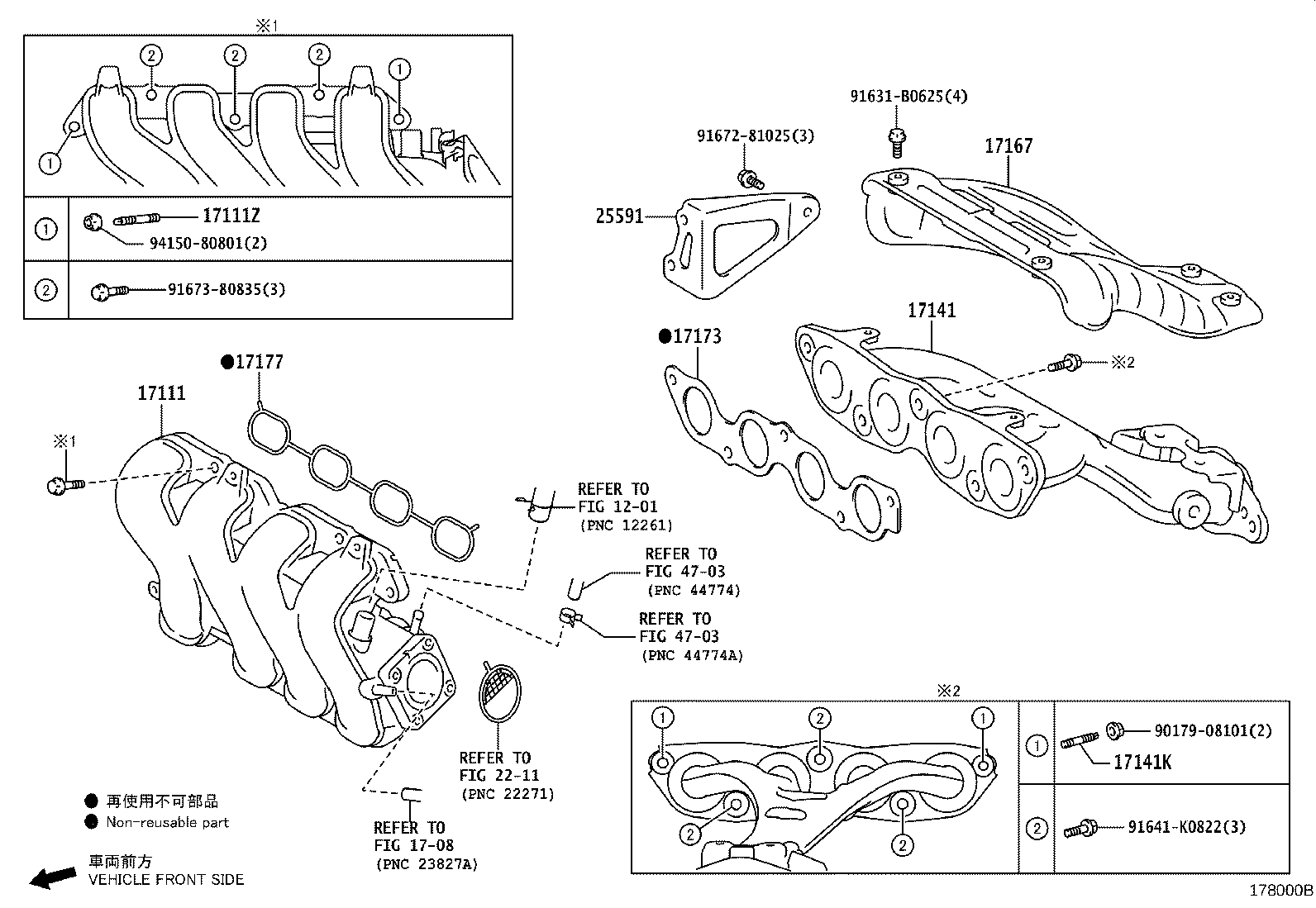

Click highlighted areas on diagram

diagram 1201 1708 17111 17111Z 17141 17141K 17167 17173 17177 2211 25591 4703 4703 9017908101 91631B0625 91641K0822 9167281025 9167380835 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-21080

1NZFE..NCP131

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

1NZFE..NCP131

 2
17141 - MANIFOLD, EXHAUST
17141-21210

1NZFE..NCP131

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08037

1NZFE..NCP131

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21110

1NZFE..NCP131

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020

1NZFE..NCP131

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21030

1NZFE..NCP131

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21060

1NZFE..NCP131

 1
Common parts
90179-08101
91631-B0625
91641-K0822
91672-81025
91673-80835
94150-80801
Linked diagrams
1201
1708
2211
4703
