NCP131L-CHMRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1305- )

Click highlighted areas on diagram

RADIATOR SIDE

diagram 1104 16361 16363 16400 16400B 16400F 16470A 16470B 16471 16502 16520A 16522 16523A 16535 16571C 16571D 16571D 16572D 16572E 16572E 16573B 16573C 16573C 16711 7403 9009904119 9009905164 91631B0616 9415180600
Part # Description Qty Price
16361 - FAN
16361-21090

1NZFE..NCP131

(J)

 1
16361-0M140

1NZFE..NCP131

(L)

 1
16363 - MOTOR, COOLING FAN
16363-0G050

1NZFE..NCP131

(L)

 1
16363-28160

1NZFE..NCP131

(J)

 1
16400 - RADIATOR ASSY
16400-21270

1NZFE..NCP131..5F

MARK=2127

 1
16400-0M320

1NZFE..NCP131..5F

MARK=0M32

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280

1NZFE..NCP131..5F

PNC 16400=MARK 2127

 1
16417-0Q040

1NZFE..NCP131..5F

PNC 16400=MARK 0M32

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1NZFE..NCP131

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-21200

1NZFE..NCP131

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1NZFE..NCP131

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-23030

1NZFE..NCP131

 1
16502 - FILLER SUB-ASSY, WATER
16502-21080

1NZFE..NCP131

 1
16520A - CAP SUB-ASSY, WATER FILLER
16401-31520

1NZFE..NCP131

 1
16522 - BRACKET, WATER FILLER
16522-21010

1NZFE..NCP131

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0Q020

1NZFE..NCP131

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-W0005

1NZFE..NCP131

 2
16571C - HOSE, RADIATOR, NO.1
16571-21120

1NZFE..NCP131

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-W0011

1NZFE..NCP131

NO.2:REFER ILLUST.

 1
96136-43901

1NZFE..NCP131

NO.1:REFER ILLUST.

 1
90467-33006

1NZFE..NCP131

NO.1:REFER ILLUST.

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-W0011

1NZFE..NCP131

NO.2:REFER ILLUST.

 1
96136-43901

1NZFE..NCP131

NO.1:REFER ILLUST.

 1
90467-33006

1NZFE..NCP131

NO.1:REFER ILLUST.

 1
16572D - HOSE, RADIATOR, NO.2
16572-21090

1NZFE..NCP131

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0011

1NZFE..NCP131

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0011

1NZFE..NCP131

 2
16573B - HOSE, RADIATOR, NO.3
16573-21060

1NZFE..NCP131

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-W0011

1NZFE..NCP131

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-W0011

1NZFE..NCP131

 2
16711 - SHROUD, FAN
16711-0M150

1NZFE..NCP131

(L)

 1
16711-21110

1NZFE..NCP131

(J)

 1
Common parts
90099-04119
90099-05164
91631-B0616
94151-80600
Linked diagrams
1104
7403

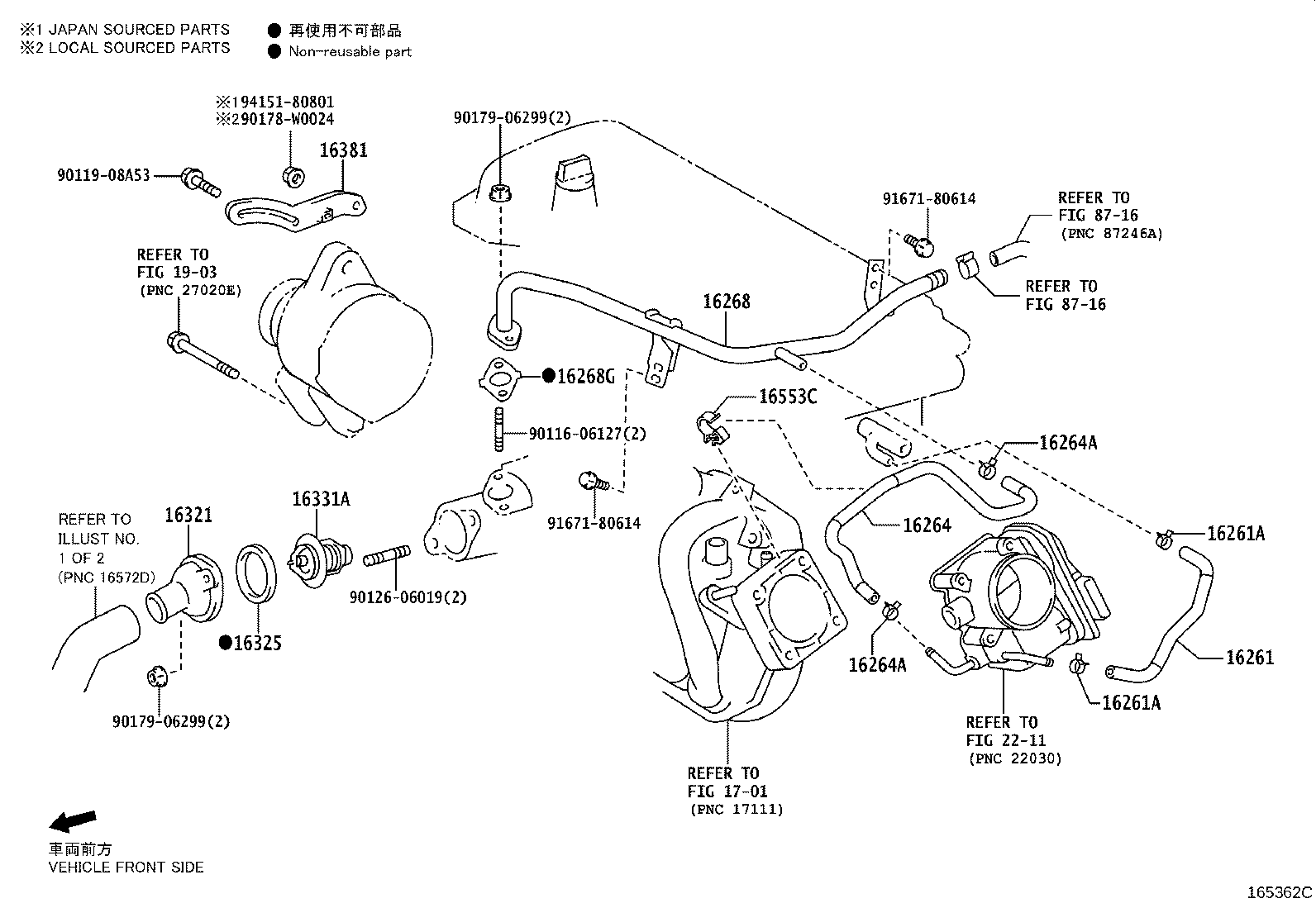

ILLUST NO. 2 OF 2(1305- )

Click highlighted areas on diagram

ENGINE SIDE

diagram 16261 16261A 16261A 16264 16264A 16264A 16268 16268G 16321 16325 16331A 16381 16553C 1701 1903 2211 8716 8716 9011606127 9011908A53 9012606019 90178W0024 9017906299 9017906299 9167180614 9167180614 9415180801
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-21090

1NZFE..NCP131

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501

1NZFE..NCP131

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501

1NZFE..NCP131

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-21070

1NZFE..NCP131

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

1NZFE..NCP131

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

1NZFE..NCP131

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-21022

1NZFE..NCP131

 1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-21021

1NZFE..NCP131

 1
16321 - INLET, WATER
16321-21020

1NZFE..NCP131

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

1NZFE..NCP131

 1
16331A - THERMOSTAT
90916-03093

1NZFE..NCP131

*WAX 82-95

 1
16381 - BAR, FAN BELT ADJUSTING
16381-21030

1NZFE..NCP131

 1
16553C - CLAMP, HOSE
16581-21010

1NZFE..NCP131

 1
Common parts
90116-06127
90119-08A53
90126-06019
90178-W0024
90179-06299
91671-80614
94151-80801
Linked diagrams
1701
1903
2211
8716
