NCP131L-CGPRKK (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

Click highlighted areas on diagram

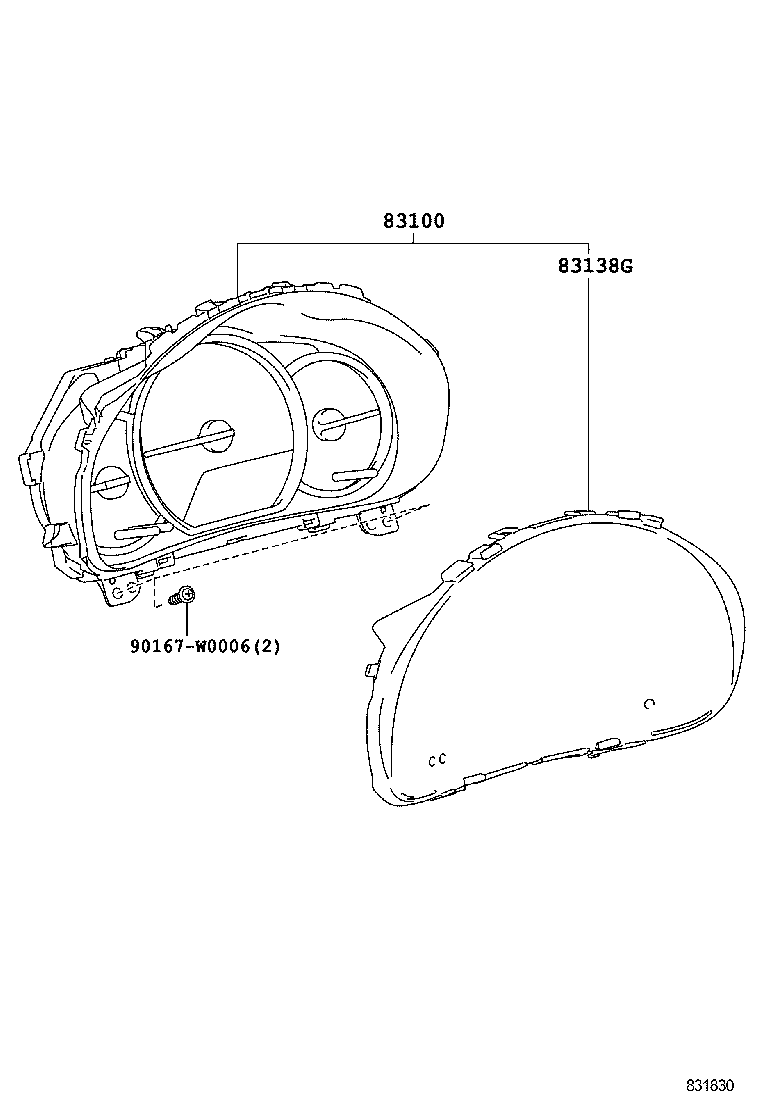

diagram 83100 83138G 90167W0006
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-5CA00

NCP131..CND

SPEEDOMETER-ANALOGUE KM/H(MAIN) & MILE,W(TACHO)

 1
83800-5CB00

NCP131..CND

 1
83138G - GLASS, COMBINATION METER
83852-5CB20

NCP131

 1
Common parts
90167-W0006
