NCP131L-CGPRKK (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

(1305- )

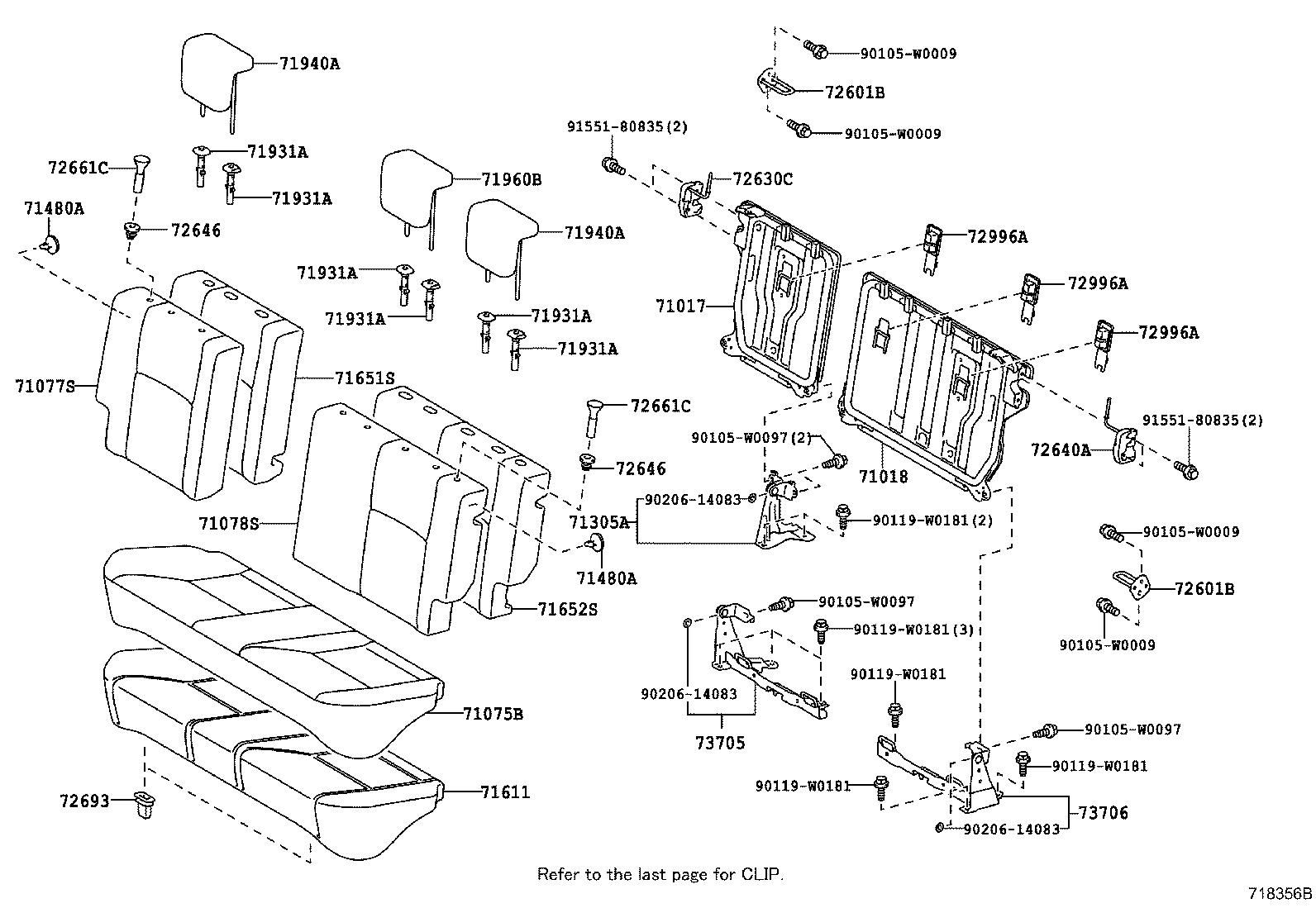

Click highlighted areas on diagram

6:4 SEPARATE TYPE

diagram 71017 71018 71075B 71077S 71078S 71305A 71480A 71480A 71611 71651S 71652S 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72601B 72601B 72630C 72640A 72646 72646 72661C 72661C 72693 72996A 72996A 72996A 73705 73706 90105W0009 90105W0009 90105W0009 90105W0009 90105W0097 90105W0097 90105W0097 90119W0181 90119W0181 90119W0181 90119W0181 90119W0181 9020614083 9020614083 9020614083 9155180835 9155180835
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-0D251

NCP131..CND

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-0D320

NCP131..CND

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0D820C0

NCP131

BLACK,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0DN30C0

NCP131..CND

BLACK,TRIM1#

 1
71077-0DN31C0

NCP131..CND

BLACK,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-0DA40C0

NCP131..CND

BLACK,TRIM1#

 1
71078-0DA41C0

NCP131..CND

BLACK,TRIM1#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-0D020

NCP131..CND

 1
71480A - CLIP (FOR REAR SEAT BACK)
90467-05161C0

NCP131..CND

BLACK,TRIM1#

 5
71480A - CLIP (FOR REAR SEAT BACK)
90467-05161C0

NCP131..CND

BLACK,TRIM1#

 5
71611 - PAD, REAR SEAT CUSHION
71503-0D190

NCP131

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-0D220

NCP131..CND

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-0D140

NCP131..CND

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 3
71930-44020C0

NCP131

W(LOCK),BLACK,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 3
71930-44020C0

NCP131

W(LOCK),BLACK,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 3
71930-44020C0

NCP131

W(LOCK),BLACK,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 3
71930-44020C0

NCP131

W(LOCK),BLACK,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 3
71930-44020C0

NCP131

W(LOCK),BLACK,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 3
71930-44020C0

NCP131

W(LOCK),BLACK,TRIM1#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-0DC70C0

NCP131

BLACK,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0DC70C0

NCP131

BLACK,TRIM1#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0D150C0

NCP131

BLACK,TRIM1#

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-0D030

NCP131

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-0D030

NCP131

 2
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-52170

NCP131

 1
72630-0D150

NCP131..CND

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-0D150

NCP131..CND

 1
72640-52170

NCP131

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-0D021C0

NCP131..CND

BLACK,TRIM1#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-0D021C0

NCP131..CND

BLACK,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-0D041C0

NCP131..CND

BLACK,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-0D041C0

NCP131..CND

BLACK,TRIM1#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-0D040

NCP131

 2
72996A - COVER, REAR SEAT BACK
72996-0D010C0

NCP131

BLACK,TRIM1#

 3
72996A - COVER, REAR SEAT BACK
72996-0D010C0

NCP131

BLACK,TRIM1#

 3
72996A - COVER, REAR SEAT BACK
72996-0D010C0

NCP131

BLACK,TRIM1#

 3
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-0D140

NCP131

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-0D010

NCP131

 1
Common parts
90105-W0009
90105-W0097
90119-W0181
90206-14083
91551-80835
