NCP131L-CGPRKA (2014)

Toyota Yaris (Frp)

Production Jul 2014 - Mar 2017
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

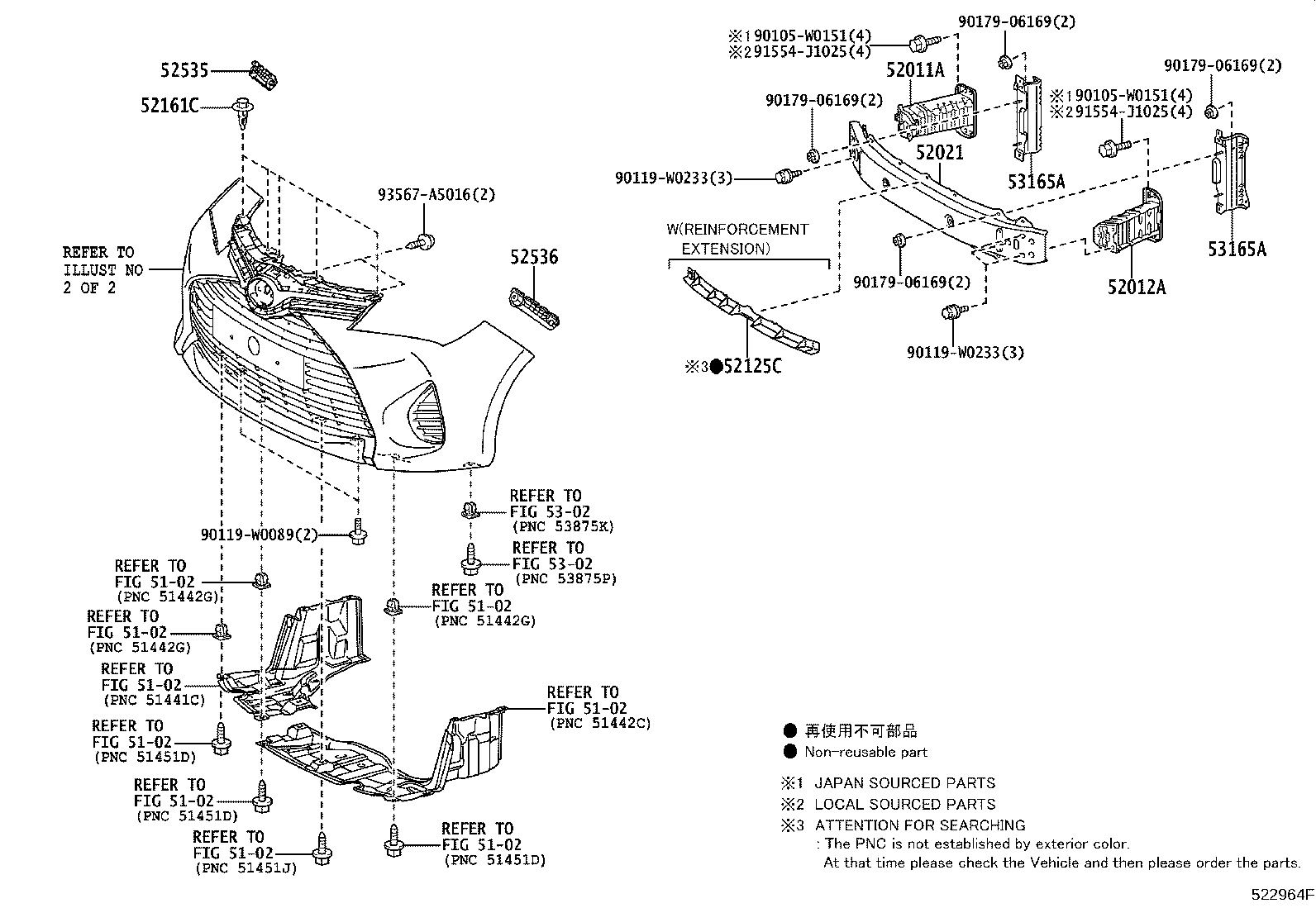

ILLUST NO. 1 OF 2(1407-1703)

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 5102 5102 5102 52011A 52012A 52021 52125C 52161C 52535 52536 5302 5302 53165A 53165A 90105W0151 90105W0151 90119W0089 90119W0233 90119W0233 9017906169 9017906169 9017906169 9017906169 91554J1025 91554J1025 93567A5016
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-52021

NCP131

 1
52011-52021

NCP131

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-52020

NCP131

 1
52012-52020

NCP131

 1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D160

NCP131..USA

 1
52125C - EXTENSION, FRONT BUMPER REINFORCEMENT
52125-0D060

NCP131..S

REFER TO ILLUST.

 1
52125-0D060

NCP131..USA

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE),REFER TO ILLUST.

 1
52161C - PIECE, FRONT BUMPER
52161-02030

NCP131

 5
52161-02030

NCP131

 7
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D090

NCP131

 1
52535-0D090

NCP131

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D090

NCP131

 1
52536-0D090

NCP131

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D070

NCP131

RH

 1
53164-0D070

NCP131

RH

 1
53165-0D050

NCP131

LH

 1
53165-0D050

NCP131

LH

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D070

NCP131

RH

 1
53164-0D070

NCP131

RH

 1
53165-0D050

NCP131

LH

 1
53165-0D050

NCP131

LH

 1
Common parts
90105-W0151
90119-W0089
90119-W0233
90179-06169
91554-J1025
93567-A5016
Linked diagrams
5102
5302

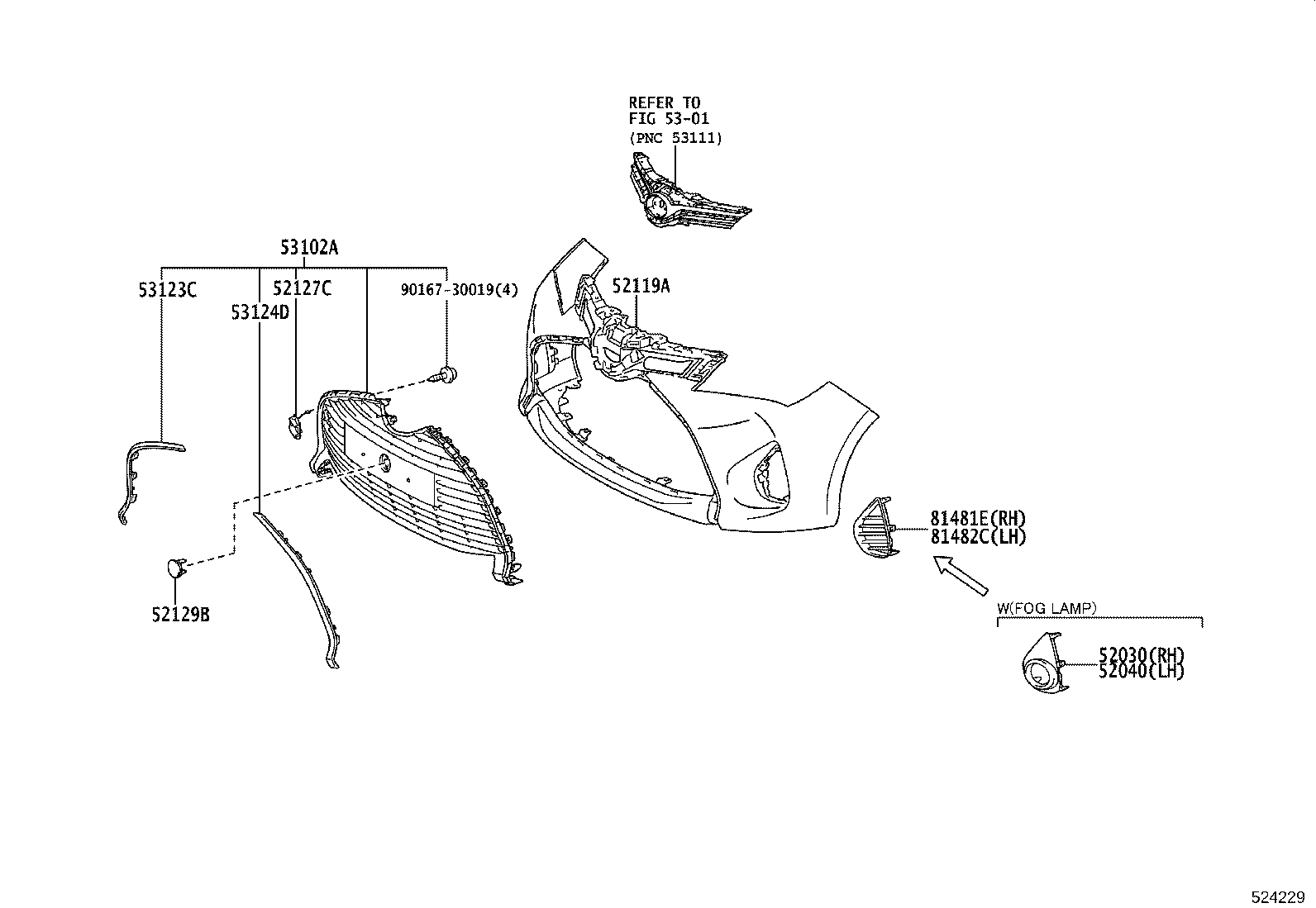

ILLUST NO. 2 OF 2(1407-1703)

Click highlighted areas on diagram

diagram 52030 52040 52119A 52127C 52129B 5301 53102A 53123C 53124D 81481E 81482C 9016730019
Part # Description Qty Price
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-0D050

NCP131..USA

PLATED,RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)&FRONT FOG LAMP-WITH

 1
52030-0D050

NCP131..S

PLATED

 1
52030-0D050

NCP131..R

PLATED,FRONT FOG LAMP-WITH

 1
52030-0D050

NCP131..USA

PLATED,SE PACKAGE&RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)&FRONT FOGLAMP-WITH

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-0D050

NCP131..S

PLATED

 1
52040-0D050

NCP131..R

PLATED,FRONT FOG LAMP-WITH

 1
52040-0D050

NCP131..USA

PLATED,SE PACKAGE&RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)&FRONT FOGLAMP-WITH

 1
52040-0D050

NCP131..USA

PLATED,RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)&FRONT FOG LAMP-WITH

 1
52119A - COVER, FRONT BUMPER
52119-0U904

NCP131

PAINT REQ.

 1
52119-0U927

NCP131

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52127-0D530

NCP131..S

 1
52127-0D917

NCP131

 1
52127-0D520

NCP131..R

 1
52127-0D530

NCP131..USA

SE PACKAGE&RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)&FRONT FOG LAMP-WITH

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-0D050

NCP131

 1
52129-0D060

NCP131

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-0D050

NCP131..USA

 1
53102-0D040

NCP131..USA

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)

 1
53102-0D060

NCP131..USA

SE PACKAGE&RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)&FRONT FOG LAMP-WITH

 1
53102-0D040

NCP131..USA

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)&FRONT FOG LAMP-WITH

 1
53102-0D060

NCP131..S

 1
53123C - MOULDING, RADIATOR GRILLE, LOWER RH
53123-0D080

NCP131..S

 1
53123-0D070

NCP131..USA

 1
53123-0D080

NCP131..USA

SE PACKAGE&RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)&FRONT FOG LAMP-WITH

 1
53123-0D060

NCP131..USA

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)&FRONT FOG LAMP-WITH

 1
53123-0D060

NCP131..USA

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)

 1
53124D - MOULDING, RADIATOR GRILLE, LOWER LH
53124-0D190

NCP131..USA

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)

 1
53124-0D210

NCP131..USA

SE PACKAGE&RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)&FRONT FOG LAMP-WITH

 1
53124-0D210

NCP131..S

 1
53124-0D190

NCP131..USA

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PLATED TYPE)&FRONT FOG LAMP-WITH

 1
53124-0D200

NCP131..USA

 1
81481E - COVER, FOG LAMP, RH
81481-0D140

NCP131

FRONT FOG & DRIVING LAMP-WITH

 1
81481-0D250

NCP131..R

 1
81481-0D130

NCP131

 1
81482C - COVER, FOG LAMP, LH
81482-0D260

NCP131..R

 1
81482-0D140

NCP131

 1
81482-0D150

NCP131

FRONT FOG & DRIVING LAMP-WITH

 1
Common parts
90167-30019
Linked diagrams
5301
