Toyota Yaris (frp) NCP131 FRONT DRIVE SHAFT

NCP131L-CGPRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

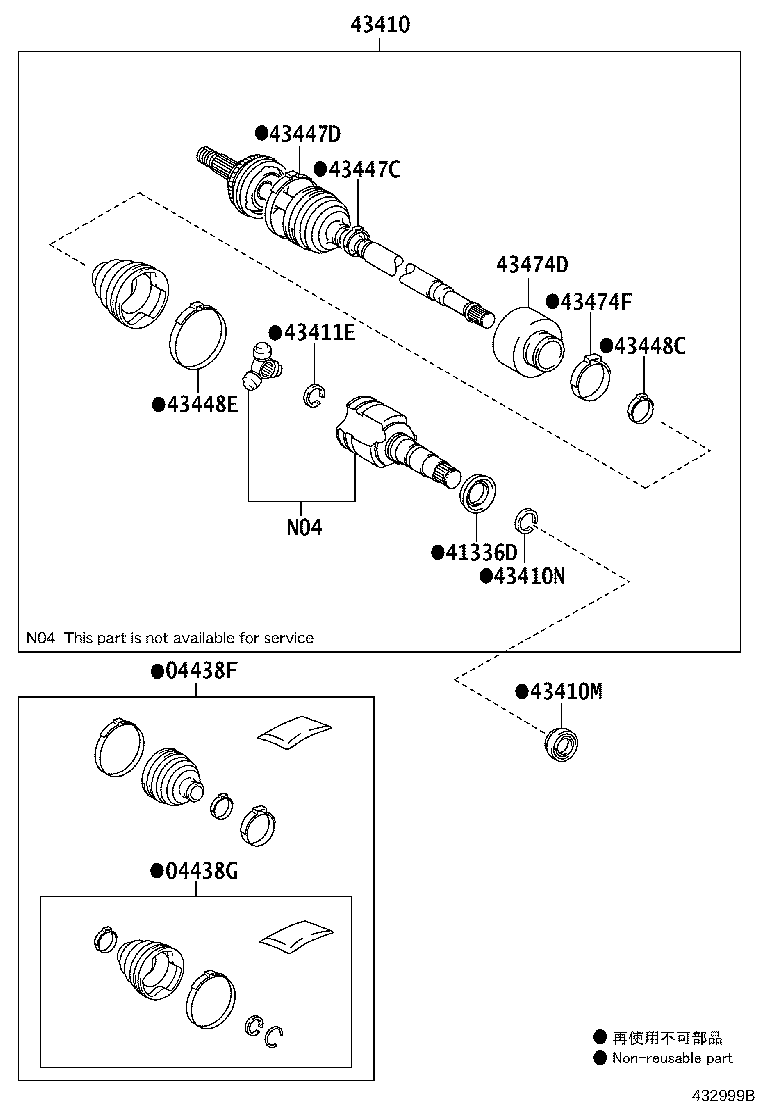

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-0D370	NCP131	09/2013 - 07/2014	1
04427-0D320	NCP131	05/2013 - 09/2013	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-0D050	NCP131	05/2013 - 07/2014	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-0H010	NCP131	05/2013 - 07/2014	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0D470	NCP131	05/2013 - 08/2013	1
43410-0D471	NCP131	09/2013 - 07/2014	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-34045	NCP131..4FC	05/2013 - 07/2014	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90080-52056	NCP131	05/2013 - 07/2014	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-0D090	NCP131	05/2013 - 07/2014	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0D260	NCP131	05/2013 - 09/2013	1
42345-0D440	NCP131	09/2013 - 07/2014	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0D250	NCP131	05/2013 - 09/2013	1
42345-0D430	NCP131	09/2013 - 07/2014	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0D210	NCP131	05/2013 - 07/2014	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0D200	NCP131	05/2013 - 07/2014	1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-0D260	NCP131	05/2013 - 07/2014	1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-0D720	NCP131	05/2013 - 07/2014	1

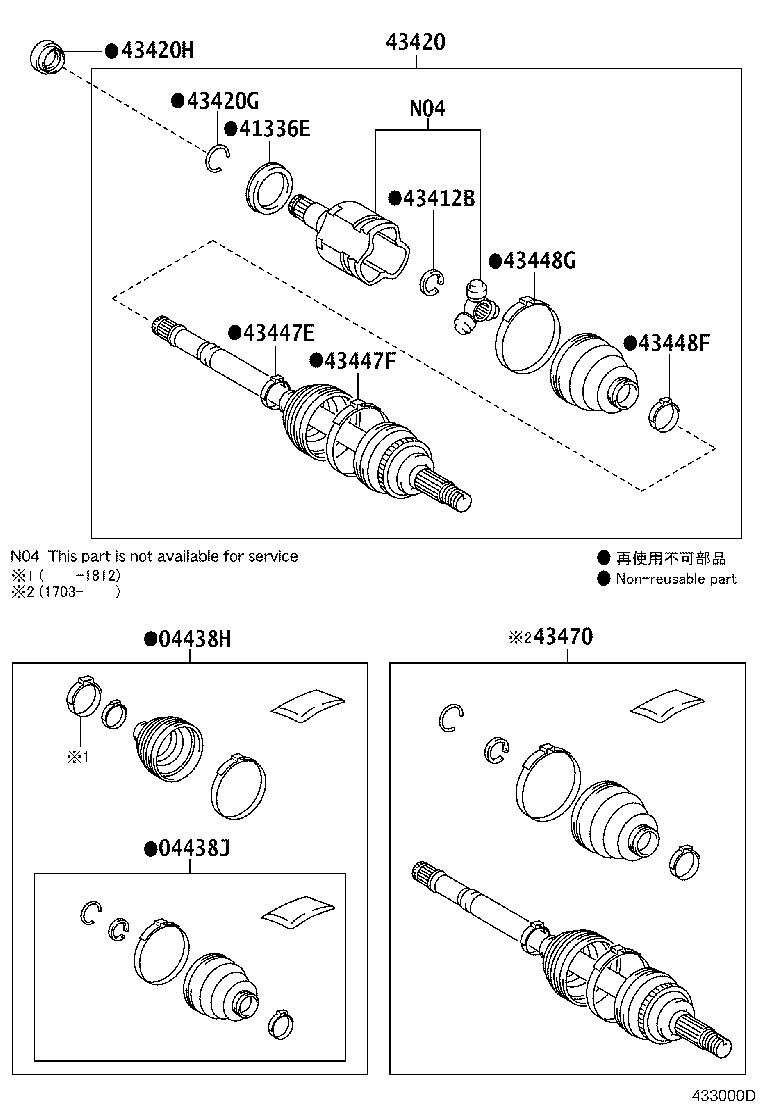

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-0D370	NCP131	09/2013 - 07/2014	1
04427-0D320	NCP131	05/2013 - 09/2013	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-0D050	NCP131	05/2013 - 07/2014	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-0H010	NCP131	05/2013 - 07/2014	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-0D090	NCP131	05/2013 - 07/2014	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0D322	NCP131	05/2013 - 08/2013	1
43420-0D450	NCP131	09/2013 - 07/2014	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90080-52056	NCP131	05/2013 - 07/2014	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-34044	NCP131..4FC	05/2013 - 07/2014	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0D260	NCP131	05/2013 - 09/2013	1
42345-0D440	NCP131	09/2013 - 07/2014	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0D430	NCP131	09/2013 - 07/2014	1
42345-0D250	NCP131	05/2013 - 09/2013	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0D210	NCP131	05/2013 - 07/2014	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0D200	NCP131	05/2013 - 07/2014	1
