NCP131L-CGPRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )

Click highlighted areas on diagram

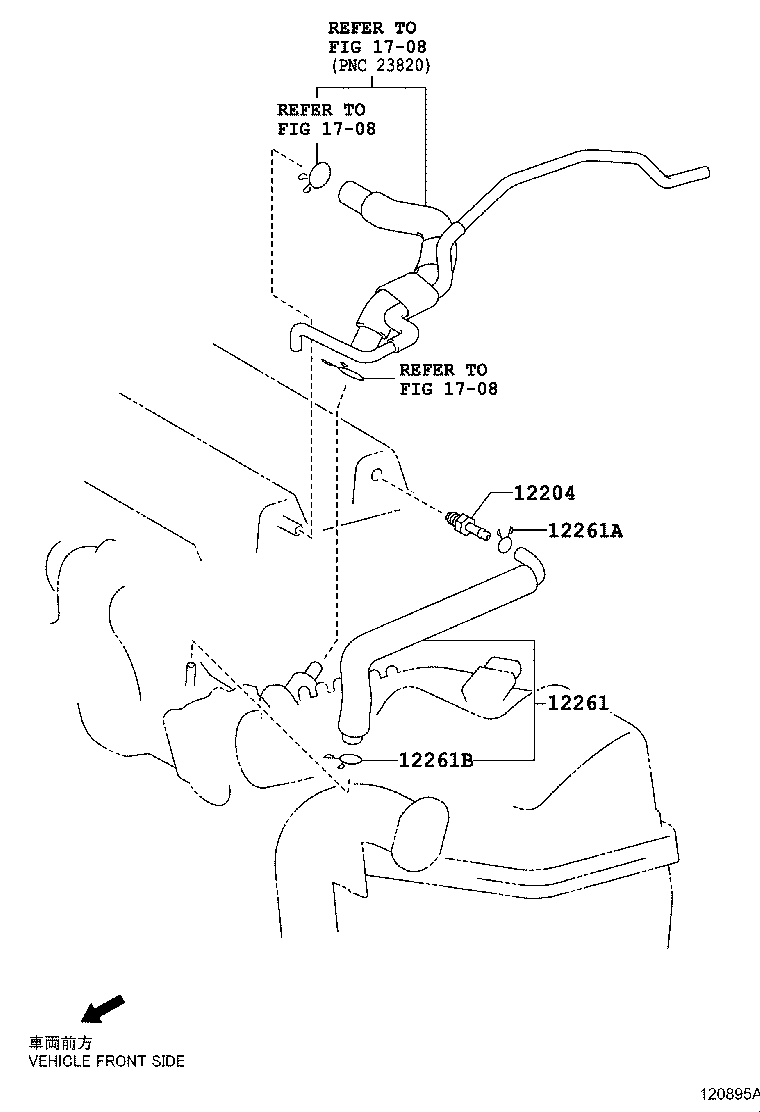

diagram 12204 12261 12261A 12261B 1708 1708 1708
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-21013

1NZFE..NCP131

 1
12261 - HOSE, VENTILATION
12261-21070

1NZFE..NCP131

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

1NZFE..NCP131

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-24038

1NZFE..NCP131

 1
Linked diagrams
1708
