NCP131L-CGPRKA (2013)

Toyota Yaris (Frp)

Production May 2013 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1305- )1NZFE..4FC

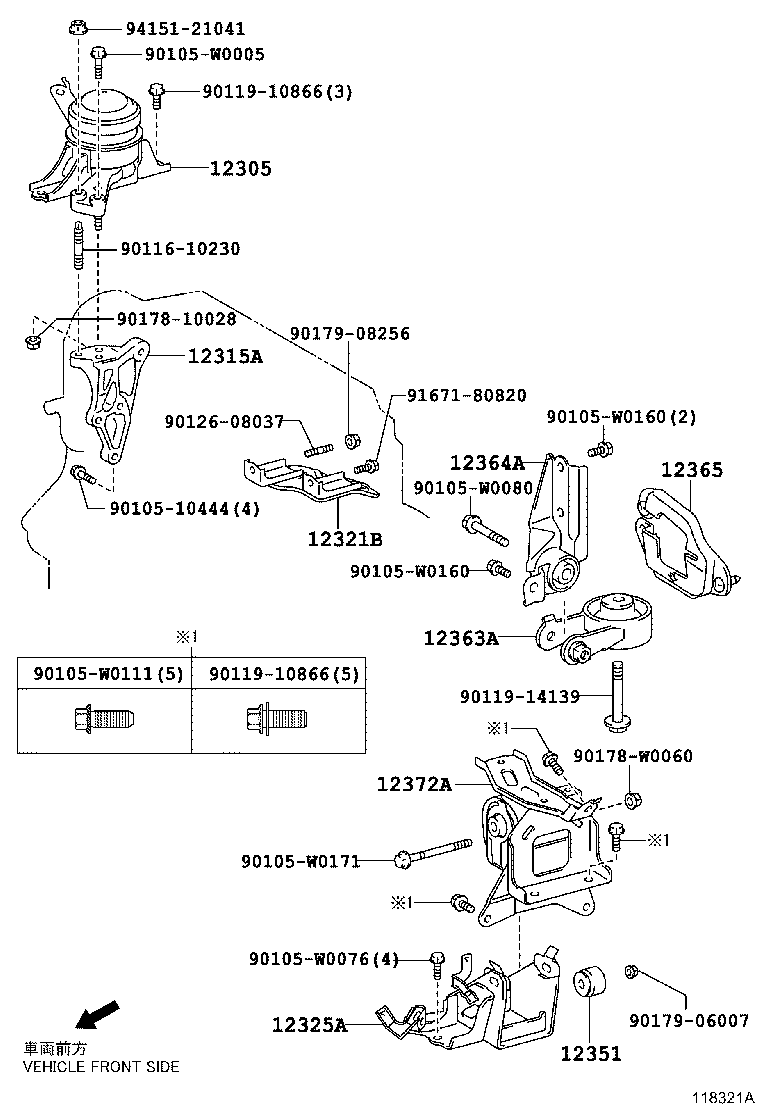

Click highlighted areas on diagram

diagram 12305 12315A 12321B 12325A 12351 12363A 12364A 12365 12372A 9010510444 90105W0005 90105W0076 90105W0080 90105W0111 90105W0160 90105W0160 90105W0171 9011610230 9011910866 9011910866 9011914139 9012608037 9017810028 90178W0060 9017906007 9017908256 9167180820 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21220

1NZFE..NCP131..4FC

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21044

1NZFE..NCP131

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52020

1NZFE..NCP131

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21190

1NZFE..NCP131..4FC

 1
12351 - DAMPER, ENGINE MOUNTING
12351-21090

1NZFE..NCP131

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-21060

1NZFE..NCP131..4FC

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-21020

1NZFE..NCP131..4FC

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1NZFE..NCP131..USA

COLD AREA SPEC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-21330

1NZFE..NCP131..4FC

 1
Common parts
90105-10444
90105-W0005
90105-W0076
90105-W0080
90105-W0111
90105-W0160
90105-W0171
90116-10230
90119-10866
90119-14139
90126-08037
90178-10028
90178-W0060
90179-06007
90179-08256
91671-80820
94151-21041
