NCP131L-CGMSKK (2017)

Toyota Yaris (Frp)

Production Mar 2017 - Nov 2018
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

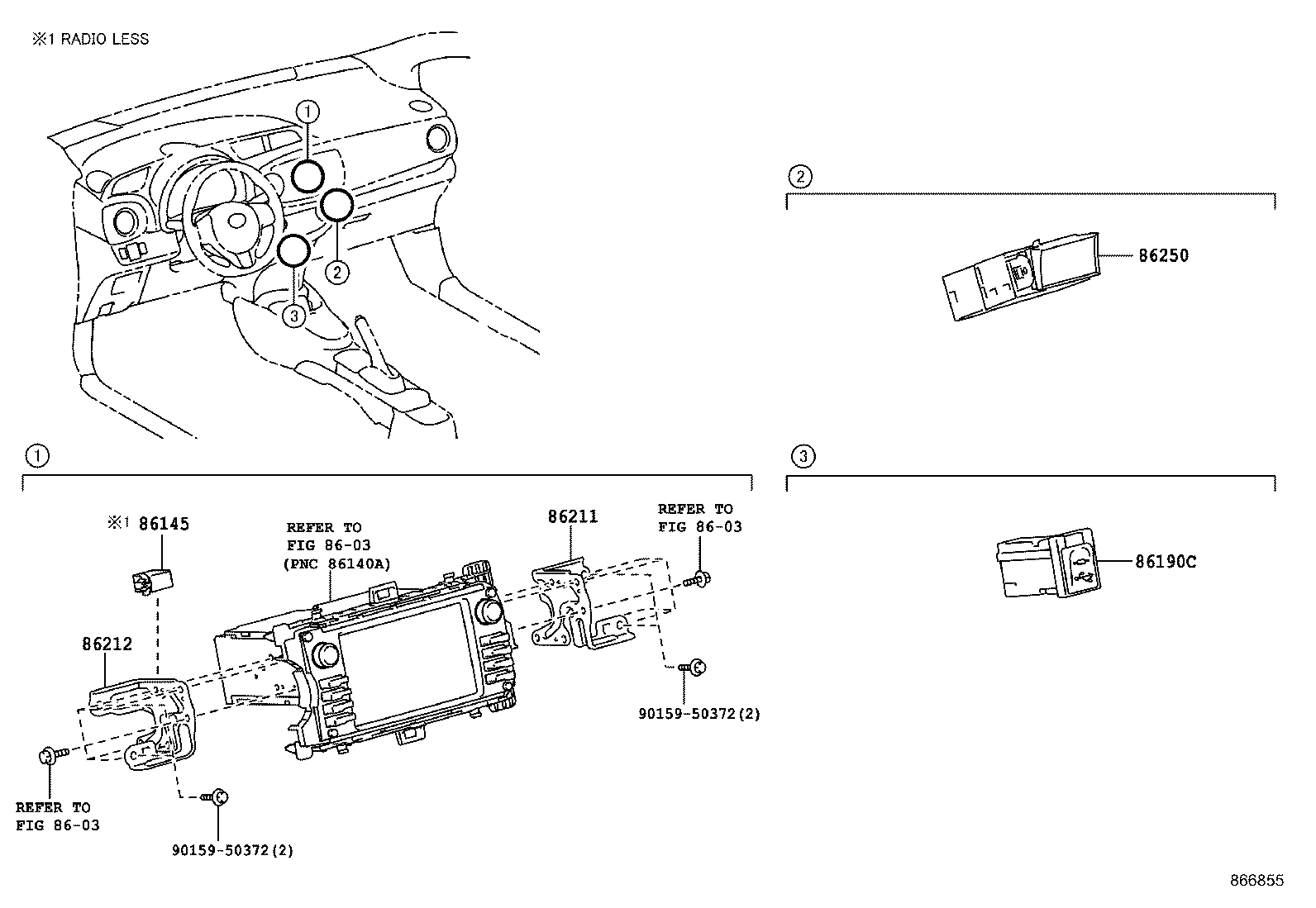

ILLUST NO. 1 OF 2(1703- )

Click highlighted areas on diagram

diagram 8603 8603 8603 86145 86190C 86211 86212 86250 9015950372 9015950372
Part # Description Qty Price
86145 - CONNECTOR, ANTENNA MALE
86145-52010

NCP131

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D070

NCP131

AUDIO JACK-WITH(AUX & USB)

 1
86211 - BRACKET, RADIO, NO.1
86211-0D130

NCP131

 1
86212 - BRACKET, RADIO, NO.2
86212-0D130

NCP131

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-0D010

NCP131

MICROPHONE & MIKE-AMPLIFIER-WITH

 1
Common parts
90159-50372
Linked diagrams
8603
