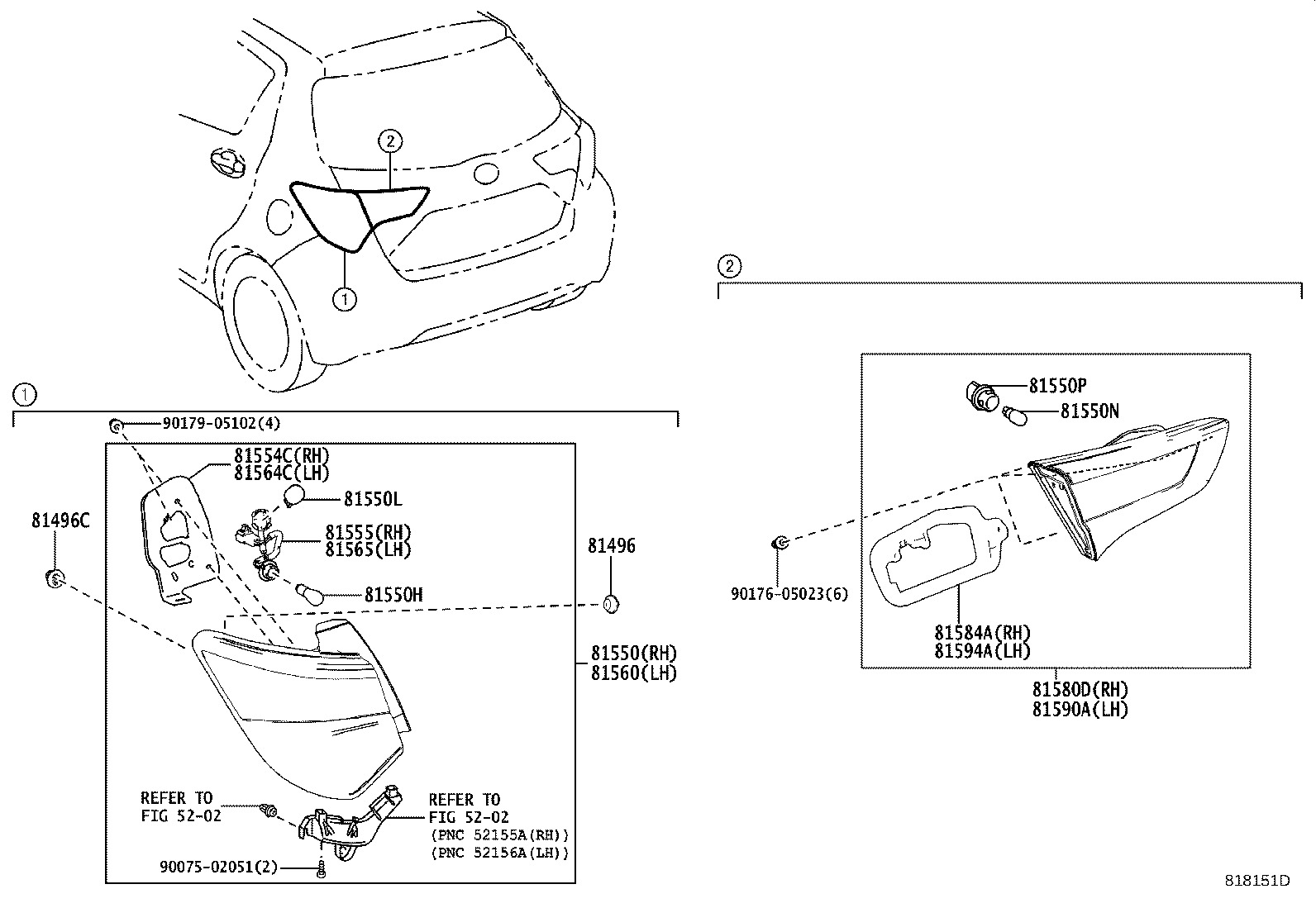

Toyota Yaris (frp) NCP131 REAR COMBINATION LAMP

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010	NCP131	05/2013 - 07/2014	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020	NCP131	05/2013 - 07/2014	2
81550H - BULB, TAIL & STOP LAMP
90981-13044	NCP131 12V 21/5W	05/2013 - 07/2014	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	NCP131 12V 21W,AMBER	05/2013 - 07/2014	2
81550N - BULB, BACK UP LAMP
90981-11059	NCP131	05/2013 - 07/2014	2
81550P - SOCKET, BACK UP LAMP
90075-60001	NCP131..3D..S	03/2017 - 11/2018	2
81554C - PACKING, REAR COMBINATION LAMP BODY, RH
81554-52820	NCP131	05/2013 - 07/2014	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-52820	NCP131	05/2013 - 07/2014	1
81564C - PACKING, REAR COMBINATION LAMP BODY, LH
81564-52760	NCP131	05/2013 - 07/2014	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-52760	NCP131	05/2013 - 07/2014	1
Common parts
90075-02051
90176-05023
90179-05102
Linked diagrams
5202

NCP131L-CGMSKK (2017)
