NCP131L-CGMSKK (2017)

Toyota Yaris (Frp)

Production Mar 2017 - Nov 2018
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )

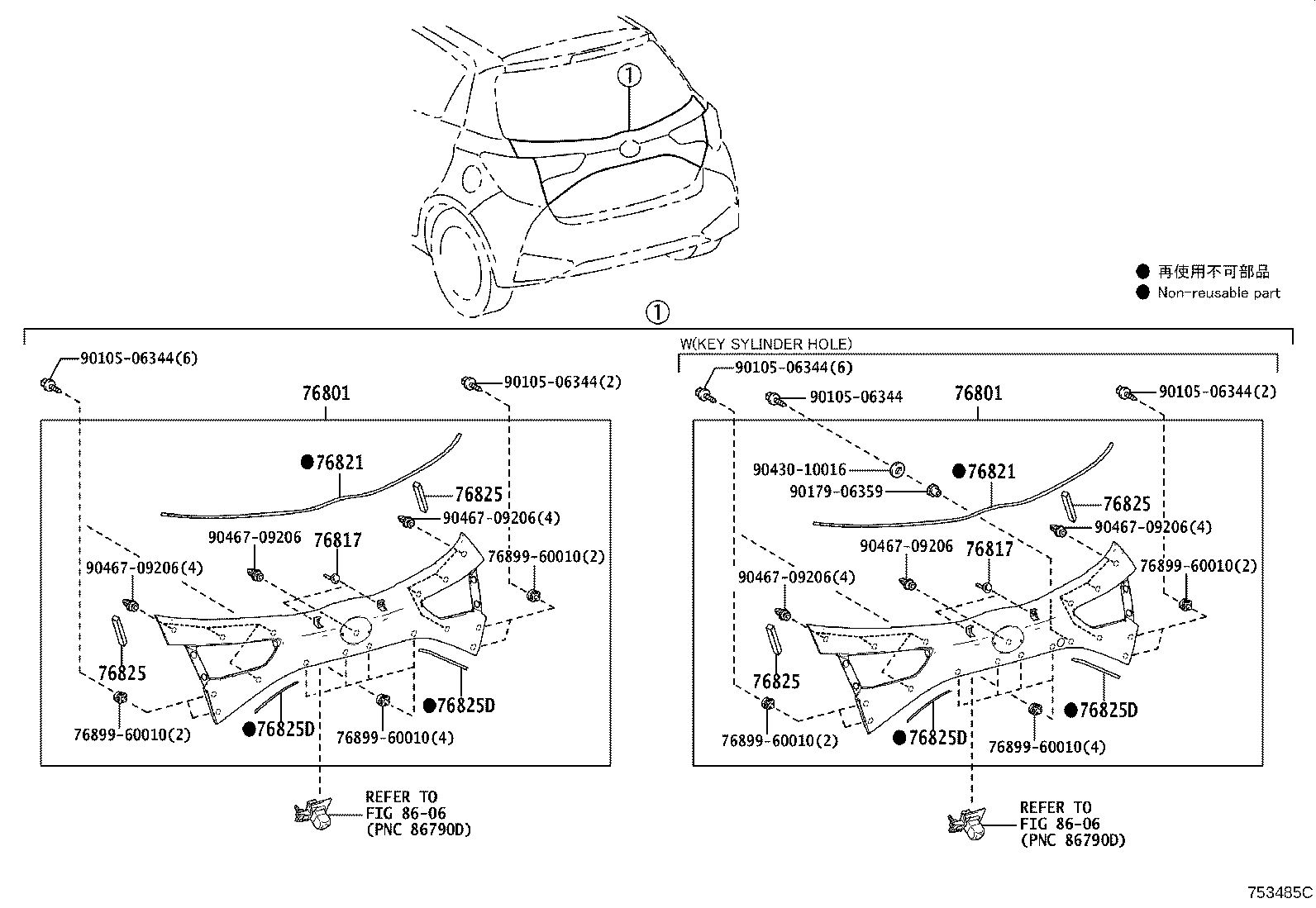

Click highlighted areas on diagram

diagram 76801 76801 76817 76817 76821 76821 76825 76825 76825 76825 76825D 76825D 76825D 76825D 7689960010 7689960010 7689960010 7689960010 7689960010 7689960010 8606 8606 9010506344 9010506344 9010506344 9010506344 9010506344 9017906359 9043010016 9046709206 9046709206 9046709206 9046709206 9046709206 9046709206
Part # Description Qty Price
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0D191

NCP131

PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)

 1
76801-52370

NCP131

PLATED

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0D191

NCP131

PLATED,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)

 1
76801-52370

NCP131

PLATED

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

NCP131

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

NCP131

 2
Common parts
76899-60010
90105-06344
90179-06359
90430-10016
90467-09206
Linked diagrams
8606
