Toyota Yaris (frp) NCP131 ROOF HEADLINING & SILENCER PAD - JDM Part Detective

Home Blog About Contact Search

Manufacturers Home
Toyota
US
YARIS (FRP)
NCP131L-CGMSKK (2017)
6402 - ROOF HEADLINING & SILENCER PAD

NCP131L-CGMSKK (2017)

Toyota Yaris (Frp)

Production Mar 2017 - Nov 2018

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1703- )

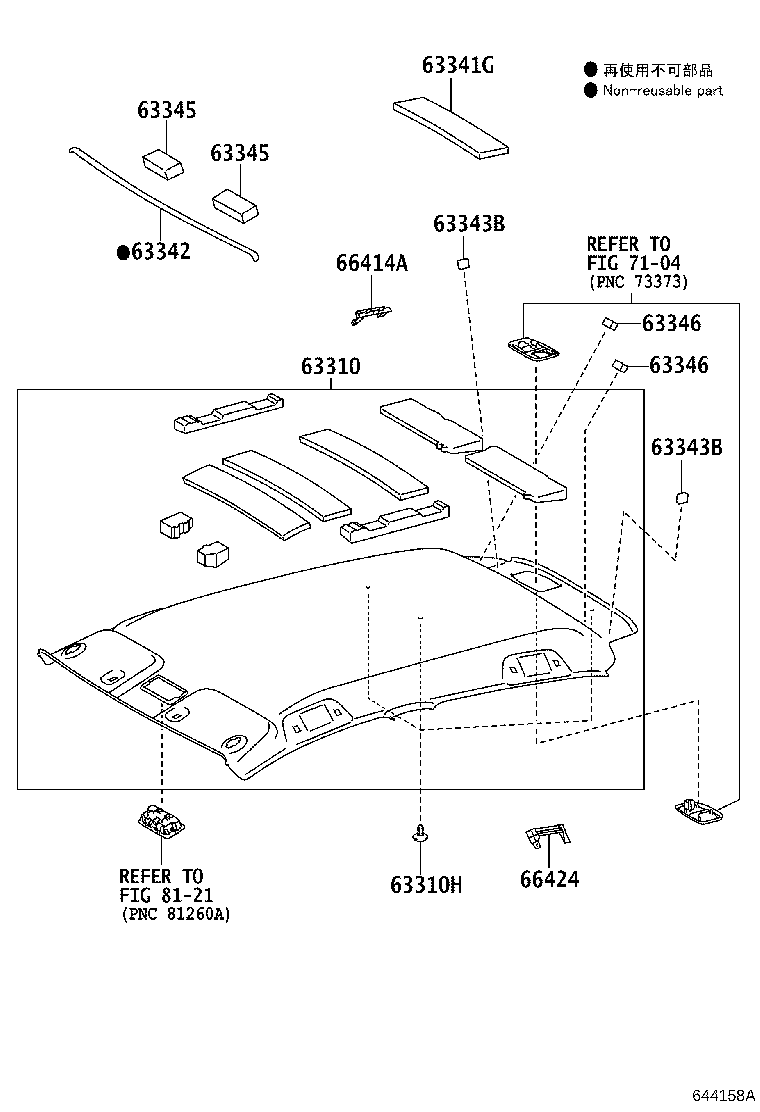

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
63310 - HEADLINING ASSY, ROOF
63310-52A91B0	NCP131..3D LT.GRAY,TRIM1#	05/2013 - 07/2014	1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0	NCP131 LT.GRAY,TRIM1#	05/2013 - 07/2014	3
63341G - PAD, ROOF SILENCER
63343-0D090	NCP131	05/2013 - 07/2014	1
63342 - PAD, ROOF SILENCER, NO.2
63342-52200	NCP131	05/2013 - 07/2014	1
63343B - PAD, ROOF SILENCER, REAR
63344-0D020	NCP131 NO.1 & NO.2	05/2013 - 07/2013	4
63343B - PAD, ROOF SILENCER, REAR
63344-0D020	NCP131 NO.1 & NO.2	05/2013 - 07/2013	4
63345 - PAD, ROOF SILENCER, NO.5
63345-0D040	NCP131	05/2013 - 07/2014	2
63345 - PAD, ROOF SILENCER, NO.5
63345-0D040	NCP131	05/2013 - 07/2014	2
66414A - SPACER, SIDE RAIL, REAR RH
66414-52350	NCP131	05/2013 - 02/2014	1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52340	NCP131	05/2013 - 02/2014	1
Linked diagrams
7104
8121
