NCP131L-CGMSKK (2017)
Toyota Yaris (Frp)
Production
Mar 2017
-
Nov 2018
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1703- )

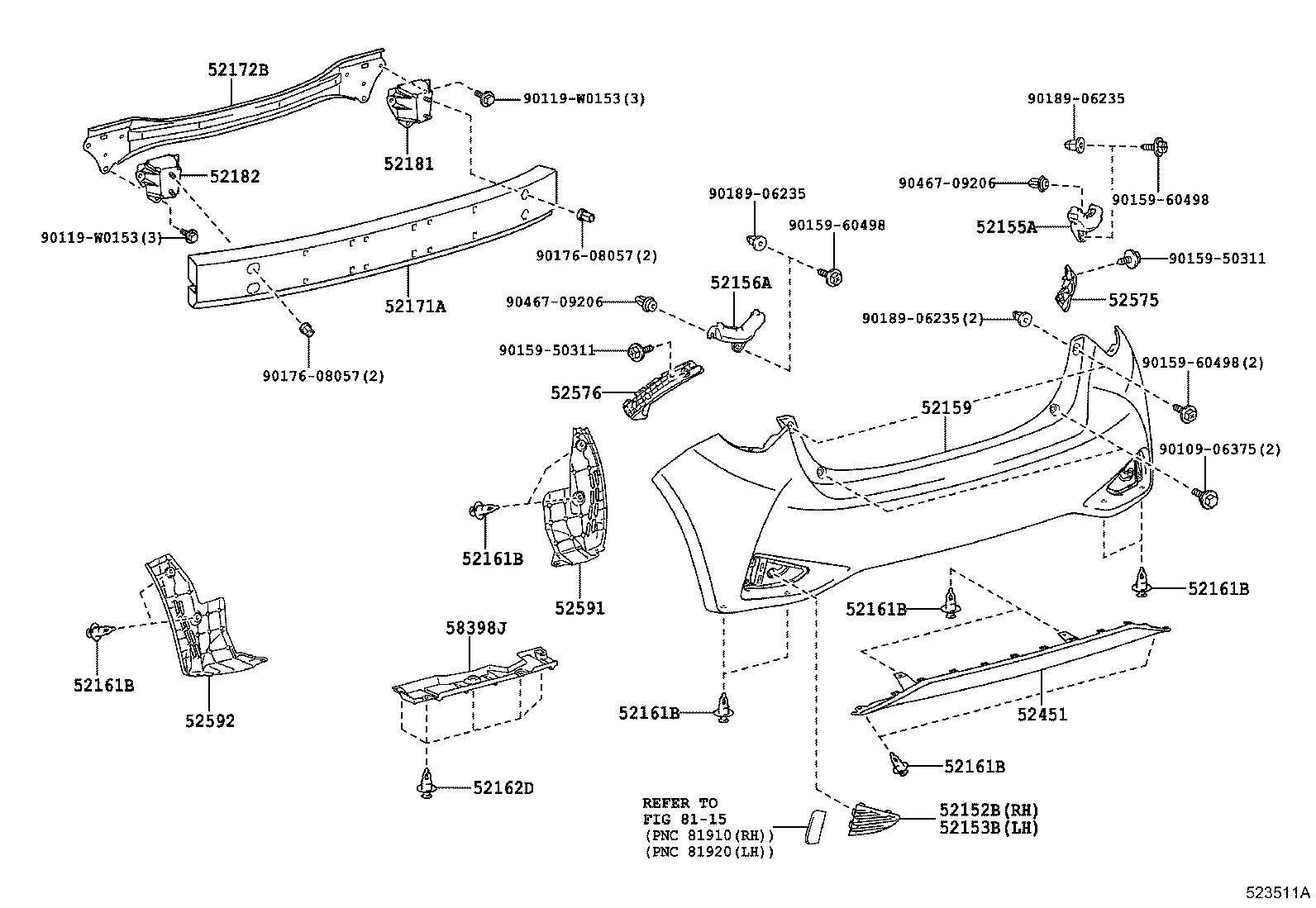

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-0D050 |
NCP131 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-0D040 |
NCP131 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0U911 |
NCP131 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
NCP131 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
NCP131 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
NCP131 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
NCP131 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
NCP131 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
NCP131 |
10 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-52090 |
NCP131..CND |
1 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52172-0D020 |
NCP131 |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-52160 |
NCP131..3D..S |
1 | ||
| 52181-52160 |
NCP131 |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-52160 |
NCP131 |
1 | ||
| 52182-52160 |
NCP131..3D..S |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0D130 |
NCP131 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0D130 |
NCP131 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0D130 |
NCP131 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0D130 |
NCP131 |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-W0153 | ||||
| 90159-50311 | ||||
| 90159-60498 | ||||
| 90176-08057 | ||||
| 90189-06235 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 8115 | ||||
