NCP131L-CGMSKK (2017)

Toyota Yaris (Frp)

Production Mar 2017 - Nov 2018
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

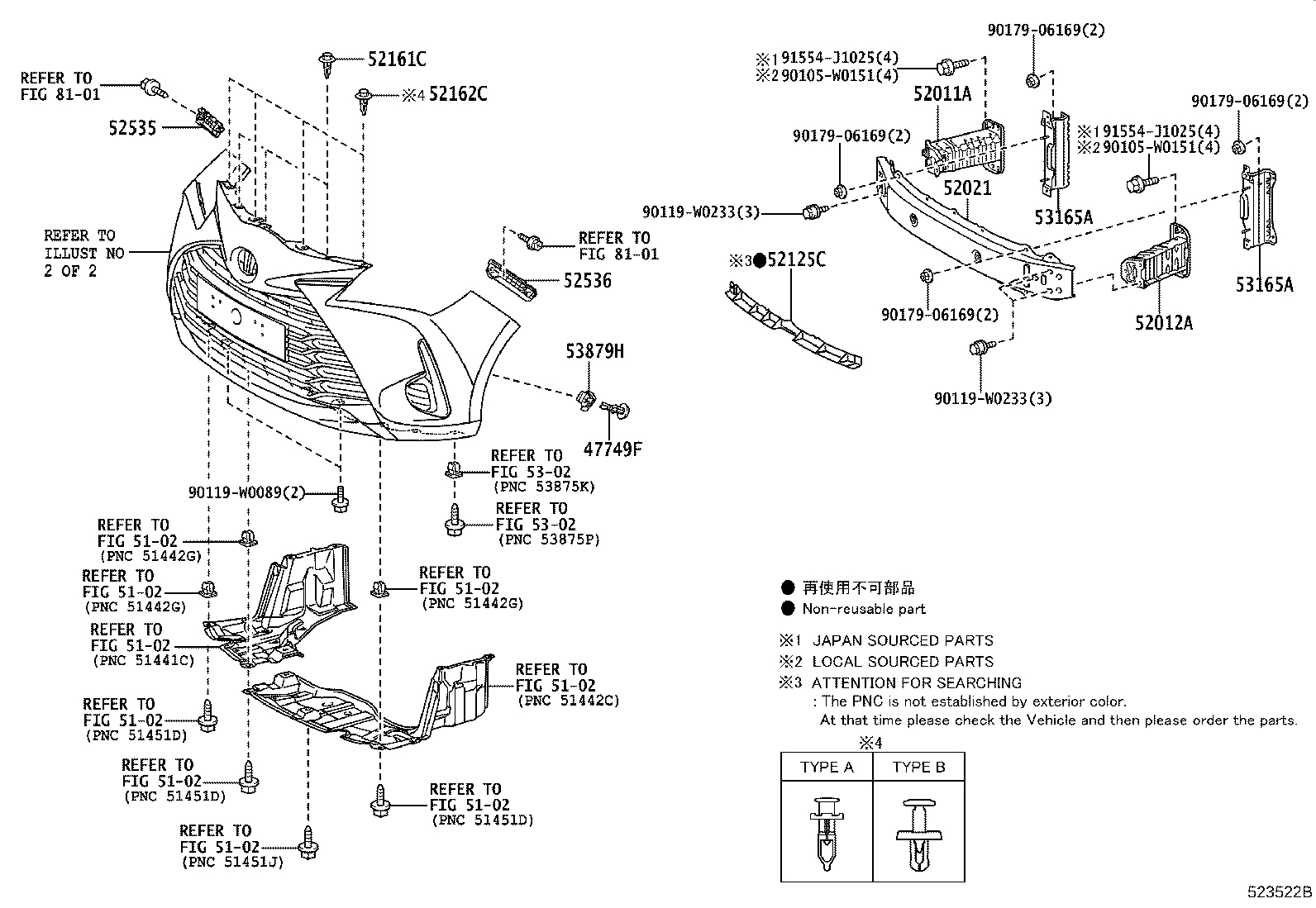

ILLUST NO. 1 OF 2(1703- )

Click highlighted areas on diagram

diagram 47749F 5102 5102 5102 5102 5102 5102 5102 5102 5102 52011A 52012A 52021 52125C 52161C 52162C 52535 52536 5302 5302 53165A 53165A 53879H 8101 8101 90105W0151 90105W0151 90119W0089 90119W0233 90119W0233 9017906169 9017906169 9017906169 9017906169 91554J1025 91554J1025
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-52021

NCP131..3D..S

 1
52011-52021

NCP131

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-52020

NCP131..3D..S

 1
52012-52020

NCP131

 1
52161C - PIECE, FRONT BUMPER
52161-02030

NCP131

 7
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D090

NCP131

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D090

NCP131

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D070

NCP131

RH

 1
53165-0D050

NCP131

LH

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D070

NCP131

RH

 1
53165-0D050

NCP131

LH

 1
Common parts
90105-W0151
90119-W0089
90119-W0233
90179-06169
91554-J1025
Linked diagrams
5102
5302
8101

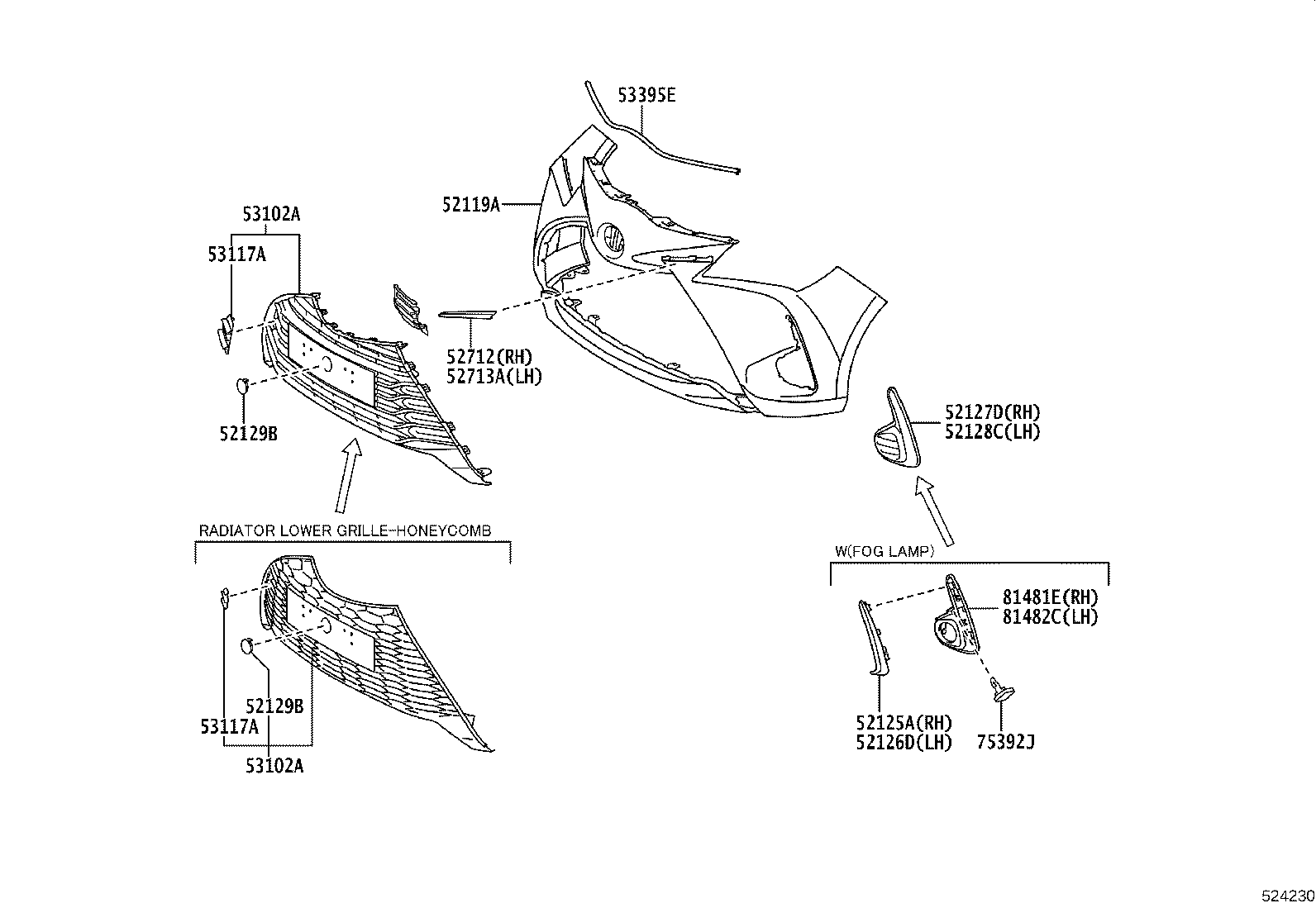

ILLUST NO. 2 OF 2(1703- )

Click highlighted areas on diagram

diagram 52119A 52125A 52126D 52127D 52128C 52129B 52129B 52712 52713A 53102A 53102A 53117A 53117A 53395E 75392J 81481E 81482C
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0U904

NCP131

PAINT REQ.

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-0D070

NCP131..3D..S

 1
52129-0D050

NCP131

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-0D070

NCP131..3D..S

 1
52129-0D050

NCP131

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0D010

NCP131

 1
81481E - COVER, FOG LAMP, RH
81481-0D140

NCP131

FRONT FOG & DRIVING LAMP-WITH

 1
81481-0D130

NCP131

 1
81482C - COVER, FOG LAMP, LH
81482-0D140

NCP131

 1
81482-0D150

NCP131

FRONT FOG & DRIVING LAMP-WITH

 1
