KSP90R-CHMRKW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)SCP90..FRP ; (0511- )KSP90..FRP

Click highlighted areas on diagram

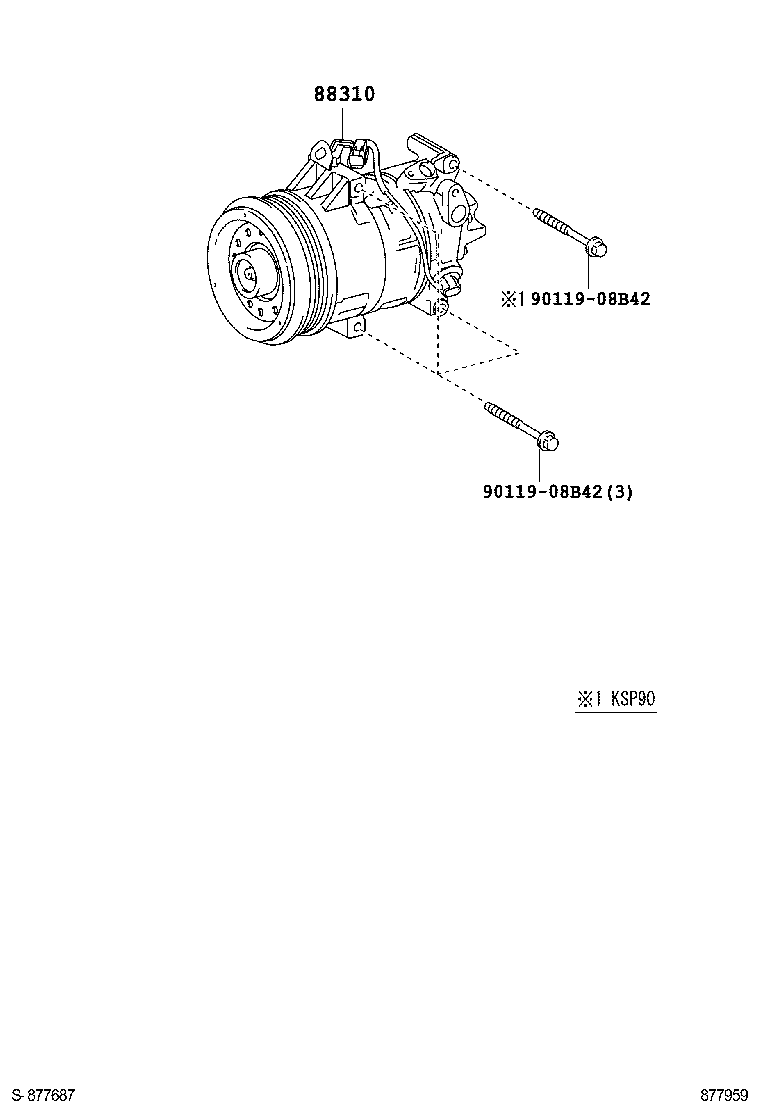

diagram 88310 9011908B42 9011908B42
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0D230

KSP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D231

KSP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D232

KSP90..FRP..TRSTD

FRONT AIR CONDITIONER-MANUAL

 1
88310-0D232

KSP90..FRP..TRSTD

FRONT AIR CONDITIONER-DEALER KIT

 1
Common parts
90119-08B42
