KSP90R-CHMRKW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )KSP90..FRP..RHD

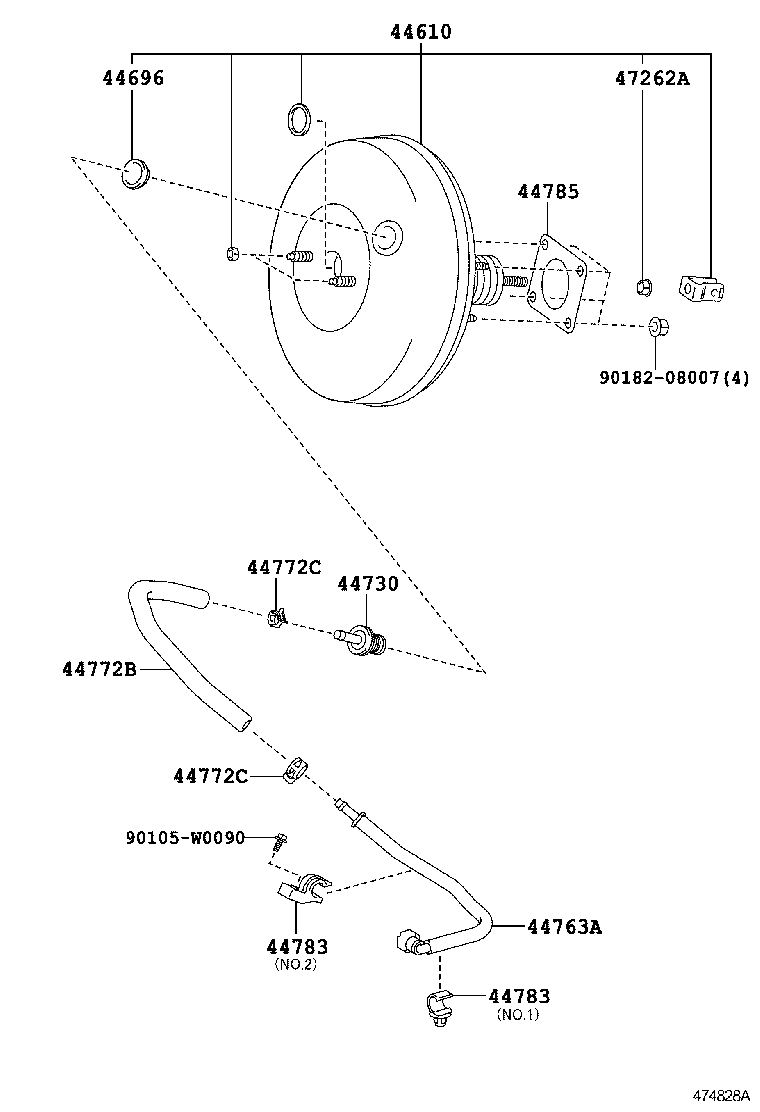

Click highlighted areas on diagram

diagram 44610 44696 44730 44763A 44772B 44772C 44772C 44783 44783 44785 47262A 90105W0090 9018208007
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09250

KSP90,NLP90,SCP90..FRP..RHD

VEHICLE STABILITY CONT-WITH

 1
44610-09240

KSP90,SCP90..FRP..RHD

 1
44696 - GROMMET, CHECK VALVE
44692-0D020

KSP90,NLP90,SCP90..FRP

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-0D010

SCP90..FRP..RHD;KSP90,NLP90..FRP

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0D060

KSP90..FRP..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-0D010

KSP90..FRP..RHD

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90466-W0008

KSP90..FRP

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90466-W0008

KSP90..FRP

 2
44783 - CLAMP, VACUUM HOSE
44783-70010

KSP90..FRP

NO.1

 1
44783-70020

KSP90..FRP..RHD

NO.2

 1
44783 - CLAMP, VACUUM HOSE
44783-70010

KSP90..FRP

NO.1

 1
44783-70020

KSP90..FRP..RHD

NO.2

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

KSP90,NLP90,SCP90..FRP

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-05010

KSP90,NLP90,SCP90..FRP

 1
Common parts
90105-W0090
90182-08007
