KSP90R-CGGGKW (2008)
Toyota Yaris (Frp)
ILLUST NO. 2 OF 7(0811- )FRP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
KSP90,SCP90..FRP..5FS |
1 | ||
| 82620-52050 |
KSP90,SCP90..FRP..5F |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52120 |
KSP90,SCP90..FRP |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52040 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 85928-52040 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY) |
1 | ||
| 85928-52040 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-W/O |
1 | ||
| Common parts | ||||
| 90091-40602 | ||||
| 90119-W0059 | ||||
| 90119-W0115 | ||||
| 91671-80610 | ||||
ILLUST NO. 4 OF 7(0811- )FRP..RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1KRFE,1N#..KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 90987-02027 |
1KRFE,1NDTV,2SZFE..KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90080-87030 |
1KRFE,1NDTV,2SZFE..KSP90,NLP90,SCP90..FRP |
1 | ||
| 90987-W2001 |
1KRFE,1N#..KSP90,NLP90,NSP90..FRP |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0D010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 81980-0D040 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KSP90,NLP90,SCP90..FRP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KSP90,NLP90,SCP90..FRP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
KSP90,NLP90,SCP90..FRP 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KSP90,NLP90,SCP90..FRP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KSP90,NLP90,SCP90..FRP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
KSP90,NLP90,SCP90..FRP 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,ENGINE ROOM R/B |
1 | ||
| 90080-82051 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,ENGINE ROOM R/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09022 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09024 |
KSP90,NLP90,SCP90..FRP 25A,MINI FUSE,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82052 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,ENGINE ROOM R/B |
1 | ||
| 90080-82053 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,ENGINE ROOM R/B |
1 | ||
| 90982-09020 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82054 |
KSP90,NLP90,SCP90..FRP 30A,MINI FUSE,GREEN,ENGINE ROOM R/B |
1 | ||
| 90982-09020 |
KSP90,NLP90,NSP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09023 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,NSP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,ENGINE ROOM R/B |
1 | ||
| 90080-82051 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,ENGINE ROOM R/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09022 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09024 |
KSP90,NLP90,SCP90..FRP 25A,MINI FUSE,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82052 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,ENGINE ROOM R/B |
1 | ||
| 90080-82053 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,ENGINE ROOM R/B |
1 | ||
| 90982-09020 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82054 |
KSP90,NLP90,SCP90..FRP 30A,MINI FUSE,GREEN,ENGINE ROOM R/B |
1 | ||
| 90982-09020 |
KSP90,NLP90,NSP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09023 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,NSP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,ENGINE ROOM R/B |
1 | ||
| 90080-82051 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,ENGINE ROOM R/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09022 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09024 |
KSP90,NLP90,SCP90..FRP 25A,MINI FUSE,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82052 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,ENGINE ROOM R/B |
1 | ||
| 90080-82053 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,ENGINE ROOM R/B |
1 | ||
| 90982-09020 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82054 |
KSP90,NLP90,SCP90..FRP 30A,MINI FUSE,GREEN,ENGINE ROOM R/B |
1 | ||
| 90982-09020 |
KSP90,NLP90,NSP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09023 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,NSP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
KSP90,NLP90..FRP..RHD..(5F,6F);KSP90,NLP90..FRP..LHD..(5F,6F)..SOL |
1 | ||
| 82610-52010 |
KSP90,NLP90..FRP..(5F,6F)..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 82610-52010 |
KSP90,NLP90..FRP..(5F,6F)..SOL VSC-WITH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
KSP90..FRP..RHD..SOL;NLP90,SCP90..FRP..SOL;KSP90..FRP..LHD..5FS..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
4 | ||
| 82660-52030 |
KSP90..FRP..RHD..SOL;NLP90,SCP90..FRP..SOL;KSP90..FRP..LHD..5FS..SOL VEHICLE STABILITY CONT-WITH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
4 | ||
| 82660-52030 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 82660-52030 |
KSP90,NLP90,NSP90..FRP..RHD..(5F,6F);KSP90,NLP90,NSP90..FRP..LHD..(5F,6F)..SOL |
2 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
KSP90..FRP..RHD..SOL;NLP90,SCP90..FRP..SOL;KSP90..FRP..LHD..5FS..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
4 | ||
| 82660-52030 |
KSP90..FRP..RHD..SOL;NLP90,SCP90..FRP..SOL;KSP90..FRP..LHD..5FS..SOL VEHICLE STABILITY CONT-WITH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
4 | ||
| 82660-52030 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 82660-52030 |
KSP90,NLP90,NSP90..FRP..RHD..(5F,6F);KSP90,NLP90,NSP90..FRP..LHD..(5F,6F)..SOL |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52040 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 82660-52040 |
KSP90,NLP90,NSP90..FRP..RHD..(5F,6F);KSP90,NLP90,NSP90..FRP..LHD..(5F,6F)..SOL |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52040 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 82660-52040 |
KSP90,NLP90,NSP90..FRP..RHD..(5F,6F);KSP90,NLP90,NSP90..FRP..LHD..(5F,6F)..SOL |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52080 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 82673-52080 |
KSP90,NLP90,NSP90..FRP..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52090 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 82673-52090 |
KSP90,NLP90,NSP90..FRP..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-52100 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 82673-52100 |
KSP90,NLP90,NSP90..FRP..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52541 |
KSP90,NLP90,SCP90..FRP..RHD;KSP90,NLP90,SCP90..FRP..LHD..SOL |
1 | ||
| 82730-52591 |
KSP90,NLP90,SCP90..FRP..RHD..5F..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 82730-52551 |
KSP90,NLP90,SCP90..FRP..RHD..SOL POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH |
1 | ||
| 82730-52760 |
KSP90,NLP90,SCP90..FRP..RHD..5FS POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 82730-52740 |
KSP90,NLP90,SCP90..FRP..5FS..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 82730-52601 |
KSP90,NLP90,SCP90..FRP..5F..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84340-69075 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84345-51010 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KSP90,NLP90,SCP90..FRP..5F |
2 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KSP90,NLP90,SCP90..FRP..5F |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-0H010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-52010 |
KSP90,NLP90,SCP90..FRP..5FS |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
KSP90,NLP90,SCP90..FRP..SOL FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90987-04010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 90987-04010 |
KSP90,NLP90,NSP90..FRP..SOL FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 90987-04010 |
KSP90,NLP90,NSP90..FRP..SOL FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 90987-04010 |
KSP90,NLP90,NSP90..FRP..SOL FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 90987-04010 |
KSP90,NLP90,NSP90..FRP..SOL FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
KSP90,NLP90,SCP90..FRP FRONT FOG LAMP-WITH |
1 | ||
| 90987-02027 |
KSP90,NLP90,NSP90..FRP..SOL |
1 | ||
| 90987-02027 |
KSP90,NLP90,NSP90..FRP..SOL FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 90987-02027 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 90987-02027 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-04004 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 90987-04004 |
KSP90,NLP90,NSP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
1 | ||
| 90987-04004 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 90987-04004 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-52030 |
KSP90,NLP90,SCP90..FRP..RHD..5FS |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-52230 |
KSP90..FRP..RHD..5FS |
1 | ||
| 89530-52231 |
KSP90..FRP..RHD..5FS |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D100 |
KSP90,SCP90..FRP..RHD |
1 | ||
| 89650-0D170 |
NSP90..FRP..RHD..6FS;KSP90,NLP90..FRP..RHD |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E320 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90159-W0004 | ||||
| 90159-W0029 | ||||
| 90170-W0002 | ||||
| 90179-W0007 | ||||
| 90183-05103 | ||||
| 93568-55016 | ||||
ILLUST NO. 5 OF 7(0811- )FRP..RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D030 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0D010 |
KSP90,NLP90,SCP90..FRP..RHD |
1 | ||
| 84332-0D010 |
KSP90,NLP90,NSP90..FRP..RHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84870-0F010 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09080 |
KSP90,NLP90,NSP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85500-09020 |
KSP90,NLP90,SCP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85500-09020 |
KSP90,NLP90,NSP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0D010 |
KSP90,NLP90,SCP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85515-0D010 |
KSP90,NLP90,NSP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-0D020 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 85530-0D020 |
KSP90,NLP90,NSP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85530-0D020 |
KSP90,NLP90,SCP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85530-0D020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52040 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 85535-52040 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 85535-52040 |
KSP90,NLP90,NSP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 85535-52040 |
KSP90,NLP90,SCP90..FRP CIGARETTE LIGHTER-WITH |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0D010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8601 | ||||

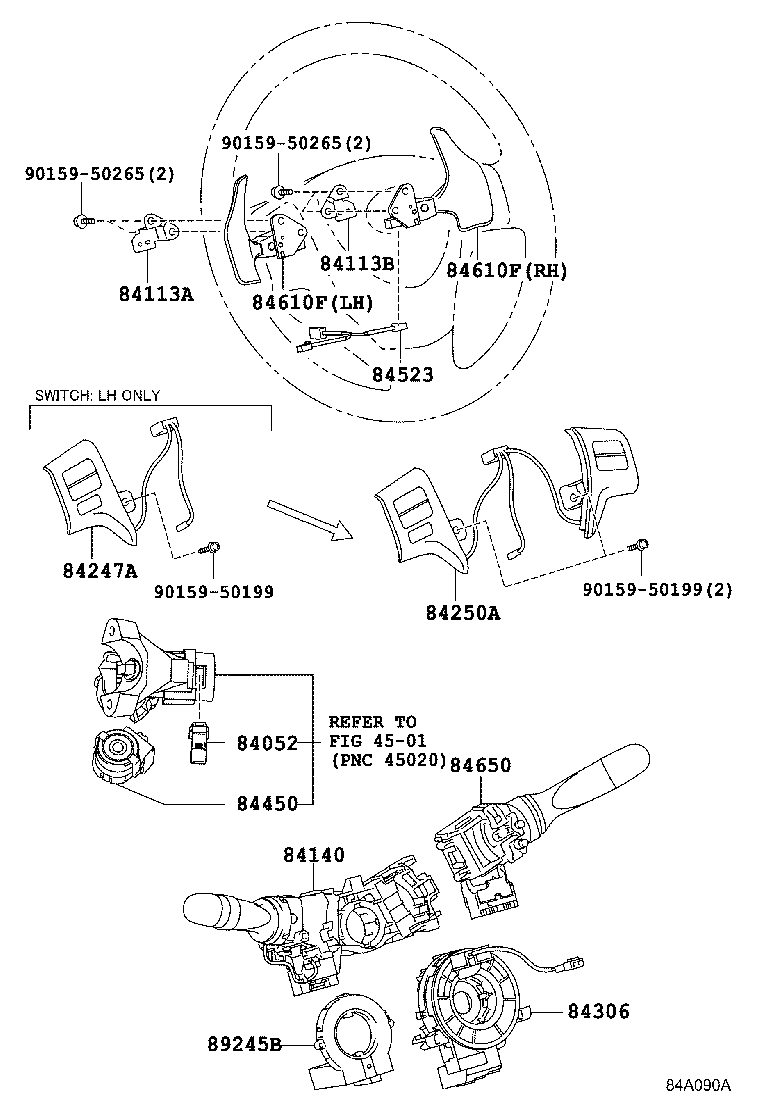

ILLUST NO. 6 OF 7(0811- )FRP..5FS,6FS
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 84052-71010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D090 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84140-0D080 |
KSP90,NLP90,SCP90..FRP FRONT FOG LAMP-WITH |
1 | ||
| 84140-0D081 |
KSP90,NLP90,NSP90..FRP..SOL |
1 | ||
| 84140-0D091 |
KSP90,NLP90,NSP90..FRP..SOL FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-52060B0 |
KSP90,NLP90,SCP90..FRP..SOL LT.SILVER,TRIM1# |
1 | ||
| 84247-52060B0 |
KSP90,SCP90..FRP..SOL AUDIO-RADIOLESS 4SPEAKER,LT.SILVER,TRIM1# |
1 | ||
| 84247-52060B0 |
KSP90,NLP90,SCP90..FRP..SOL STEERING WHEEL-URETHANE,LT.SILVER,TRIM1# |
1 | ||
| 84247-0D030B0 |
KSP90..FRP..5FS AUDIO-AM/FM CD 6SPEAKER,GRAY,TRIM1#,4# |
1 | ||
| 84247-0D030B0 |
KSP90..FRP..5FS AUDIO-RADIOLESS 6SPEAKER,GRAY,TRIM1#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D070 |
KSP90,NLP90,NSP90..FRP..SOL |
1 | ||
| 84306-0D090 |
KSP90,NLP90,SCP90..FRP..SOL STEERING WHEEL-URETHANE&VEHICLE STABILITY CONT-WITH |
1 | ||
| 84306-0D070 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 84306-0D090 |
KSP90,NLP90,SCP90..FRP..SOL STEERING WHEEL-URETHANE |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
KSP90,NLP90,SCP90..FRP..SOL WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START) |
1 | ||
| 84450-71010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D031 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 84652-0D030 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-52030 |
KSP90,NLP90,SCP90..FRP VEHICLE STABILITY CONT-WITH |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(0811- )FRP
DOOR,ROOF,FLOOR & LAGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D050 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KSP90,NLP90,NSP90..FRP |
2 | ||
| 84231-0D030 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KSP90,NLP90,SCP90..FRP |
2 | ||
| 84231-0D030 |
KSP90,NLP90,NSP90..FRP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 84810-0D030 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
KSP90,NLP90,SCP90..FRP..SOL |
1 | ||
| 84810-0D030 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D090 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 84820-0D190 |
KSP90,NLP90,NSP90..FRP..RHD |
1 | ||
| 84820-02220 |
KSP90,NLP90,NSP90..FRP..RHD..SOL WEST PACKAGE |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D090 |
KSP90,NLP90,SCP90..FRP..RHD..SOL |
1 | ||
| 84820-0D190 |
KSP90,NLP90,NSP90..FRP..RHD |
1 | ||
| 84820-02220 |
KSP90,NLP90,NSP90..FRP..RHD..SOL WEST PACKAGE |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-52011 |
KSP90,NLP90,NSP90..FRP |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
ILLUST NO. 3 OF 7(0811- )FRP
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NRFE..NSP90..FRP..6FS;1KRFE,1NDTV..KSP90,NLP90..FRP |
1 | ||
| 28300-28010 |
1KRFE,1NDTV,2SZFE..KSP90,NLP90,SCP90..FRP |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KSP90,NLP90,SCP90..FRP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KSP90,NLP90,SCP90..FRP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
KSP90,NLP90,SCP90..FRP 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82050 |
KSP90,NLP90,SCP90..FRP 7.5A,MINI FUSE,BROWN,ENGINE ROOM R/B |
1 | ||
| 90080-82051 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,ENGINE ROOM R/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,SCP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09022 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09024 |
KSP90,NLP90,SCP90..FRP 25A,MINI FUSE,INSTRUMENT PANEL J/B |
1 | ||
| 90080-82052 |
KSP90,NLP90,SCP90..FRP 15A,MINI FUSE,BLUE,ENGINE ROOM R/B |
1 | ||
| 90080-82053 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,ENGINE ROOM R/B |
1 | ||
| 90080-82054 |
KSP90,NLP90,SCP90..FRP 30A,MINI FUSE,GREEN,ENGINE ROOM R/B |
1 | ||
| 90982-09020 |
KSP90,NLP90,NSP90..FRP 7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09023 |
KSP90,NLP90,SCP90..FRP 20A,MINI FUSE,YELLOW,INSTRUMENT PANEL J/B |
1 | ||
| 90982-09021 |
KSP90,NLP90,NSP90..FRP 10A,MINI FUSE,RED,INSTRUMENT PANEL J/B |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..RHD..5FS |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..RHD..5FS |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..RHD..5FS |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..RHD..5FS |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52330 |
KSP90..FRP |
1 | ||
| 82662-52301 |
KSP90,NSP90..FRP..(5F,5FS,6FS) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52310 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..5FS |
1 | ||
| 82662-52620 |
NLP90..FRP..LHD..6F;NLP90..FRP..RHD..6FS;KSP90,NSP90..FRP..(5FS,6FS) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52310 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..5FS |
1 | ||
| 82662-52620 |
NLP90..FRP..LHD..6F;NLP90..FRP..RHD..6FS;KSP90,NSP90..FRP..(5FS,6FS) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..5FS |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..5FS |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D030 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..5FS |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
KSP90..FRP..LHD..5F..SOL;NLP90,SCP90..FRP..LHD..5F;KSP90,NLP90,SCP90..FRP..5FS |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
KSP90,NLP90,SCP90..FRP (J) |
1 | ||
| 90080-87012 |
KSP90,NLP90,SCP90..FRP (L) |
1 | ||
| 90080-87012 |
KSP90,NLP90,NSP90..FRP (L) |
1 | ||
| 90987-04004 |
KSP90,NLP90,SCP90..FRP FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 90080-87030 |
KSP90,NLP90,NSP90..FRP..(5FS,6FS) |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 90080-87030 |
KSP90,NLP90,NSP90..FRP..(5FS,6FS) |
1 | ||
| Common parts | ||||
| 90119-W0103 | ||||
| 90178-W0019 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
