NSP152R-AHXRKT (2017)

Toyota Yaris

Production Sep 2017 - Oct 2019
Engine 3NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1709- )NSP152 ; (1710- )NSP150,151..RHD..A ; (1802- )B,C

Click highlighted areas on diagram

MANUAL HEATER CONTROL

diagram 5501 55900A 55906A 55909C 8601 90167T0011 9356855014
Part # Description Qty Price
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-0DA20

NSP152

J PACKAGE

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D180

NSP152

J PACKAGE

 1
55906-0D180

NSP152

ECO PACKAGE

 1
Common parts
90167-T0011
93568-55014
Linked diagrams
5501
8601

ILLUST NO. 2 OF 3(1709- )NSP152 ; (1710- )NSP150,151..RHD..A ; (1802- )B,C

Click highlighted areas on diagram

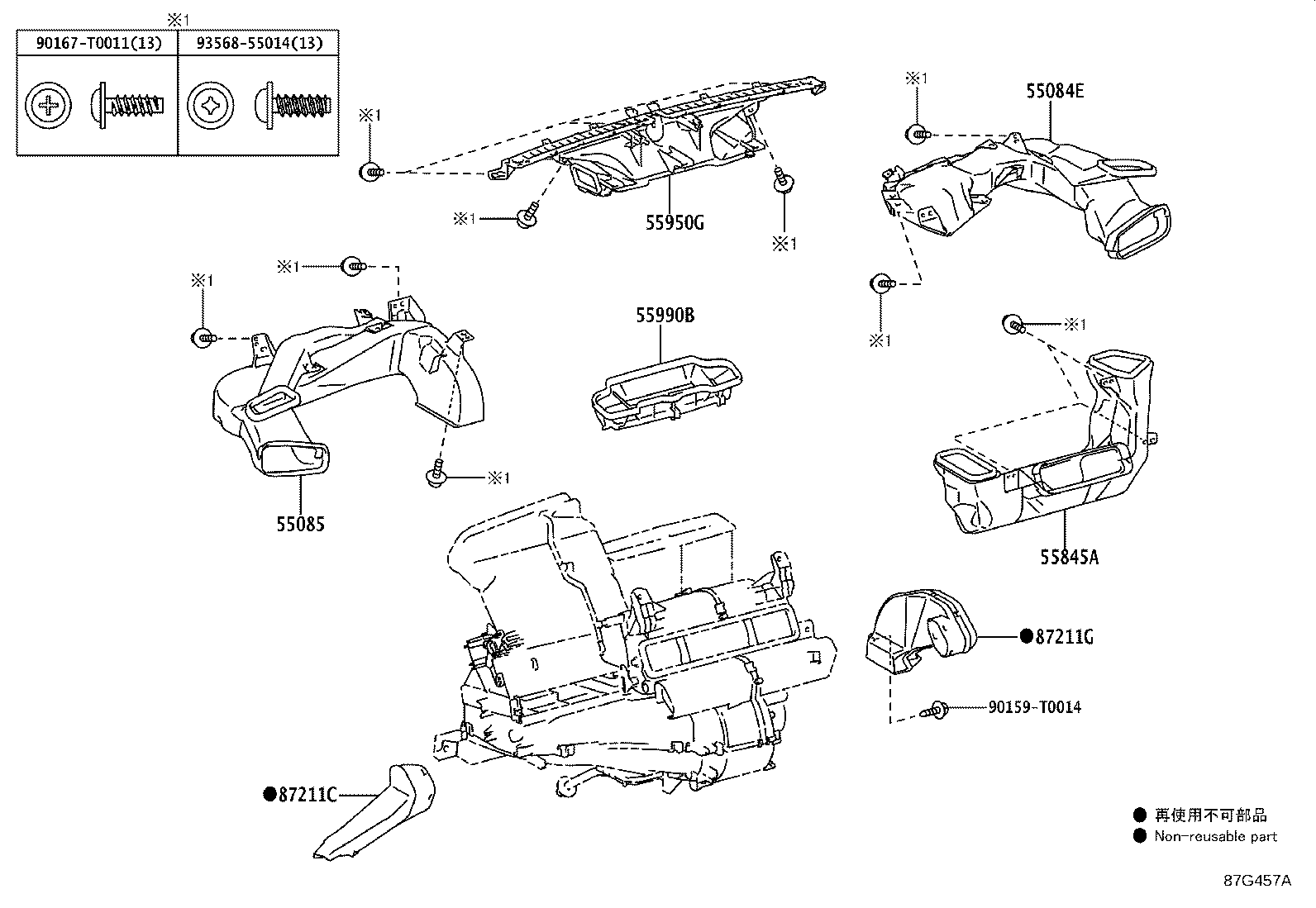

AIR DUCT

diagram 55084E 55085 55845A 55950G 55990B 87211C 87211G 90159T0014 90167T0011 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-0D190

NSP151,152..RHD..A

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-0D140

NSP151,152..RHD..A

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55870-0D020

NSP151,152..RHD..A

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D270

NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-0D090

NSP151,152..RHD..A

 1
87211C - DUCT, AIR, NO.4
87211-0D300

NSP151,152..RHD..A

 1
87211G - DUCT, AIR, NO.5
87211-0D550

NSP151,152..RHD..A

 1
Common parts
90159-T0014
90167-T0011
93568-55014

ILLUST NO. 2 OF 3(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806- )H

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55845A 55950G 55990B 87211C 87211G 9015960431 90159T0014 90167T0011 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-0D190

NSP151,152..RHD..A

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-0D140

NSP151,152..RHD..A

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55870-0D020

NSP151,152..RHD..A

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D270

NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-0D090

NSP151,152..RHD..A

 1
87211C - DUCT, AIR, NO.4
87211-0D300

NSP151,152..RHD..A

 1
87211G - DUCT, AIR, NO.5
87211-0D550

NSP151,152..RHD..A

 1
Common parts
90159-60431
90159-T0014
90167-T0011
93568-55014

ILLUST NO. 3 OF 3(1709- )NSP152 ; (1710- )NSP150,151..RHD..A ; (1802- )B,C

Click highlighted areas on diagram

SENSOR

diagram 8401 8714 8714 88625H 88625Q 88790B
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130

NSP152;NSP151..V..C;NSP150..CVT..GEN..G;NSP151..(AGT,BZ,GEN,PH,SA,VN)..(G,V)

 1
88625-52130

NSP152

ECO PACKAGE

 1
88625-52130

NSP152

J PACKAGE

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

NSP152

J PACKAGE

 1
88625-47021

NSP152

ECO PACKAGE

 1
88625-47021

NSP152;NSP151..V..C;NSP150..CVT..GEN..G;NSP151..(AGT,BZ,GEN,PH,SA,VN)..(G,V)

 1
88790B - THERMISTOR ASSY
88790-22131

NSP151..F;NSP15#..AGT,BZ,GCC,GEN,IDN,PH,SA,TH,VN

 1
88790-0K010

NSP151..A,H;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R

LOCAL SOURCED PARTS

 1
88790-28100

NSP151..A,H;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R

JAPAN SOURCED PARTS

 1
Linked diagrams
8401
8714

ILLUST NO. 3 OF 3(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806- )H

Click highlighted areas on diagram

SENSOR

diagram 8401 8714 8714 88625H 88625Q 88790B
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130

NSP152;NSP151..V..C;NSP150..CVT..GEN..G;NSP151..(AGT,BZ,GEN,PH,SA,VN)..(G,V)

 1
88625-52130

NSP152

ECO PACKAGE

 1
88625-52130

NSP152

J PACKAGE

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

NSP152

J PACKAGE

 1
88625-47021

NSP152

ECO PACKAGE

 1
88625-47021

NSP152;NSP151..V..C;NSP150..CVT..GEN..G;NSP151..(AGT,BZ,GEN,PH,SA,VN)..(G,V)

 1
88790B - THERMISTOR ASSY
88790-22131

NSP151..F;NSP15#..AGT,BZ,GCC,GEN,IDN,PH,SA,TH,VN

 1
88790-0K010

NSP151..A,H;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R

LOCAL SOURCED PARTS

 1
88790-28100

NSP151..A,H;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R

JAPAN SOURCED PARTS

 1
Linked diagrams
8401
8714

ILLUST NO. 1 OF 3(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806- )H

Click highlighted areas on diagram

MANUAL HEATER CONTROL-MAKER OPTION

diagram 5501 55900A 55906A 55909C 8601 90167T0011 9356855014
Part # Description Qty Price
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-0DA20

NSP152

J PACKAGE

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D180

NSP152

J PACKAGE

 1
55906-0D180

NSP152

ECO PACKAGE

 1
Common parts
90167-T0011
93568-55014
Linked diagrams
5501
8601

ILLUST NO. 1 OF 3(1709- )NSP152 ; (1710- )GCC,GEN,PH,SA,VN..A ; (1802- )B,C ; (1804- )F

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55900 55900 8601 90167T0011 90167T0011 9356855014 9356855014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0DF40

NSP152

G OPTION(TH HB)

 1
55900-0DF30

NSP152

ECO PACKAGE

 1
55900-0DF30

NSP152

J PACKAGE

 1
55900-0DF30

NSP152

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0DF40

NSP152

G OPTION(TH HB)

 1
55900-0DF30

NSP152

ECO PACKAGE

 1
55900-0DF30

NSP152

J PACKAGE

 1
55900-0DF30

NSP152

 1
Common parts
90167-T0011
93568-55014
Linked diagrams
8601
