NSP152R-AHXRKT (2013)
Toyota Yaris

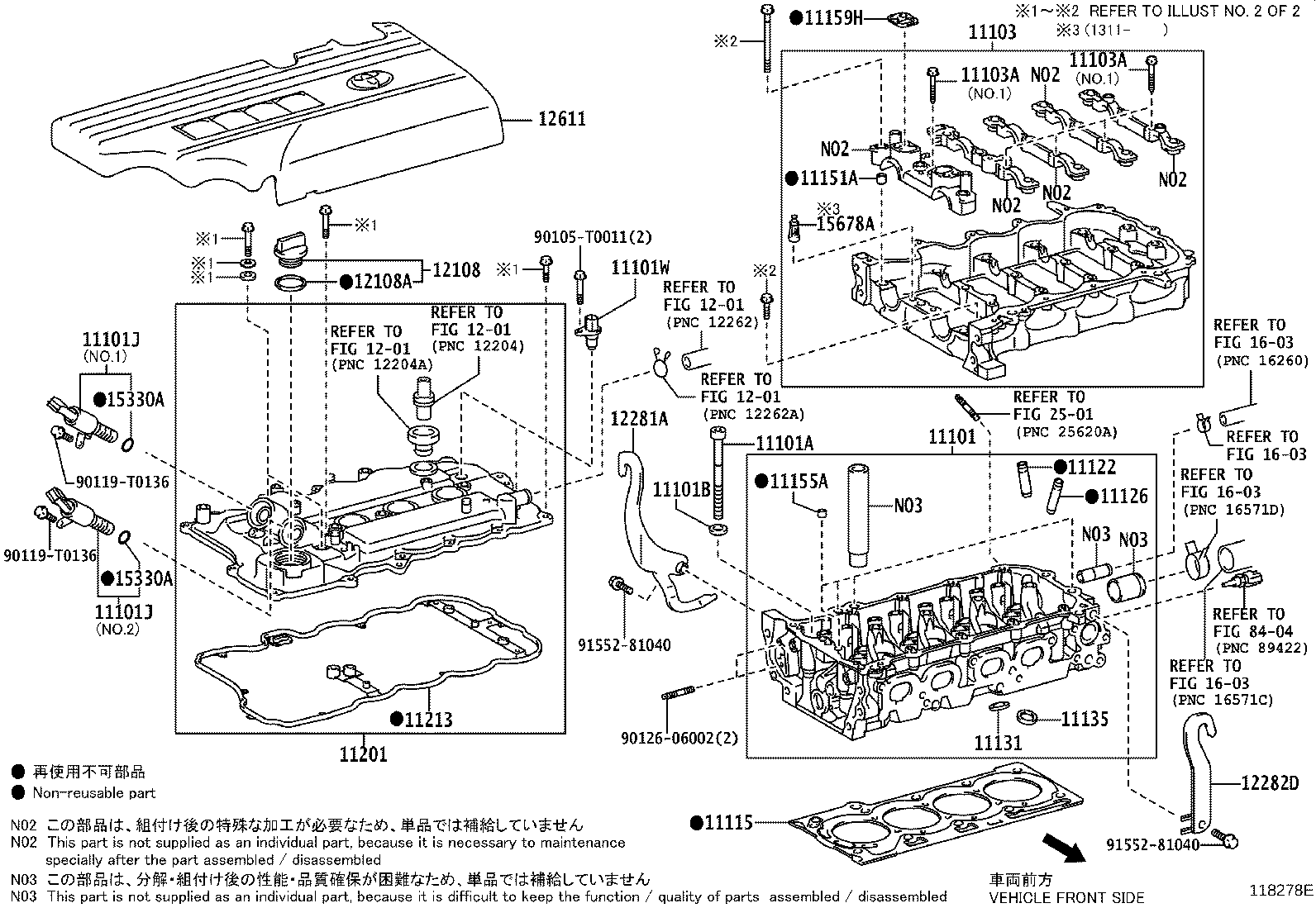

ILLUST NO. 1 OF 2(1310-1607)3NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-09630 |
3NRFE..NSP152 |
1 | ||
| 11101-49465 |
3NRFE..NSP152 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02174 |
3NRFE..NSP152 |
10 | ||
| 90910-T2012 |
3NRFE..NSP152 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
3NRFE..NSP152 |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
1 | ||
| 15330-47020 |
3NRFE..NSP152 NO.2 |
1 | ||
| 15330-0Y050 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
1 | ||
| 15330-47010 |
3NRFE..NSP152 NO.1 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
1 | ||
| 15330-47020 |
3NRFE..NSP152 NO.2 |
1 | ||
| 15330-0Y050 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
1 | ||
| 15330-47010 |
3NRFE..NSP152 NO.1 |
1 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05060 |
3NRFE..NSP152 |
2 | ||
| 90919-T5002 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-47901 |
3NRFE..NSP152 |
1 | ||
| 11103-0Y070 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| 11103-47040 |
3NRFE..NSP152 |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
3NRFE..NSP152 NO.2 |
17 | ||
| 90119-T0443 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
5 | ||
| 90105-T0271 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
17 | ||
| 90119-07009 |
3NRFE..NSP152 NO.1 |
5 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
3NRFE..NSP152 NO.2 |
17 | ||
| 90119-T0443 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
5 | ||
| 90105-T0271 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
17 | ||
| 90119-07009 |
3NRFE..NSP152 NO.1 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-47050 |
3NRFE..NSP152 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31041 |
3NRFE..NSP152 STD |
8 | ||
| 11123-31041 |
3NRFE..NSP152 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-31041 |
3NRFE..NSP152 STD |
8 | ||
| 11123-31041 |
3NRFE..NSP152 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-47010 |
3NRFE..NSP152 STD |
8 | ||
| 11132-47010 |
3NRFE..NSP152 O/S 0.03 |
8 | ||
| 11131-0Y080 |
3NRFE..NSP152 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-47010 |
3NRFE..NSP152 STD |
8 | ||
| 11135-0Y050 |
3NRFE..NSP152 STD |
8 | ||
| 11136-47010 |
3NRFE..NSP152 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
3NRFE..NSP152 L=12.5,OD=8 |
10 | ||
| 90253-13005 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN L=12.5,OD=8,*230 OR *432 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12002 |
3NRFE..NSP152 NO.2 |
2 | ||
| 90253-11004 |
3NRFE..NSP152 NO.1 |
2 | ||
| 90253-11004 |
3NRFE..NSP152 |
4 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-47010 |
3NRFE..NSP152 |
2 | ||
| 11159-0Y030 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 11159-47020 |
3NRFE..NSP152 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0Y110 |
3NRFE..NSP152 |
1 | ||
| 11201-47130 |
3NRFE..NSP152 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0Y030 |
3NRFE..NSP152 |
1 | ||
| 11213-47020 |
3NRFE..NSP152 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
3NRFE..NSP152 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
3NRFE..NSP152 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0Y070 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| 12281-47023 |
3NRFE..NSP152 |
1 | ||
| 12281-47022 |
3NRFE..NSP152 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0Y060 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| 12282-47010 |
3NRFE..NSP152 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-47090 |
3NRFE..NSP152 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
3NRFE..NSP152 |
2 | ||
| 90068-14041 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
3NRFE..NSP152 |
2 | ||
| 90068-14041 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-31020 |
3NRFE..NSP152 |
1 | ||
| 15678-0Y010 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| Common parts | ||||
| 90105-T0011 | ||||
| 90119-T0136 | ||||
| 90126-06002 | ||||
| 91552-81040 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 2501 | ||||
| 8404 | ||||

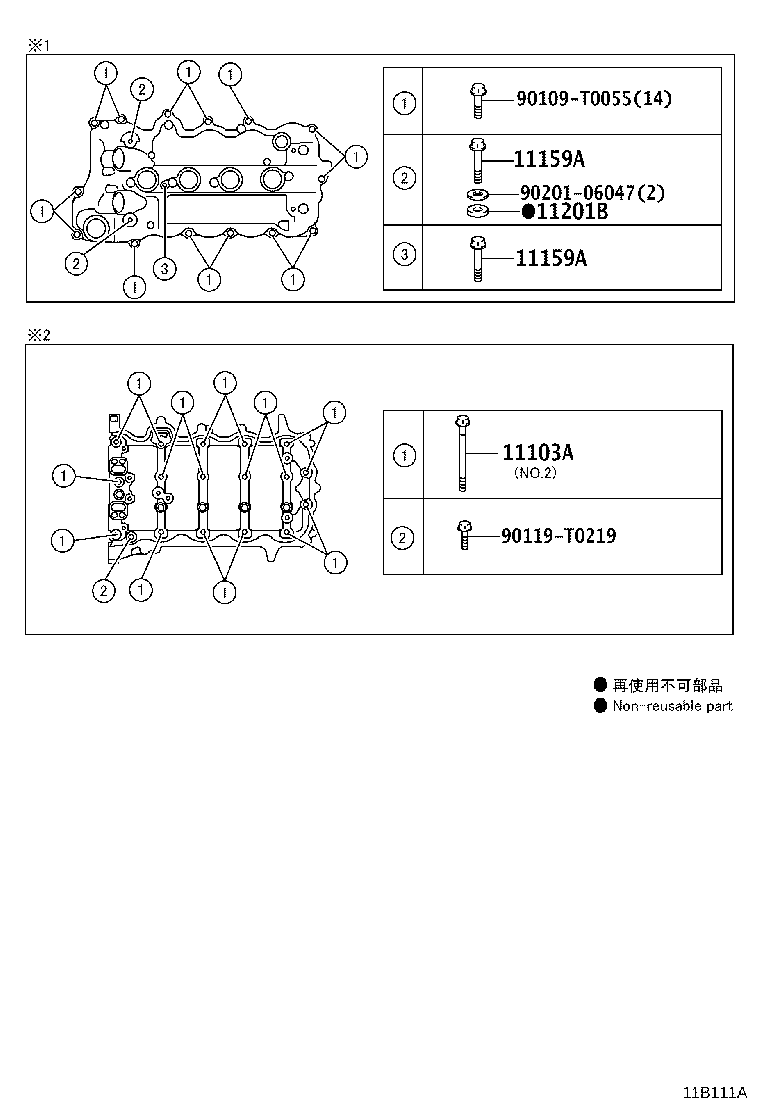

ILLUST NO. 2 OF 2(1310-1607)3NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
3NRFE..NSP152 NO.2 |
17 | ||
| 90119-T0443 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
5 | ||
| 90105-T0271 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
17 | ||
| 90119-07009 |
3NRFE..NSP152 NO.1 |
5 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0347 |
3NRFE..NSP152 |
3 | ||
| 90105-T0011 |
3NRFE..NSP152 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0347 |
3NRFE..NSP152 |
3 | ||
| 90105-T0011 |
3NRFE..NSP152 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-12011 |
3NRFE..NSP152 |
2 | ||
| 90210-T0001 |
3NRFE..NSP152 |
2 | ||
| Common parts | ||||
| 90109-06384 | ||||
| 90201-06047 | ||||
| 91671-G0835 | ||||
ILLUST NO. 2 OF 2(1605- )1NR#,2NR# ; (1607- )3NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
3NRFE..NSP152 NO.2 |
17 | ||
| 90119-T0443 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
5 | ||
| 90105-T0271 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
17 | ||
| 90119-07009 |
3NRFE..NSP152 NO.1 |
5 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0347 |
3NRFE..NSP152 |
3 | ||
| 90105-T0011 |
3NRFE..NSP152 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0347 |
3NRFE..NSP152 |
3 | ||
| 90105-T0011 |
3NRFE..NSP152 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-12011 |
3NRFE..NSP152 |
2 | ||
| 90210-T0001 |
3NRFE..NSP152 |
2 | ||
| Common parts | ||||
| 90109-T0055 | ||||
| 90119-T0219 | ||||
| 90201-06047 | ||||

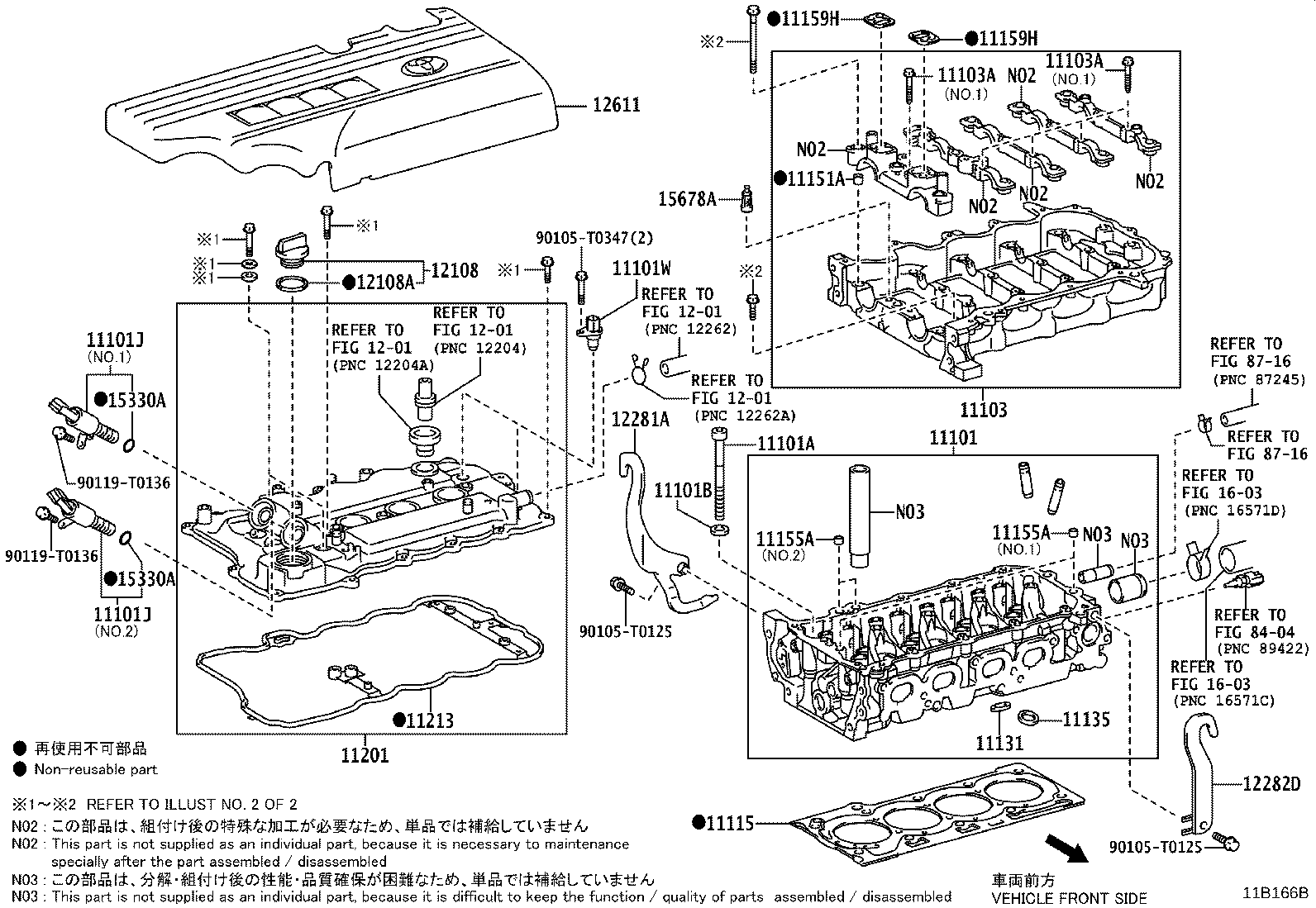

ILLUST NO. 1 OF 2(1607- )3NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-09630 |
3NRFE..NSP152 |
1 | ||
| 11101-49465 |
3NRFE..NSP152 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02174 |
3NRFE..NSP152 |
10 | ||
| 90910-T2012 |
3NRFE..NSP152 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
3NRFE..NSP152 |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
1 | ||
| 15330-47020 |
3NRFE..NSP152 NO.2 |
1 | ||
| 15330-0Y050 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
1 | ||
| 15330-47010 |
3NRFE..NSP152 NO.1 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
1 | ||
| 15330-47020 |
3NRFE..NSP152 NO.2 |
1 | ||
| 15330-0Y050 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
1 | ||
| 15330-47010 |
3NRFE..NSP152 NO.1 |
1 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05060 |
3NRFE..NSP152 |
2 | ||
| 90919-T5002 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-47901 |
3NRFE..NSP152 |
1 | ||
| 11103-0Y070 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| 11103-47040 |
3NRFE..NSP152 |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
3NRFE..NSP152 NO.2 |
17 | ||
| 90119-T0443 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
5 | ||
| 90105-T0271 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
17 | ||
| 90119-07009 |
3NRFE..NSP152 NO.1 |
5 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 |
3NRFE..NSP152 NO.2 |
17 | ||
| 90119-T0443 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.1 |
5 | ||
| 90105-T0271 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432,NO.2 |
17 | ||
| 90119-07009 |
3NRFE..NSP152 NO.1 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-47050 |
3NRFE..NSP152 |
1 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-47010 |
3NRFE..NSP152 STD |
8 | ||
| 11132-47010 |
3NRFE..NSP152 O/S 0.03 |
8 | ||
| 11131-0Y080 |
3NRFE..NSP152 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-47010 |
3NRFE..NSP152 STD |
8 | ||
| 11135-0Y050 |
3NRFE..NSP152 STD |
8 | ||
| 11136-47010 |
3NRFE..NSP152 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
3NRFE..NSP152 L=12.5,OD=8 |
10 | ||
| 90253-13005 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN L=12.5,OD=8,*230 OR *432 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12002 |
3NRFE..NSP152 NO.2 |
2 | ||
| 90253-11004 |
3NRFE..NSP152 NO.1 |
2 | ||
| 90253-11004 |
3NRFE..NSP152 |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12002 |
3NRFE..NSP152 NO.2 |
2 | ||
| 90253-11004 |
3NRFE..NSP152 NO.1 |
2 | ||
| 90253-11004 |
3NRFE..NSP152 |
4 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-47010 |
3NRFE..NSP152 |
2 | ||
| 11159-0Y030 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 11159-47020 |
3NRFE..NSP152 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-47010 |
3NRFE..NSP152 |
2 | ||
| 11159-0Y030 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 11159-47020 |
3NRFE..NSP152 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0Y110 |
3NRFE..NSP152 |
1 | ||
| 11201-47130 |
3NRFE..NSP152 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0Y030 |
3NRFE..NSP152 |
1 | ||
| 11213-47020 |
3NRFE..NSP152 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
3NRFE..NSP152 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
3NRFE..NSP152 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0Y070 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| 12281-47023 |
3NRFE..NSP152 |
1 | ||
| 12281-47022 |
3NRFE..NSP152 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0Y060 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| 12282-47010 |
3NRFE..NSP152 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-47090 |
3NRFE..NSP152 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
3NRFE..NSP152 |
2 | ||
| 90068-14041 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
3NRFE..NSP152 |
2 | ||
| 90068-14041 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-31020 |
3NRFE..NSP152 |
1 | ||
| 15678-0Y010 |
1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN *230 OR *432 |
1 | ||
| Common parts | ||||
| 90105-T0125 | ||||
| 90105-T0347 | ||||
| 90119-T0136 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 8404 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
