NSP151R-CHXVKD (2016)

Toyota Yaris

Production Oct 2016 - Dec 2017
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )NSP152 ; (1710- )GCC,GEN,PH,SA,VN..A ; (1802- )B,C,F,H

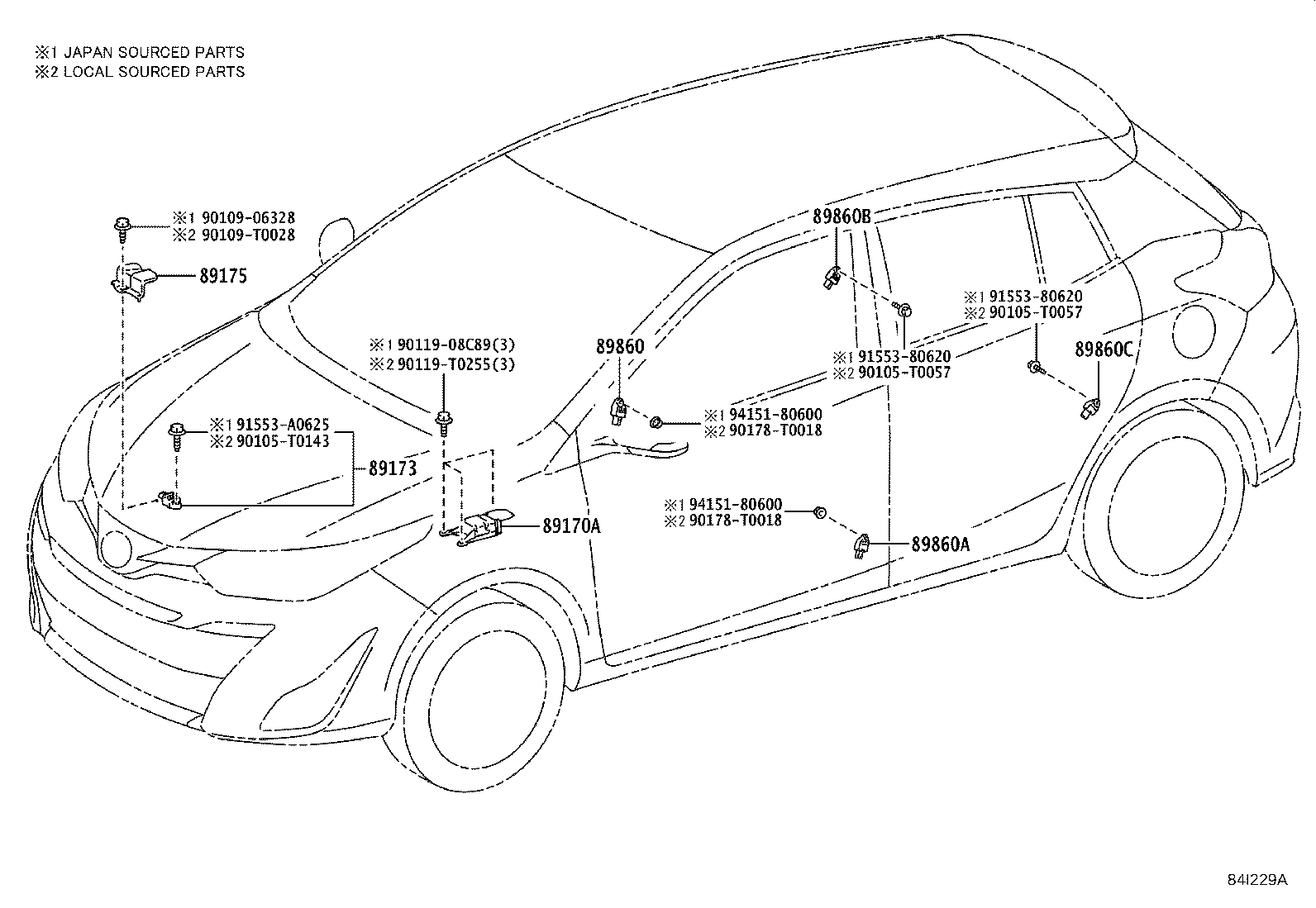

Click highlighted areas on diagram

diagram 89170A 89173 89175 89860 89860A 89860B 89860C 90105T0057 90105T0057 90105T0143 9010906328 90109T0028 9011908C89 90119T0255 90178T0018 90178T0018 9155380620 9155380620 91553A0625 9415180600 9415180600
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-0DB10

NSP151..(PH,SA,VN)..(G,V);NSP15#..CVT..(IDN,PH,TH,VN)..R

 1
89173 - SENSOR, AIR BAG, FRONT
89173-09C00

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 1
89175 - BRACKET, AIR BAG SENSOR
89175-0D060

NSP151..C

 1
89175-0D060

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

MADE IN THAILAND

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-02260

NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-02260

NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-02260

NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-02260

NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)

 1
Common parts
90105-T0057
90105-T0143
90109-06328
90109-T0028
90119-08C89
90119-T0255
90178-T0018
91553-80620
91553-A0625
94151-80600
