NSP151R-CHMVKD (2016)

Toyota Yaris

Production Oct 2016 - Dec 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1709)NCP15#,NSP150,152 ; (1310-1709)NSP151..GCC,GEN,PH,VN ; (1409-1712)NSP151

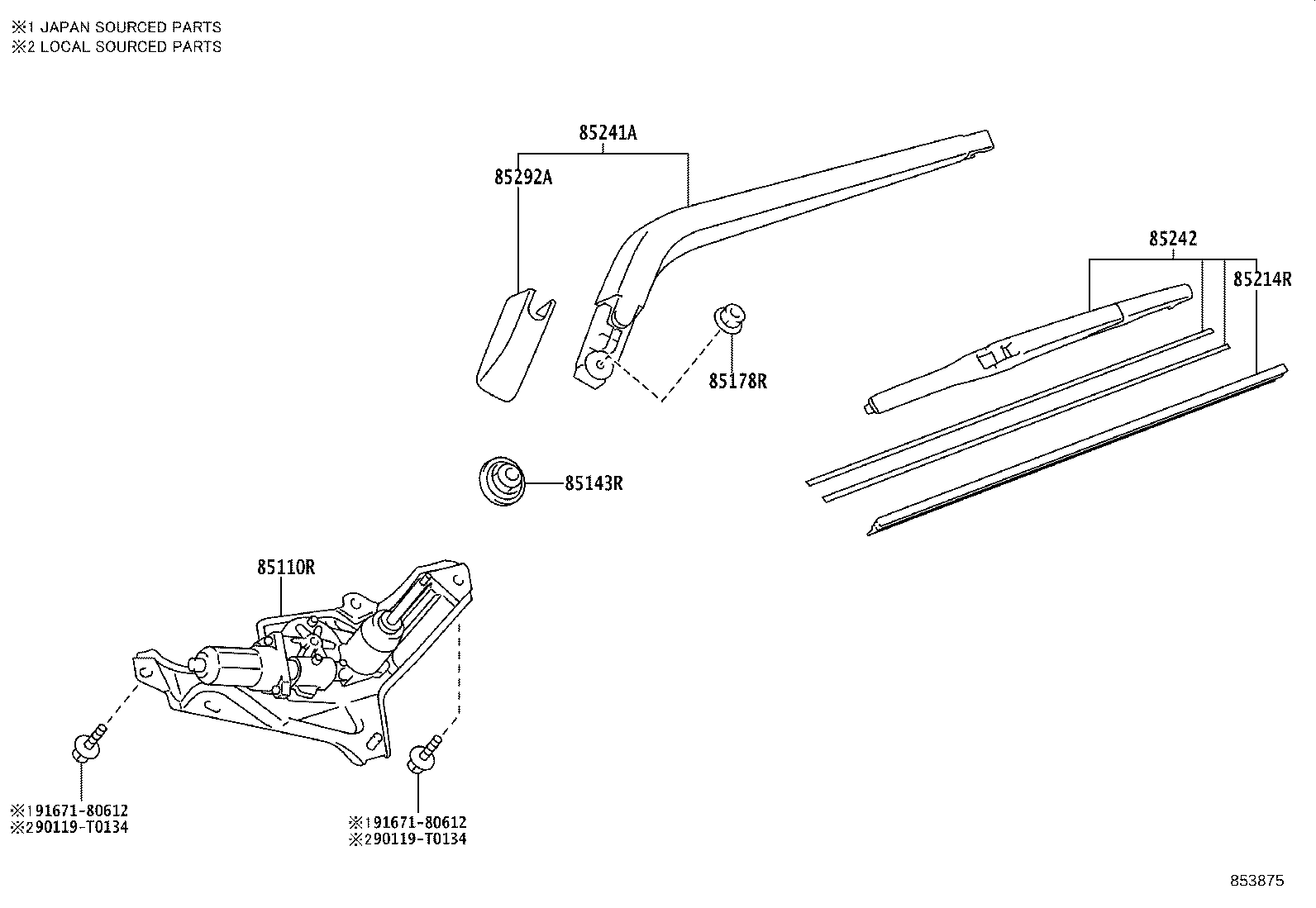

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A 90119T0134 9167180612
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0D220

NSP150..LHD..CVT..A;NSP150,151..5F..GEN..R;NSP151,152..CVT..(GCC,GEN,IDN,TH,VN)..R;NSP151..(GCC,GEN,IDN,PH,VN)..(D,G,V)..(A,C)

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-52040

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 1
85143-0D070

NSP151..C

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90182-T0005

NSP151..C

 1
90182-T0005

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-0D080

NSP151..C

 1
85292-0D080

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 1
Common parts
90119-T0134
91671-80612

(1709- )A,B,F,H ; (1802- )C

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A 90119T0134 90119T0134 9167180612 9167180612
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0D220

NSP150..LHD..CVT..A;NSP150,151..5F..GEN..R;NSP151,152..CVT..(GCC,GEN,IDN,TH,VN)..R;NSP151..(GCC,GEN,IDN,PH,VN)..(D,G,V)..(A,C)

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-52040

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 1
85143-0D070

NSP151..C

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90182-T0005

NSP151..C

 1
90182-T0005

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-0D080

NSP151..C

 1
85292-0D080

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 1
Common parts
90119-T0134
91671-80612
