NSP151R-CHMGKD (2016)

Toyota Yaris

Production Oct 2016 - Dec 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

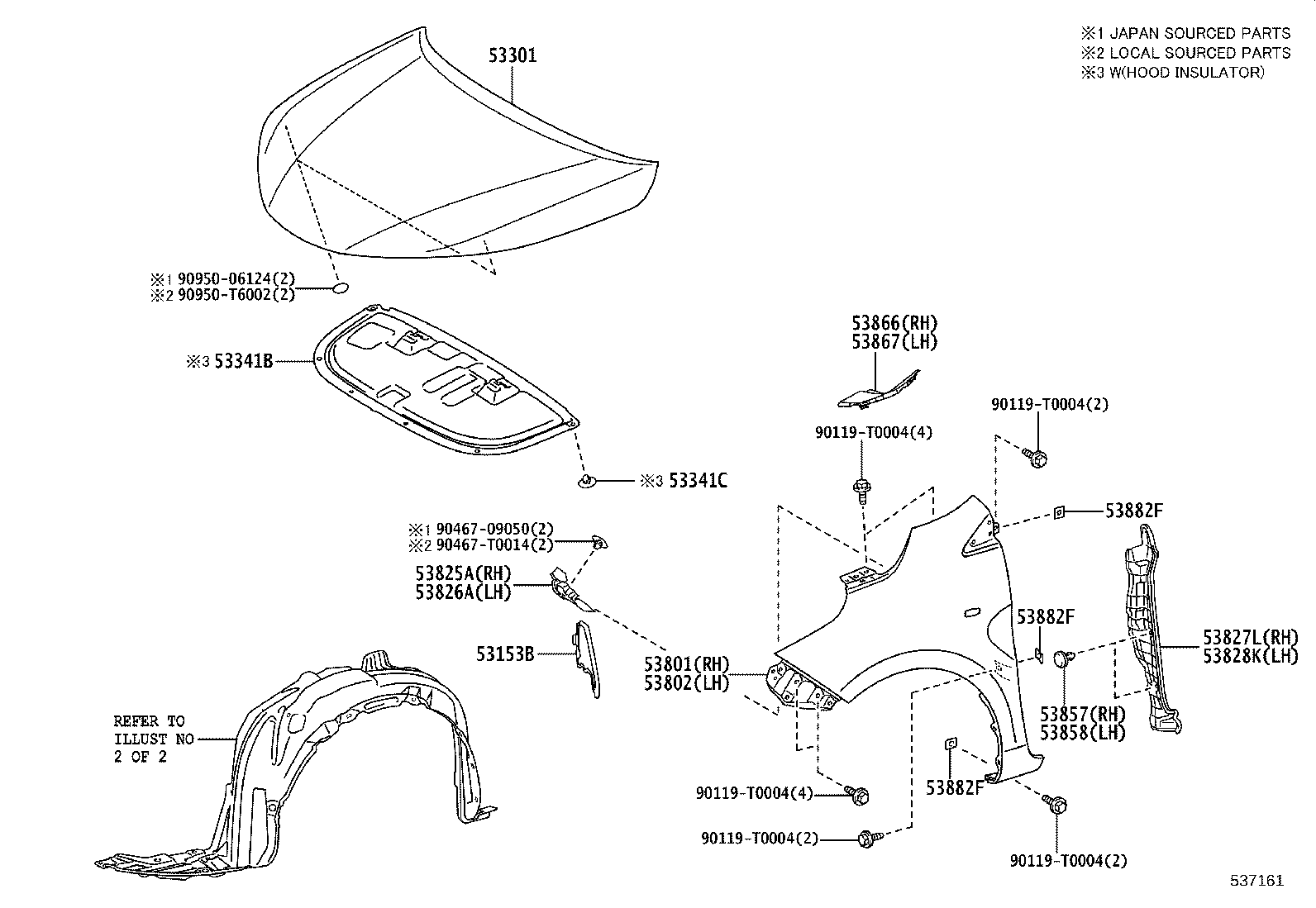

ILLUST NO. 1 OF 2(1709- )HTWC ; (1710- )GCC,GEN,PH,SA,VN..A; (1802- )C ; (1804- )F ; (1

Click highlighted areas on diagram

diagram 53153B 53301 53341B 53341C 53801 53802 53825A 53826A 53827L 53828K 53857 53858 53866 53867 53882F 53882F 53882F 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 9046709050 90467T0014 9095006124 90950T6002
Part # Description Qty Price
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

NSP151..(G,V)..C;NSP150..LHD..CVT..A;NSP150,151..5F..GEN..R;NSP151..CVT..(GEN,IDN)..R;NSP151,152..GCC,PH,SA,TH,VN

(J)

 6
90467-T0014

NSP151..(G,V)..C;NSP150..LHD..CVT..A;NSP150,151..5F..GEN..R;NSP151..CVT..(GEN,IDN)..R;NSP151,152..GCC,PH,SA,TH,VN

(L)

 6
53882F - SEAL, FRONT FENDER
53882-33060

NSP151..C

 6
53882-33060

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 6
53882F - SEAL, FRONT FENDER
53882-33060

NSP151..C

 6
53882-33060

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 6
53882F - SEAL, FRONT FENDER
53882-33060

NSP151..C

 6
53882-33060

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 6
Common parts
90119-T0004
90467-09050
90467-T0014
90950-06124
90950-T6002

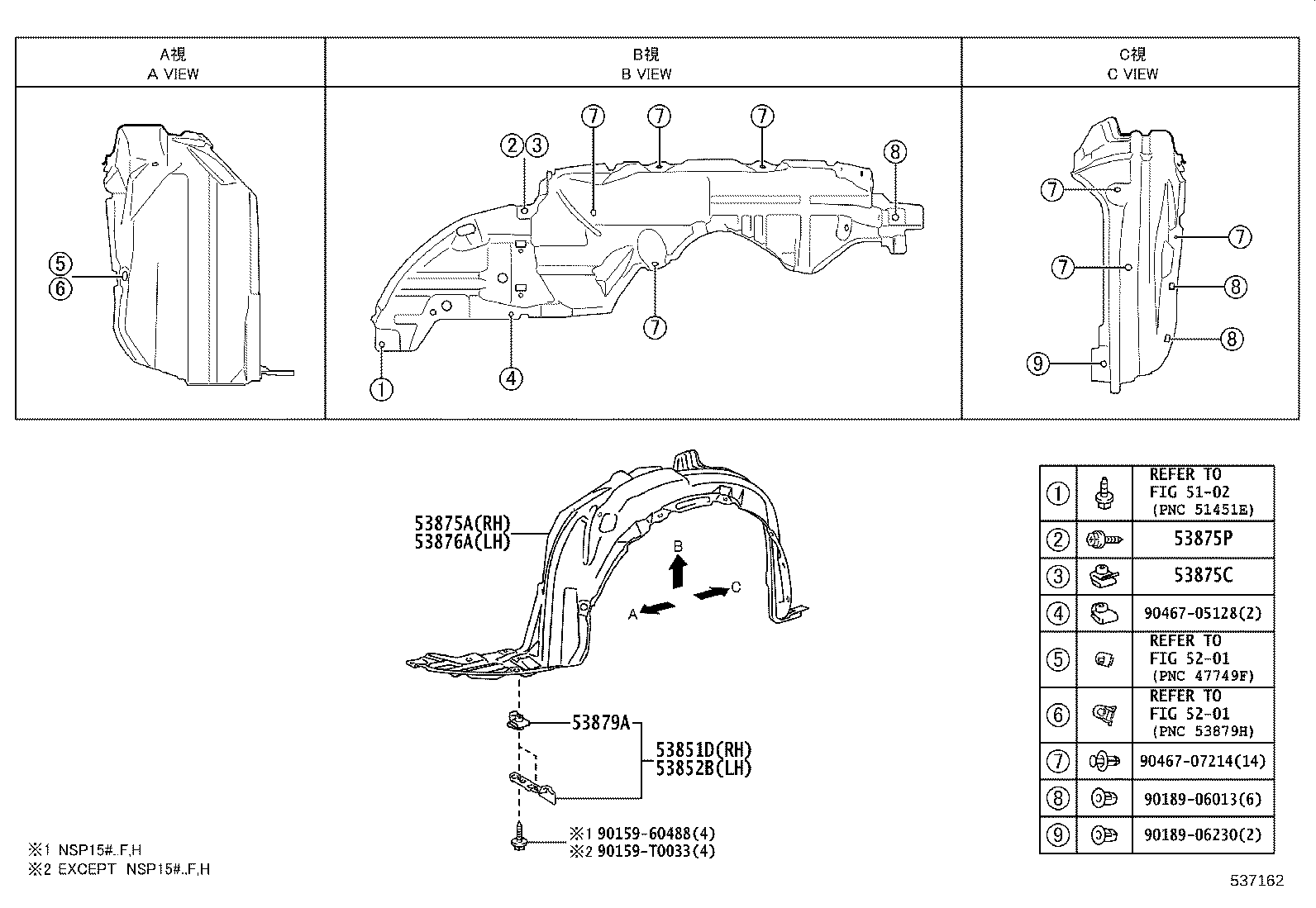

ILLUST NO. 2 OF 2(1709- )HTWC ; (1710- )GCC,GEN,PH,SA,VN..A; (1802- )C ; (1804- )F ; (1

Click highlighted areas on diagram

FENDER LINER

diagram 5102 5201 5201 53851D 53852B 53875A 53875C 53875P 53876A 53879A 9015960488 90159T0033 9018906013 9018906230 9046705128 9046707214
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0D090

NSP151..C

 1
53851-0D090

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-0D050

NSP151..C

 1
53852-0D050

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A

 1
53875C - CLIP, FRONT FENDER LINER
90467-05114

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 2
90467-05114

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 2
53875P - SCREW, NO.1
90159-T0033

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN

 2
90159-T0033

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A

 2
53879A - RETAINER, FRONT FENDER LINER
53879-17020

NSP151..C

 4
53879-17020

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 4
Common parts
90159-60488
90159-T0033
90189-06013
90189-06230
90467-05128
90467-07214
Linked diagrams
5102
5201
