NSP151R-AHXRKN (2017)
Toyota Yaris

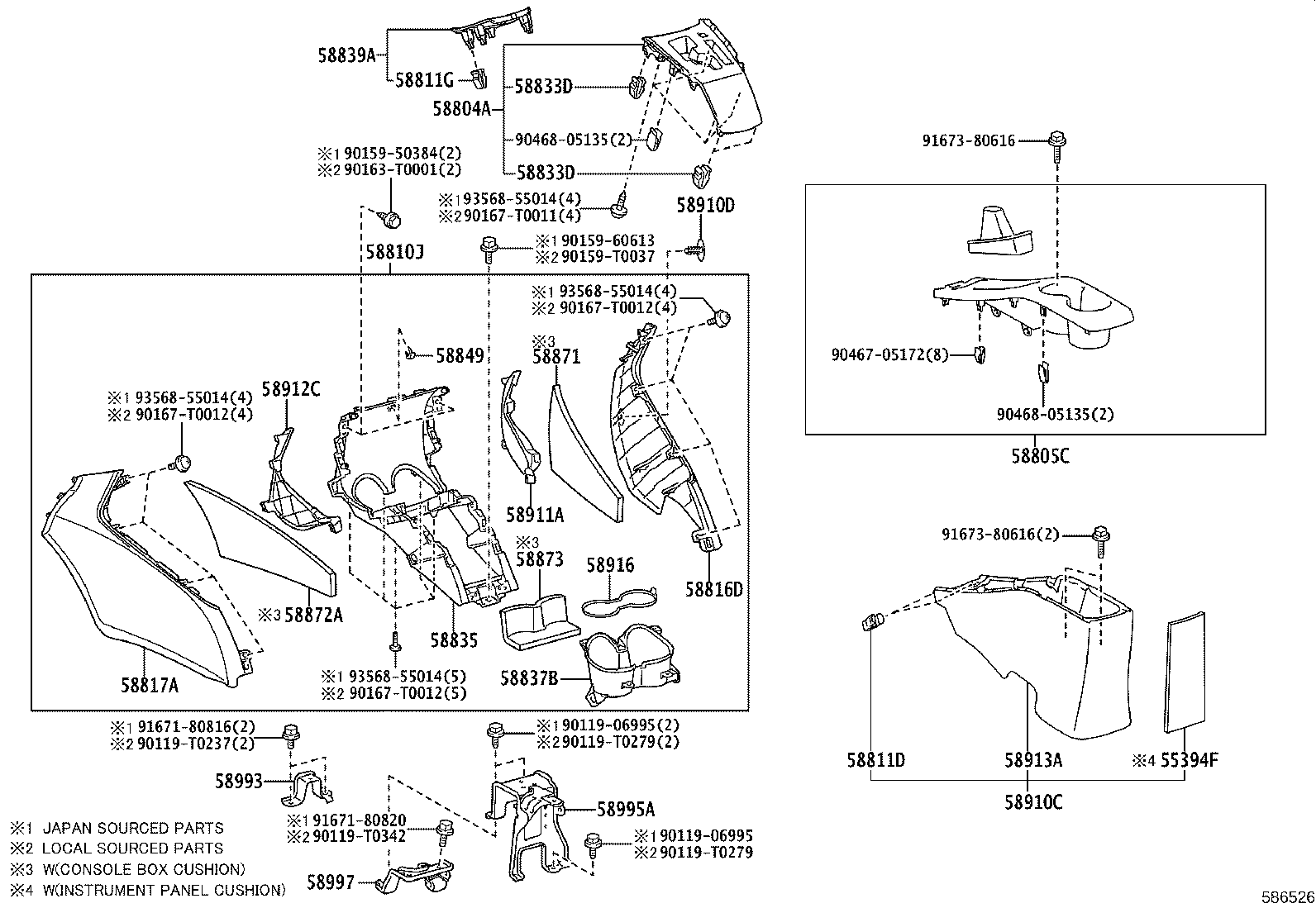

(1804- )F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55394F - CUSHION, INSTRUMENT PANEL, LOWER | ||||
| 55394-0D160 |
NSP150,151..(G,R,V)..H |
1 | ||
| 55394-0D200 |
NSP151..F |
1 | ||
| 55394-0D310 |
NSP151..SA..(R,V) |
1 | ||
| 55394-0D190 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0D620 |
NSP150..CVT..R..H;NSP151..CVT..D..H |
1 | ||
| 58804-0D630 |
NSP151..CVT..(G,V)..H |
1 | ||
| 58804-0D480 |
NSP151..R..F |
1 | ||
| 58804-0D390 |
NSP151..CVT..R..C |
1 | ||
| 58804-0D400 |
NSP151..CVT..R..C BRUNEI SPEC |
1 | ||
| 58804-0D490 |
NSP151..(G,V)..F |
1 | ||
| 58804-0D330 |
NSP151..CVT..SA |
1 | ||
| 58804-0D400 |
NSP151..CVT..(G,V)..C |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-0D270C1 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 58805-0D250C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58805-0D250C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-0D090C0 |
NSP150,151..(G,R,V)..H BLACK,TRIM2# |
1 | ||
| 58810-0D100C0 |
NSP150,151..D..H BLACK,TRIM2# |
1 | ||
| 58810-0D170C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58810-0D170C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58810-0D150C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58810-0D010C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-0D080C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58816-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58816-0D060C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58817-0D080C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58817-0D060C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58835 - PANEL, CONSOLE, UPPER | ||||
| 58164-0D160C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58164-0D160C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58837B - BOX, CONSOLE CUP HOLDER | ||||
| 58837-0D150C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58837-0D150C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58837-0D130C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-0D110C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 58839-0D080C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58839-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58839-0D060C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58849 - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-0D060C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 58849-0D040C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58849-0D040C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-0D130 |
NSP151..F |
1 | ||
| 58871-0D110 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-0D080 |
NSP151..F |
1 | ||
| 58872-0D060 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58873 - CUSHION, CONSOLE BOX, NO.3 | ||||
| 58873-0D040 |
NSP151..F |
1 | ||
| 58873-0D030 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-0D450C0 |
NSP150,151..D..H BLACK,TRIM2# |
1 | ||
| 58910-0D720C0 |
NSP151..GEN..G;NSP150,151..R..H BLACK,TRIM2# |
1 | ||
| 58910-0D480C2 |
NSP151..(PH,SA)..(G,V) BLACK/IVORY STITCH,TRIM2# |
1 | ||
| 58910-0D660C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58910-0D630C2 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 58910-0D660C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58910-0D650C1 |
NSP151..V..C BLACK/RED STITCH,TRIM2# |
1 | ||
| 58910-0D390C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 58910-0D750C0 |
NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58910-0D680C1 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 58910-0DA70C0 |
NSP151..V..A BLACK/BLUE,TRIM2# |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05164C7 |
NSP150,151..B,H BLACK,TRIM2# |
1 | ||
| 90467-T0004C4 |
NSP151..(G,R)..F BLACK,TRIM0#,2#,(L) |
1 | ||
| 90467-05164C7 |
NSP151..(G,R)..F BLACK,TRIM0#,2#,(J) |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-0D430C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58911-0D410C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58911-0D430C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-0D070C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58912-0D050C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58912-0D070C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-0D080C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58913-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-0D170 |
NSP150,151..H |
1 | ||
| 58916-0D150C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58916-0D140C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58916-0D150C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-0D030 |
NSP150,151..H |
1 | ||
| 58993-0D020 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58993-0D040 |
NSP151..F |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-0D190 |
NSP150,151..H |
1 | ||
| 58995-0D160 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58995-0D170 |
NSP151..F |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-0D110 |
NSP150,151..H |
1 | ||
| 58997-0D090 |
NSP151..F |
1 | ||
| 58997-0D080 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-T0237 | ||||
| 90119-T0279 | ||||
| 90119-T0342 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| 90159-T0037 | ||||
| 90163-T0001 | ||||
| 90167-T0011 | ||||
| 90167-T0012 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||

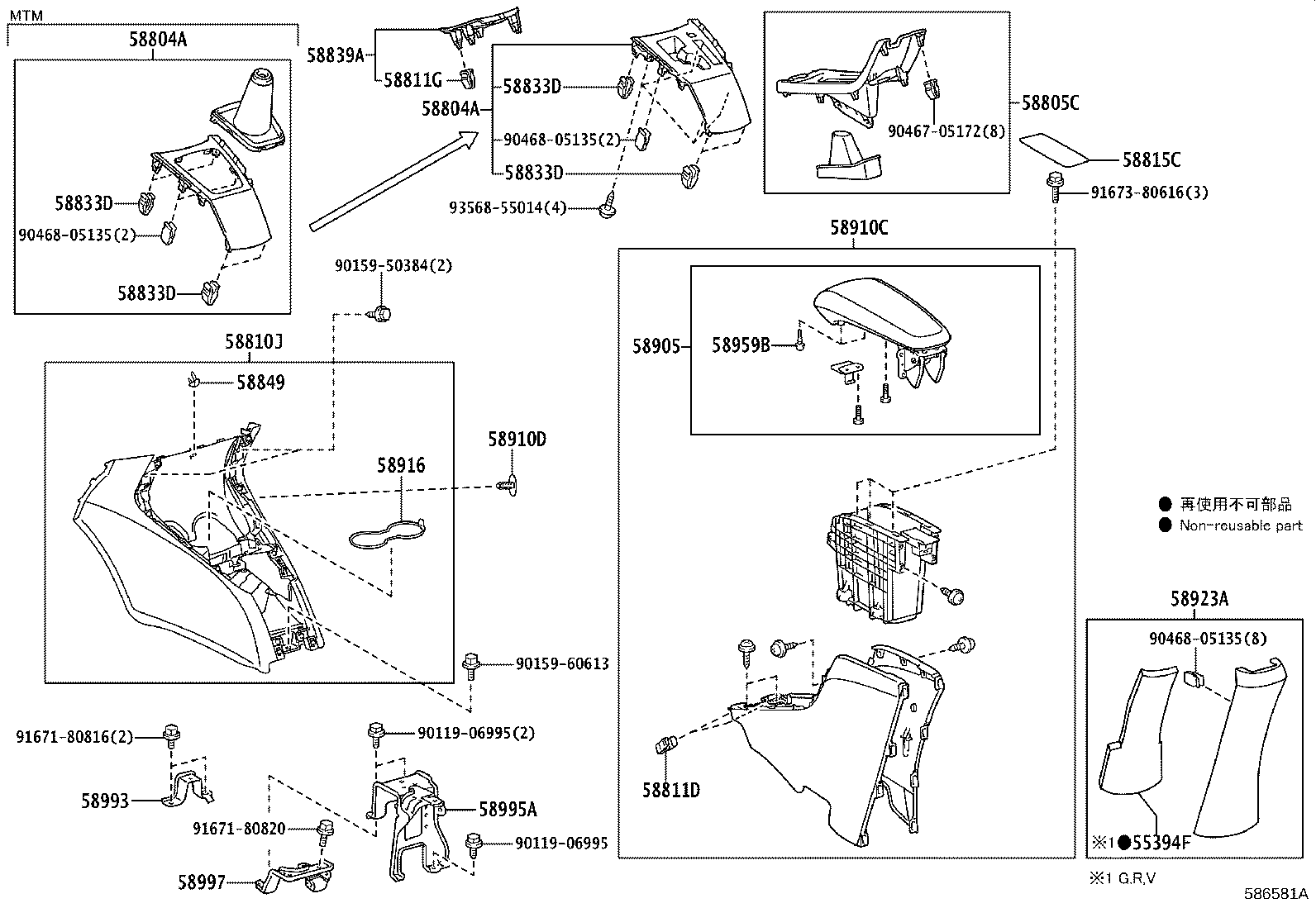

(1806- )H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55394F - CUSHION, INSTRUMENT PANEL, LOWER | ||||
| 55394-0D160 |
NSP150,151..(G,R,V)..H |
1 | ||
| 55394-0D200 |
NSP151..F |
1 | ||
| 55394-0D310 |
NSP151..SA..(R,V) |
1 | ||
| 55394-0D190 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0D620 |
NSP150..CVT..R..H;NSP151..CVT..D..H |
1 | ||
| 58804-0D630 |
NSP151..CVT..(G,V)..H |
1 | ||
| 58804-0D480 |
NSP151..R..F |
1 | ||
| 58804-0D390 |
NSP151..CVT..R..C |
1 | ||
| 58804-0D400 |
NSP151..CVT..R..C BRUNEI SPEC |
1 | ||
| 58804-0D490 |
NSP151..(G,V)..F |
1 | ||
| 58804-0D330 |
NSP151..CVT..SA |
1 | ||
| 58804-0D400 |
NSP151..CVT..(G,V)..C |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0D620 |
NSP150..CVT..R..H;NSP151..CVT..D..H |
1 | ||
| 58804-0D630 |
NSP151..CVT..(G,V)..H |
1 | ||
| 58804-0D480 |
NSP151..R..F |
1 | ||
| 58804-0D390 |
NSP151..CVT..R..C |
1 | ||
| 58804-0D400 |
NSP151..CVT..R..C BRUNEI SPEC |
1 | ||
| 58804-0D490 |
NSP151..(G,V)..F |
1 | ||
| 58804-0D330 |
NSP151..CVT..SA |
1 | ||
| 58804-0D400 |
NSP151..CVT..(G,V)..C |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-0D270C1 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 58805-0D250C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58805-0D250C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-0D090C0 |
NSP150,151..(G,R,V)..H BLACK,TRIM2# |
1 | ||
| 58810-0D100C0 |
NSP150,151..D..H BLACK,TRIM2# |
1 | ||
| 58810-0D170C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58810-0D170C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58810-0D150C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58810-0D010C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-0D380 |
NSP150,151..H |
1 | ||
| 58815-0D350 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-0D110C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 58839-0D080C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58839-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58839-0D060C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58849 - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-0D060C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 58849-0D040C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58849-0D040C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-0D120C0 |
NSP150,151..D..H BLACK,TRIM2# |
1 | ||
| 58905-0D140C2 |
NSP151..(PH,SA)..(G,V) BLACK/IVORY STITCH,TRIM2# |
1 | ||
| 58905-0D130C2 |
NSP151..SA..R;NSP150..CVT..PH BLACK,TRIM2# |
1 | ||
| 58905-0D100C2 |
NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58905-0D260C1 |
NSP151..V..C BLACK/RED STITCH,TRIM2# |
1 | ||
| 58905-0D140C4 |
NSP151..(PH,SA)..(G,V) BLACK/BLUE,TRIM2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-0D450C0 |
NSP150,151..D..H BLACK,TRIM2# |
1 | ||
| 58910-0D720C0 |
NSP151..GEN..G;NSP150,151..R..H BLACK,TRIM2# |
1 | ||
| 58910-0D480C2 |
NSP151..(PH,SA)..(G,V) BLACK/IVORY STITCH,TRIM2# |
1 | ||
| 58910-0D660C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58910-0D630C2 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 58910-0D660C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58910-0D650C1 |
NSP151..V..C BLACK/RED STITCH,TRIM2# |
1 | ||
| 58910-0D390C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 58910-0D750C0 |
NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58910-0D680C1 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 58910-0DA70C0 |
NSP151..V..A BLACK/BLUE,TRIM2# |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05164C7 |
NSP150,151..B,H BLACK,TRIM2# |
1 | ||
| 90467-T0004C4 |
NSP151..(G,R)..F BLACK,TRIM0#,2#,(L) |
1 | ||
| 90467-05164C7 |
NSP151..(G,R)..F BLACK,TRIM0#,2#,(J) |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-0D170 |
NSP150,151..H |
1 | ||
| 58916-0D150C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 58916-0D140C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58916-0D150C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-0D100C0 |
NSP150,151..D..H BLACK,TRIM2# |
1 | ||
| 58923-0D130C0 |
NSP150,151..(G,R,V)..H BLACK,TRIM2# |
1 | ||
| 58923-0D250C0 |
NSP151..SA..(R,V) BLACK,TRIM2# |
1 | ||
| 58923-0D080C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-0D030 |
NSP150,151..H |
1 | ||
| 58993-0D020 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58993-0D040 |
NSP151..F |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-0D190 |
NSP150,151..H |
1 | ||
| 58995-0D160 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 58995-0D170 |
NSP151..F |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-0D110 |
NSP150,151..H |
1 | ||
| 58997-0D090 |
NSP151..F |
1 | ||
| 58997-0D080 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
