NSP151R-AHXRKN (2017)
Toyota Yaris
ILLUST NO. 1 OF 2(1710- )F ; (1710- )LHD..AGT,BZ,GCC,GEN,PH,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
NSP150,151..H |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
NSP150,151..H |
2 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D310C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55302-0D290C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55302-0D290C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55302-0D270C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55302-0D200C0 |
NSP151..SA BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D201C0 |
NSP151,152..RHD..A BLACK,TRIM2# |
1 | ||
| 55303-0D250C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55303-0D230C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55303-0D250C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55303-0D270C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D470 |
NSP151..F |
1 | ||
| 55306-0D440 |
NSP150,151..H |
1 | ||
| 55306-0D410 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55308-0D130 |
NSP151..F |
1 | ||
| 55308-0D160 |
NSP150,151..H |
1 | ||
| 55308-0D100 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55318-0D300C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55318-0D280C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55318-0D280C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55317-0D290C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55317-0D310C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55317-0D320C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55318-0D260C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55317-0D320C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-0D250 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-0D250 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D830 |
NSP150,151..H |
1 | ||
| 55330-0D751 |
NSP151,152..RHD..A |
1 | ||
| 55330-0D780 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55330-0D810 |
NSP151..F |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D380 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
2 | ||
| 55349-0D400 |
NSP151..F |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D320 |
NSP150,151..GCC,SA |
1 | ||
| 55349-0D280 |
NSP151..F |
1 | ||
| 55349-0D300 |
NSP150,151..H |
1 | ||
| 55349-0D260 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D460 |
NSP150,151..H |
1 | ||
| 55355-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55355-0D430 |
NSP151..F |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP151..C |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP151..C |
4 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NSP151..C |
2 | ||
| 55557-52030 |
NSP151..A,H;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R |
2 | ||
| 55557-52030 |
NSP151..F |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D170 |
NSP151..F |
1 | ||
| 73960-0D230 |
NSP150,151..H |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-T0041 | ||||
| 90105-T0194 | ||||
| 90119-08516 | ||||
| 90119-08C11 | ||||
| 90119-T0106 | ||||
| 90119-T0314 | ||||
| 90119-T0321 | ||||
| 90159-50388 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0009 | ||||
| 90159-T0014 | ||||
| 90159-T0037 | ||||
| 90167-T0011 | ||||
| 90167-T0012 | ||||
| 90178-T0007 | ||||
| 90178-T0019 | ||||
| 90179-06274 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 91553-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

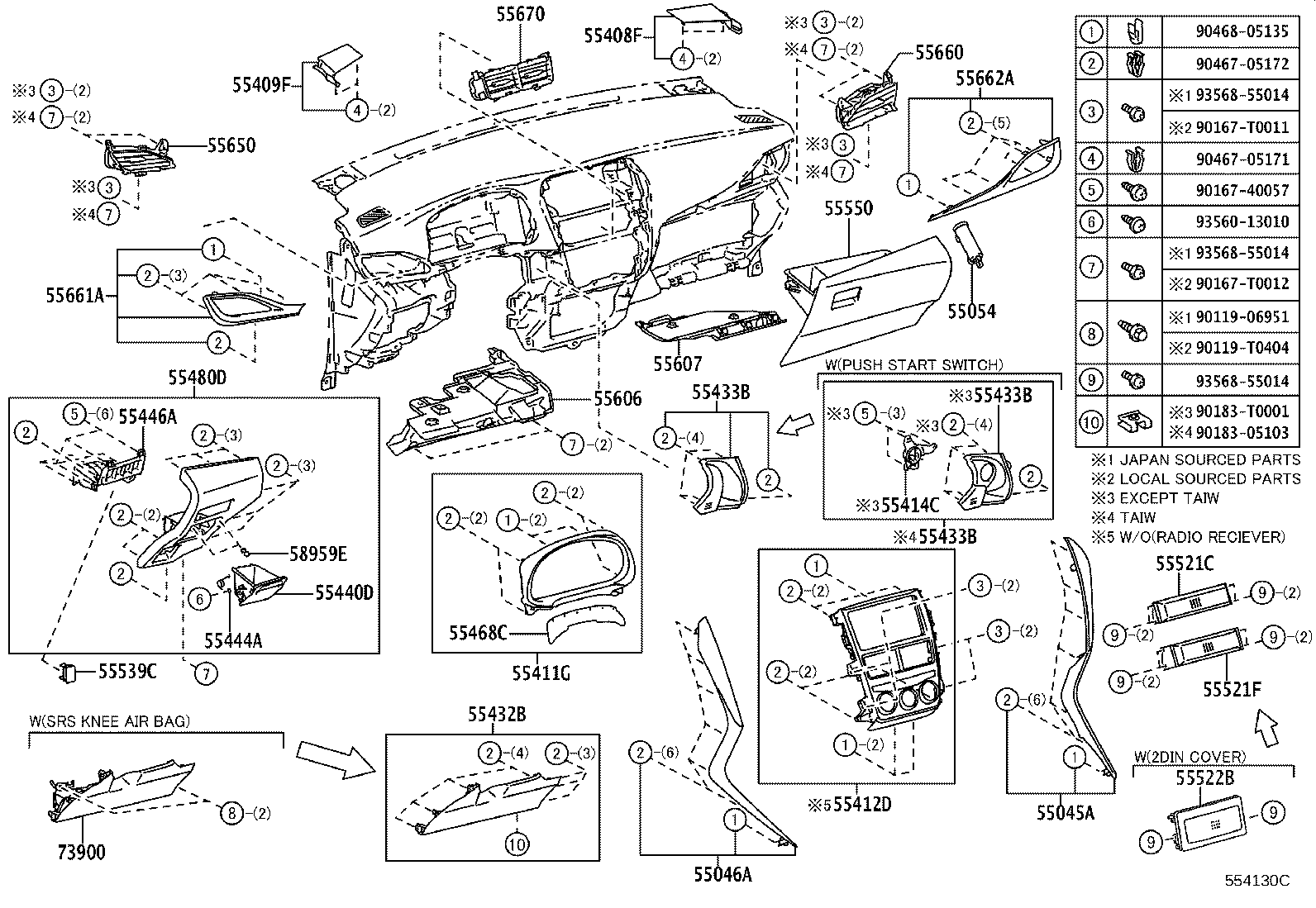

ILLUST NO. 2 OF 2(1710- )F ; (1710- )LHD..GCC,GEN,PH,VN..A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-0D090 |
NSP151..(G,R)..C |
1 | ||
| 55045-52060 |
NSP151..RHD..V..(A,C) |
1 | ||
| 55045-0D170 |
NSP151,152..RHD..(D,R)..A |
1 | ||
| 55045-0D200 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 55046-0D120 |
NSP151..(G,R)..F |
1 | ||
| 55045-52090 |
NSP151..V..(A,C) |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-52010 |
NSP151..RHD..V..(A,C) |
1 | ||
| 55046-0D070 |
NSP151..(G,R)..C |
1 | ||
| 55045-0D140 |
NSP151..(G,R)..F |
1 | ||
| 55046-52030 |
NSP151..V..(A,C) |
1 | ||
| 55046-0D180 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 55046-0D150 |
NSP151,152..RHD..(D,R)..A |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-0K030 |
NSP151,152..A;NSP150..5F..GEN..R;NSP150..LHD..CVT..A |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-0D040C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55408-0D060C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55408-0D030C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55408-0D040C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-0D060C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55409-0D080C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55409-0D050C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55409-0D060C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55410-0D240C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55410-0D220C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55410-0D260C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55410-0D240C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0DA90 |
NSP151..F |
1 | ||
| 55405-0DB00 |
NSP151..F |
1 | ||
| 55405-0DB30 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 55405-0DA80 |
NSP151..SA..R |
1 | ||
| 55414C - BEZEL, STARTER SWITCH | ||||
| 55414-0D020C0 |
NSP151..SA BLACK,TRIM2# |
1 | ||
| 55414-0D040C0 |
NSP151..V..C BLACK,TRIM2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D210C0 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 55432-0D260A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55432-0D210C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 55432-0D260C0 |
NSP151..(G,R)..F BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D330C0 |
NSP151..AGT..G;NSP150,151..(D,R)..H BLACK,TRIM2# |
1 | ||
| 55433-0D360C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55433-0D310A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55433-0D310C0 |
NSP151..(G,R)..F BLACK,TRIM2# |
1 | ||
| 55433-0D290C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D330C0 |
NSP151..AGT..G;NSP150,151..(D,R)..H BLACK,TRIM2# |
1 | ||
| 55433-0D360C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55433-0D310A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55433-0D310C0 |
NSP151..(G,R)..F BLACK,TRIM2# |
1 | ||
| 55433-0D290C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D330C0 |
NSP151..AGT..G;NSP150,151..(D,R)..H BLACK,TRIM2# |
1 | ||
| 55433-0D360C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55433-0D310A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55433-0D310C0 |
NSP151..(G,R)..F BLACK,TRIM2# |
1 | ||
| 55433-0D290C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-0D100C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55440-0D230C0 |
NSP151,152..RHD..A BLACK,TRIM2# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D300 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0D110C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55446-0D240C0 |
NSP151,152..RHD..A BLACK,TRIM2# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D280 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-0D100C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55480-0D110C0 |
NSP151..SA;NSP150..5F..G BLACK,TRIM2# |
1 | ||
| 55480-0D080A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55480-0D080C0 |
NSP151..F BLACK,TRIM2# |
1 | ||
| 55480-0D060C0 |
NSP151..5F..G;NSP151..CVT..(G,R)..C BLACK,TRIM2# |
1 | ||
| 55480-0D120C0 |
NSP151..V..C BLACK,TRIM2# |
1 | ||
| 55480-0D280C0 |
NSP151..SA BLACK,TRIM2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-12190 |
NSP151..SA..(R,V) |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-05030 |
NSP151..SA..(R,V) |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55539-0D160C1 |
NSP151..CVT..R..C BRUNEI SPEC,BLACK,TRIM2# |
1 | ||
| 55539-06130 |
NSP151,152..RHD..A |
1 | ||
| 55539-0D160C1 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D400C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55550-0D360C0 |
NSP151..F BLACK,TRIM2# |
1 | ||
| 55550-0D360A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55550-0D370C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D250 |
NSP150,151..H |
1 | ||
| 55606-0D210 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55606-0D230 |
NSP151..F |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D260 |
NSP150,151..H |
1 | ||
| 55607-0D240 |
NSP151..F |
1 | ||
| 55607-0D220 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D590 |
NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H |
1 | ||
| 55660-0D530 |
NSP151..F |
1 | ||
| 55650-0D640 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-0D680 |
NSP151..F |
1 | ||
| 55660-0D490 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55660-0D440 |
NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55011-0D130 |
NSP151..(G,R,V)..H |
1 | ||
| 55661-0D240 |
NSP151..C SILVER PAINTED |
1 | ||
| 55661-0D280 |
NSP151..F SILVER PAINTED |
1 | ||
| 55661-0D190C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 55661-0D110 |
NSP151,152..RHD..(R,V)..A |
1 | ||
| 55661-0D310 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55012-0D130 |
NSP151..(G,R,V)..H |
1 | ||
| 55662-0D180 |
NSP151..F SILVER PAINTED |
1 | ||
| 55662-0D090C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 55662-0D200 |
NSP151,152..RHD..(R,V)..A |
1 | ||
| 55662-0D330 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55662-0D140 |
NSP151..C SILVER PAINTED |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0D480 |
NSP151..(G,R,V)..H |
1 | ||
| 55670-0D410 |
NSP151..F |
1 | ||
| 55670-0D410 |
NSP151..VN..R;NSP150..CVT..(GCC,PH);NSP151..(GCC,SA)..(G,R) |
1 | ||
| 55670-0D490 |
NSP151..D..A |
1 | ||
| 55670-0D430 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 55670-0D520 |
NSP151..V..C |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D070C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 73900-0D060C0 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 73900-0D070C0 |
NSP151..V..H;NSP150,151..CVT..(AGT,PH)..(G,R) BLACK,TRIM2# |
1 | ||
| 73900-0D090C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90167-40057 | ||||
| 90167-T0011 | ||||
| 90167-T0012 | ||||
| 90183-05103 | ||||
| 90183-T0001 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 93560-13010 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(1806- )H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-0D090 |
NSP151..(G,R)..C |
1 | ||
| 55045-52060 |
NSP151..RHD..V..(A,C) |
1 | ||
| 55045-0D170 |
NSP151,152..RHD..(D,R)..A |
1 | ||
| 55045-0D200 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 55046-0D120 |
NSP151..(G,R)..F |
1 | ||
| 55045-52090 |
NSP151..V..(A,C) |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-52010 |
NSP151..RHD..V..(A,C) |
1 | ||
| 55046-0D070 |
NSP151..(G,R)..C |
1 | ||
| 55045-0D140 |
NSP151..(G,R)..F |
1 | ||
| 55046-52030 |
NSP151..V..(A,C) |
1 | ||
| 55046-0D180 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 55046-0D150 |
NSP151,152..RHD..(D,R)..A |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-0K030 |
NSP151,152..A;NSP150..5F..GEN..R;NSP150..LHD..CVT..A |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-0D040C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55408-0D060C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55408-0D030C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55408-0D040C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-0D060C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55409-0D080C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55409-0D050C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55409-0D060C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55410-0D240C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 55410-0D220C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55410-0D260C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55410-0D240C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D210C0 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 55432-0D260A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55432-0D210C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 55432-0D260C0 |
NSP151..(G,R)..F BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D330C0 |
NSP151..AGT..G;NSP150,151..(D,R)..H BLACK,TRIM2# |
1 | ||
| 55433-0D360C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55433-0D310A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55433-0D310C0 |
NSP151..(G,R)..F BLACK,TRIM2# |
1 | ||
| 55433-0D290C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D330C0 |
NSP151..AGT..G;NSP150,151..(D,R)..H BLACK,TRIM2# |
1 | ||
| 55433-0D360C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 55433-0D310A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55433-0D310C0 |
NSP151..(G,R)..F BLACK,TRIM2# |
1 | ||
| 55433-0D290C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-0D100C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55480-0D110C0 |
NSP151..SA;NSP150..5F..G BLACK,TRIM2# |
1 | ||
| 55480-0D080A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55480-0D080C0 |
NSP151..F BLACK,TRIM2# |
1 | ||
| 55480-0D060C0 |
NSP151..5F..G;NSP151..CVT..(G,R)..C BLACK,TRIM2# |
1 | ||
| 55480-0D120C0 |
NSP151..V..C BLACK,TRIM2# |
1 | ||
| 55480-0D280C0 |
NSP151..SA BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D270C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55539-0D160C1 |
NSP151..CVT..R..C BRUNEI SPEC,BLACK,TRIM2# |
1 | ||
| 55539-06130 |
NSP151,152..RHD..A |
1 | ||
| 55539-0D160C1 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C1 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D400C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 55550-0D360C0 |
NSP151..F BLACK,TRIM2# |
1 | ||
| 55550-0D360A0 |
NSP151..(G,R)..F IVORY,TRIM0# |
1 | ||
| 55550-0D370C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D250 |
NSP150,151..H |
1 | ||
| 55606-0D210 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55606-0D230 |
NSP151..F |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D260 |
NSP150,151..H |
1 | ||
| 55607-0D240 |
NSP151..F |
1 | ||
| 55607-0D220 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D590 |
NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H |
1 | ||
| 55660-0D530 |
NSP151..F |
1 | ||
| 55650-0D640 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-0D680 |
NSP151..F |
1 | ||
| 55660-0D490 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55660-0D440 |
NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55011-0D130 |
NSP151..(G,R,V)..H |
1 | ||
| 55661-0D240 |
NSP151..C SILVER PAINTED |
1 | ||
| 55661-0D280 |
NSP151..F SILVER PAINTED |
1 | ||
| 55661-0D190C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 55661-0D110 |
NSP151,152..RHD..(R,V)..A |
1 | ||
| 55661-0D310 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55012-0D130 |
NSP151..(G,R,V)..H |
1 | ||
| 55662-0D180 |
NSP151..F SILVER PAINTED |
1 | ||
| 55662-0D090C0 |
NSP151..SA..D BLACK,TRIM2# |
1 | ||
| 55662-0D200 |
NSP151,152..RHD..(R,V)..A |
1 | ||
| 55662-0D330 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 55662-0D140 |
NSP151..C SILVER PAINTED |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0D480 |
NSP151..(G,R,V)..H |
1 | ||
| 55670-0D410 |
NSP151..F |
1 | ||
| 55670-0D410 |
NSP151..VN..R;NSP150..CVT..(GCC,PH);NSP151..(GCC,SA)..(G,R) |
1 | ||
| 55670-0D490 |
NSP151..D..A |
1 | ||
| 55670-0D430 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 55670-0D520 |
NSP151..V..C |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D070C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 73900-0D060C0 |
NSP151..SA..R BLACK,TRIM2# |
1 | ||
| 73900-0D070C0 |
NSP151..V..H;NSP150,151..CVT..(AGT,PH)..(G,R) BLACK,TRIM2# |
1 | ||
| 73900-0D090C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90183-05103 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
