NSP151R-AHXRKN (2017)
Toyota Yaris
(1806- )H

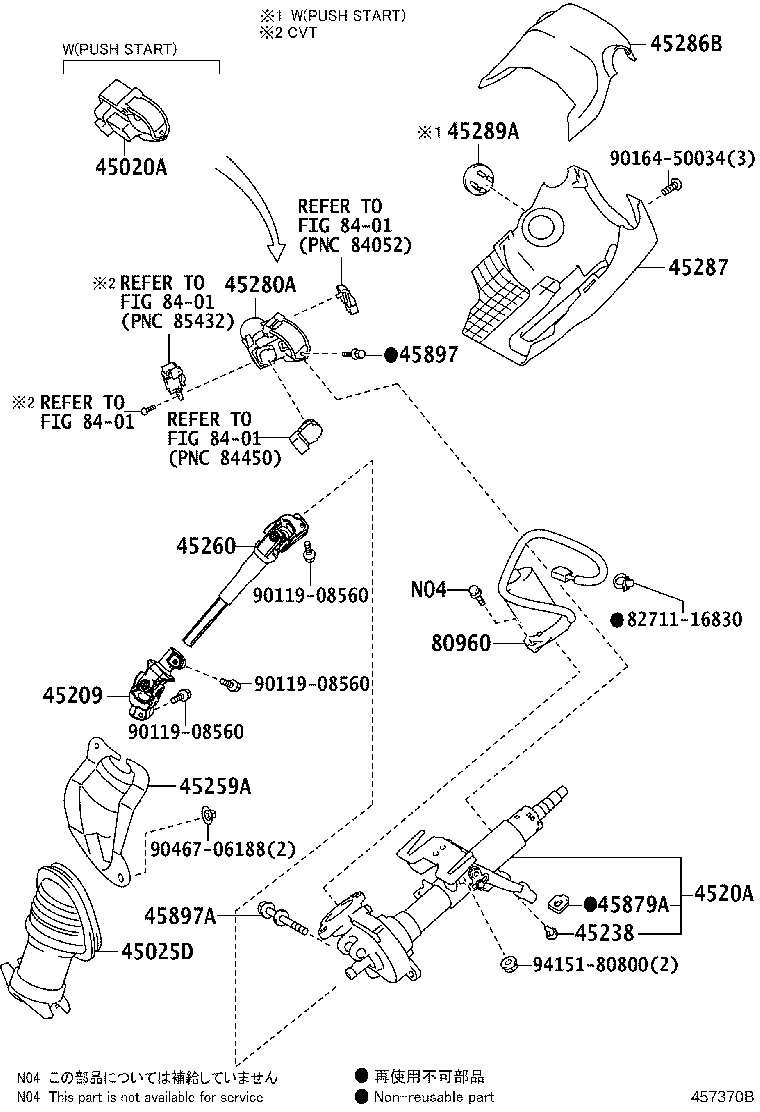

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-0K190 |
NSP151..PH,SA;NSP150,151..CVT..(GEN,VN)..G..A |
1 | ||
| 45020-0K210 |
NSP151..V..C |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0D190 |
NSP151..C |
1 | ||
| 45025-0D230 |
NSP150,151..H |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-0D130 |
NSP150,151..H |
1 | ||
| 45209-0D100 |
NSP151..F |
1 | ||
| 45209-0D050 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-0D500 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
1 | ||
| 4520A-0D410 |
NSP151..(G,R)..C |
1 | ||
| 4520A-0D380 |
NSP151..SA;NSP150..5F..G |
1 | ||
| 4520A-0D460 |
NSP151..(G,R)..F |
1 | ||
| 4520A-0D420 |
NSP151..V..C |
1 | ||
| 4520A-0D381 |
NSP151..SA |
1 | ||
| 4520A-0D470 |
NSP151..V..F |
1 | ||
| 4520A-0D411 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 4520A-0D421 |
NSP151..V..C |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-0D160 |
NSP151..C |
1 | ||
| 45259-0D240 |
NSP150,151..H |
1 | ||
| 45259-0D270 |
NSP151..F |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-0D270 |
NSP150,151..H |
1 | ||
| 45260-0D150 |
NSP151..C |
1 | ||
| 45260-0D260 |
NSP151..F |
1 | ||
| 45260-0D151 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 45260-0D211 |
NSP151,152..RHD..A |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-0D190 |
NSP151..(G,R)..F |
1 | ||
| 45280-0D270 |
NSP151..CVT..AGT..G;NSP150,151..CVT..(D,R)..H |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-0D311C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45286-0D310C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45286-0D330C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 45286-0D330C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 45286-0D340C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-0D280C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45287-0D281C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45287-0D300C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 45287-0D300C0 |
NSP151..(G,R)..F BLACK,TRIM0#,2# |
1 | ||
| 45287-0D310C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 45289-0D020C0 |
NSP151..PH,SA BLACK,TRIM2# |
1 | ||
| 45289-0D130C0 |
NSP151..V..C BLACK,TRIM2# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-0D060 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
2 | ||
| 45879-52010 |
NSP150,151..H |
2 | ||
| 45879-0D070 |
NSP151..F |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NSP151..C |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
NSP151..C |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-0D370 |
NSP151..F |
1 | ||
| 80960-0D300 |
NSP150,151..H |
1 | ||
| 80960-0D340 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
