NSP151L-HHFGK (2018)

Toyota Yaris

Production Jun 2018 - Oct 2019
Engine 2NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )AGT..G,R ; (1806- )BZ,GEN..H

Click highlighted areas on diagram

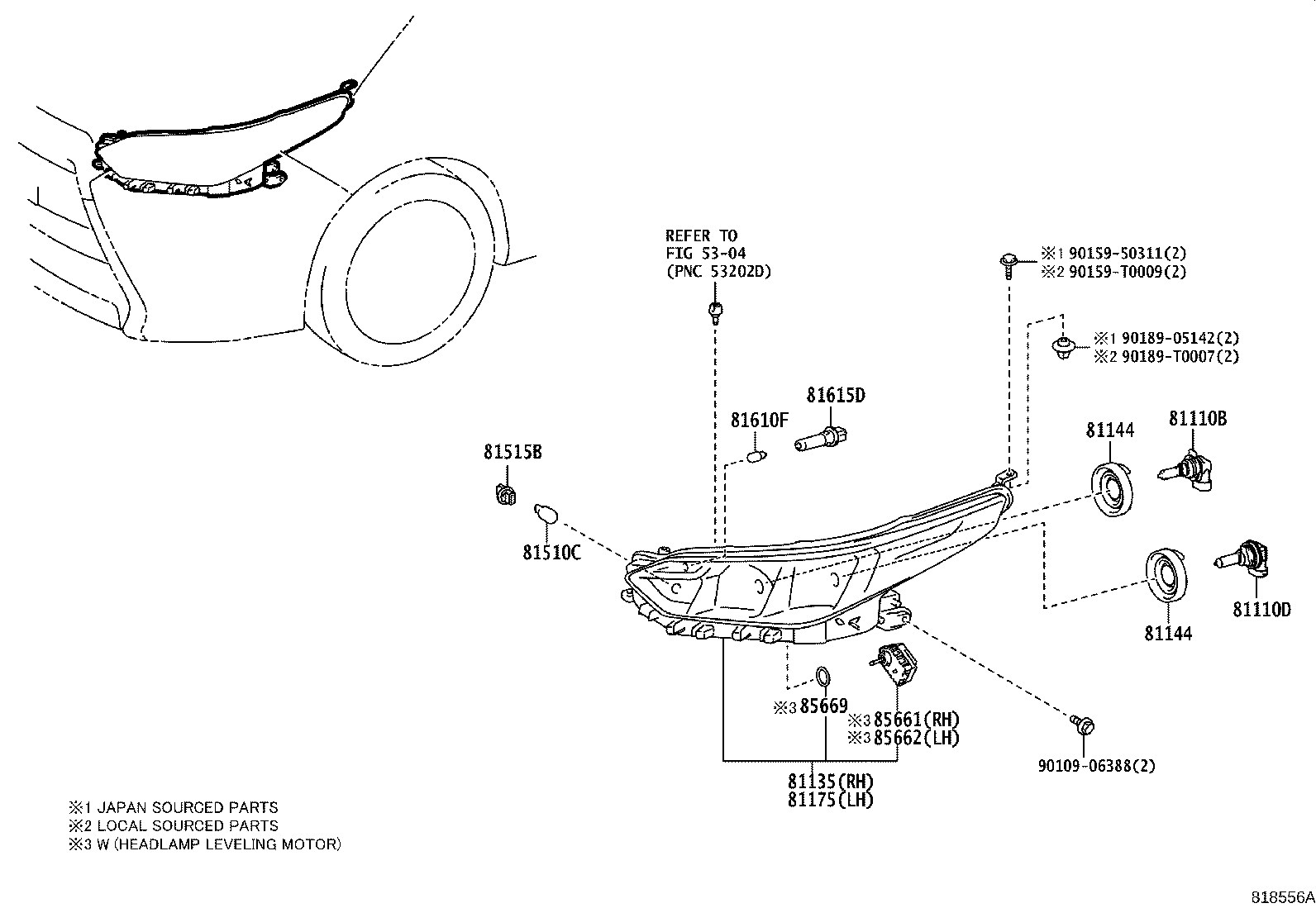

HALOGEN(MULTI REFLECTOR TYPE)

diagram 5304 81110B 81110D 81135 81144 81144 81175 81510C 81515B 81610F 81615D 85661 85662 85669 9010906388 9015950311 90159T0009 9018905142 90189T0007
Part # Description Qty Price
81135 - UNIT ASSY, HEADLAMP, RH
81130-0DL00

NSP151..R..H;NSP150,151..BZ..(D,G,R)

 1
81130-0DJ00

NSP151..GEN..H

 1
81130-0DJ20

NSP151..GEN..G

SPORT PACKAGE(*RCL(LED TYPE))

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0DL00

NSP151..R..H;NSP150,151..BZ..(D,G,R)

 1
81170-0DJ20

NSP151..GEN..G

SPORT PACKAGE(*RCL(LED TYPE))

 1
81170-0DJ00

NSP151..GEN..H

 1
Common parts
90109-06388
90159-50311
90159-T0009
90189-05142
90189-T0007
Linked diagrams
5304

(1806- )AGT..V ; (1806- )NSP151..BZ,GEN..G

Click highlighted areas on diagram

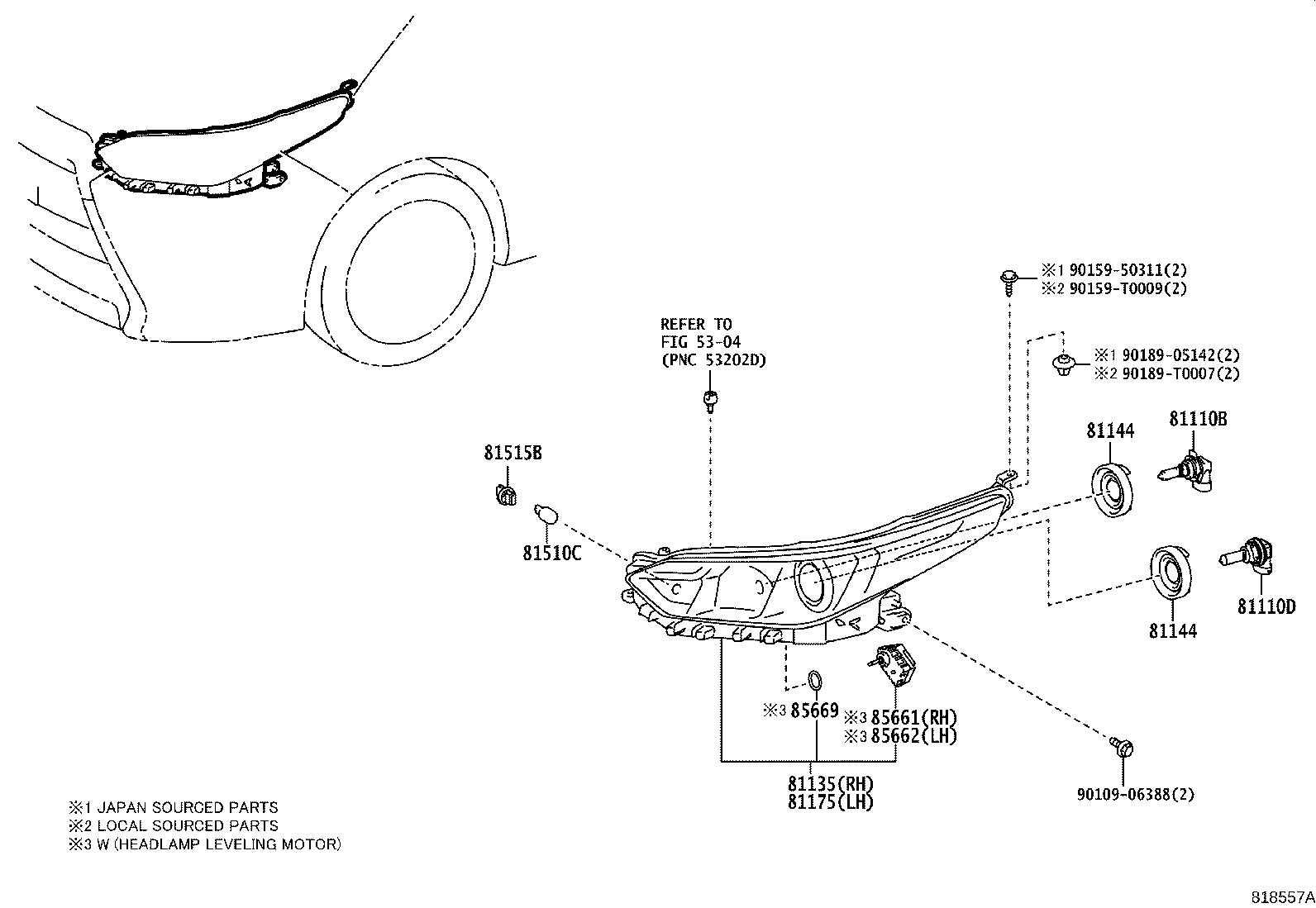

HALOGEN(PROJECTOR TYPE)

diagram 5304 81110B 81110D 81135 81144 81144 81175 81510C 81515B 85661 85662 85669 9010906388 9015950311 90159T0009 9018905142 90189T0007
Part # Description Qty Price
81135 - UNIT ASSY, HEADLAMP, RH
81130-0DL00

NSP151..R..H;NSP150,151..BZ..(D,G,R)

 1
81130-0DJ00

NSP151..GEN..H

 1
81130-0DJ20

NSP151..GEN..G

SPORT PACKAGE(*RCL(LED TYPE))

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0DL00

NSP151..R..H;NSP150,151..BZ..(D,G,R)

 1
81170-0DJ20

NSP151..GEN..G

SPORT PACKAGE(*RCL(LED TYPE))

 1
81170-0DJ00

NSP151..GEN..H

 1
Common parts
90109-06388
90159-50311
90159-T0009
90189-05142
90189-T0007
Linked diagrams
5304
