NSP151L-HHFGGG (2018)
Toyota Yaris
Production
Jun 2018
-
Oct 2019
Engine
2NRFBE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

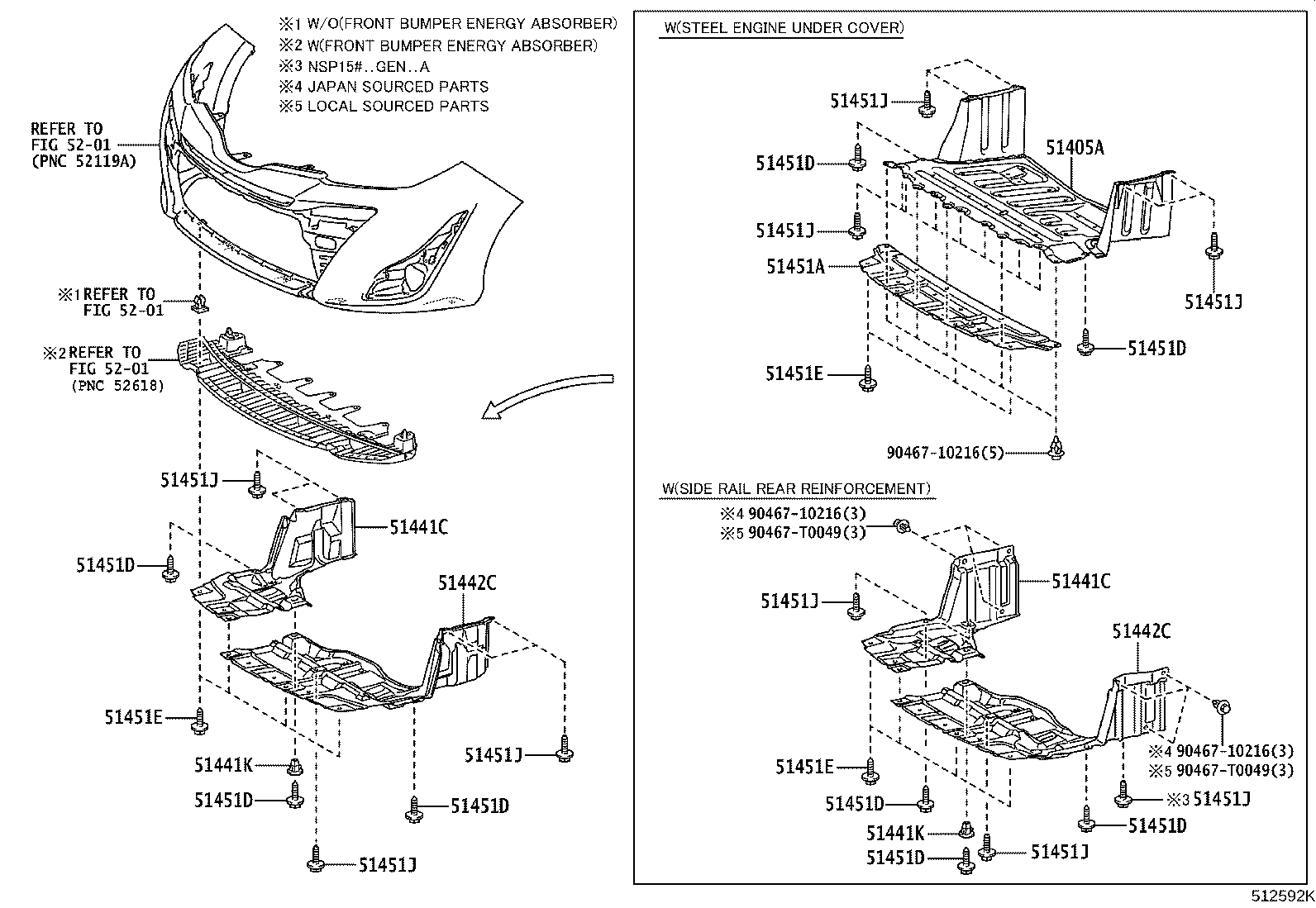

ILLUST NO. 1 OF 2(1310- )
Click highlighted areas on diagram
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-0D500 |
NSP150,151..H |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-0D500 |
NSP150,151..H |
1 | ||
| 51441K - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06076 |
NSP152..HTWCB;NSP150,151..6F |
1 | ||
| 51441K - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06076 |
NSP152..HTWCB;NSP150,151..6F |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-0D310 |
NSP150,151..H |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-0D310 |
NSP150,151..H |
1 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60488 |
NSP150,151..H |
4 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60488 |
NSP150,151..H |
4 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60488 |
NSP150,151..H |
4 | ||
| Common parts | ||||
| 90467-10216 | ||||
| 90467-T0049 | ||||
| Linked diagrams | ||||
| 5201 | ||||
ILLUST NO. 2 OF 2(1310- )
Click highlighted areas on diagram
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-0D050 |
NSP150,151..6F |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-0D050 |
NSP150,151..6F |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-0D250 |
NSP150,151..6F |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-0D250 |
NSP150,151..6F |
1 | ||
| Common parts | ||||
| 90105-T0174 | ||||
| 90119-12389 | ||||
| 90119-12391 | ||||
| 90119-T0351 | ||||
| 90119-T0352 | ||||
| 91552-K1025 | ||||
