NSP151L-HHFGGG (2018)

Toyota Yaris

Production Jun 2018 - Oct 2019
Engine 2NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )6F

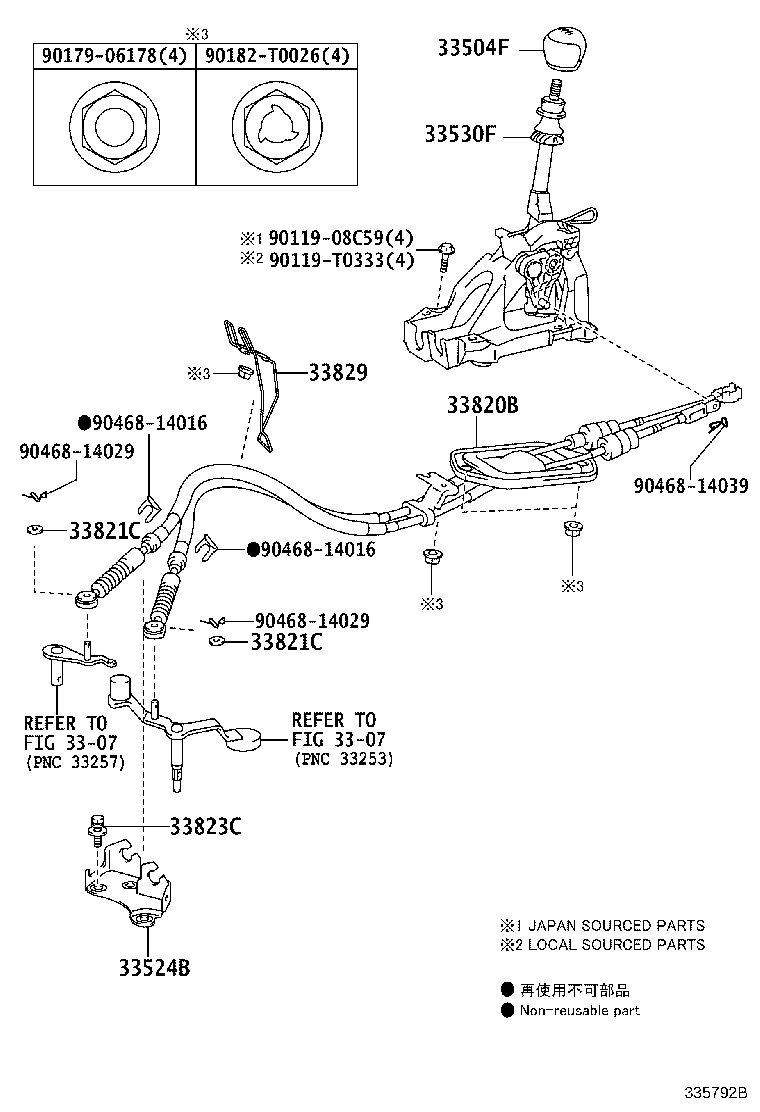

Click highlighted areas on diagram

diagram 3307 3307 33504F 33524B 33530F 33820B 33821C 33821C 33823C 33829 9011908C59 90119T0333 9017906178 90182T0026 9046814016 9046814016 9046814029 9046814029 9046814039
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D720C0

NSP150,151..6F..R;NSP151..6F..GEN..G

BLACK,TRIM2#

 1
33504-0D720C0

NSP151..6F..BZ

PARAGUAY SPEC,BLACK,TRIM2#

 1
33504-0D610C0

NSP151..6F..(AGT,BZ)..(G,V)

BLACK,TRIM2#

 1
33504-0D600C0

NSP150,151..6F..D

BLACK,TRIM2#

 1
33524B - BRACKET, CONTROL CABLE
33524-0D180

NSP150,151..6F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0D260

NSP150,151..6F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0D760

NSP150,151..6F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

NSP150,151..6F

 3
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-0D160

NSP150,151..6F

 1
Common parts
90119-08C59
90119-T0333
90179-06178
90182-T0026
90468-14016
90468-14029
90468-14039
Linked diagrams
3307
