NSP151L-HHFGGG (2018)

Toyota Yaris

Production Jun 2018 - Oct 2019
Engine 2NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )A,B,C,F

Click highlighted areas on diagram

diagram 09110 09113 09118 09118 09120 09130 09135 09141 09141 09150 09155 09184 44890D 51960 58379K C6048
Part # Description Qty Price
09110 - JACK ASSY
09111-0D210

NSP150,151..H

 1
09113 - HANDLE, JACK
09113-02040

NSP150,151..H

 1
09120 - BAG, TOOL
09120-0D060

NSP150,151..H

 1
09150 - WRENCH, HUB NUT BOX
09150-02010

NSP150,151..H

 1
51960 - HOOK ASSY, FRONT
51960-0D240

NSP150,151..H

 1
58379K - PROTECTOR, BODY LOWER BACK
58379-0D100

NSP150,151..H

 1

ILLUST NO. 1 OF 2(1806- )H

Click highlighted areas on diagram

diagram 09110 09113 09118 09118 09120 09150 51960 58379K
Part # Description Qty Price
09110 - JACK ASSY
09111-0D210

NSP150,151..H

 1
09113 - HANDLE, JACK
09113-02040

NSP150,151..H

 1
09120 - BAG, TOOL
09120-0D060

NSP150,151..H

 1
09150 - WRENCH, HUB NUT BOX
09150-02010

NSP150,151..H

 1
51960 - HOOK ASSY, FRONT
51960-0D240

NSP150,151..H

 1
58379K - PROTECTOR, BODY LOWER BACK
58379-0D100

NSP150,151..H

 1

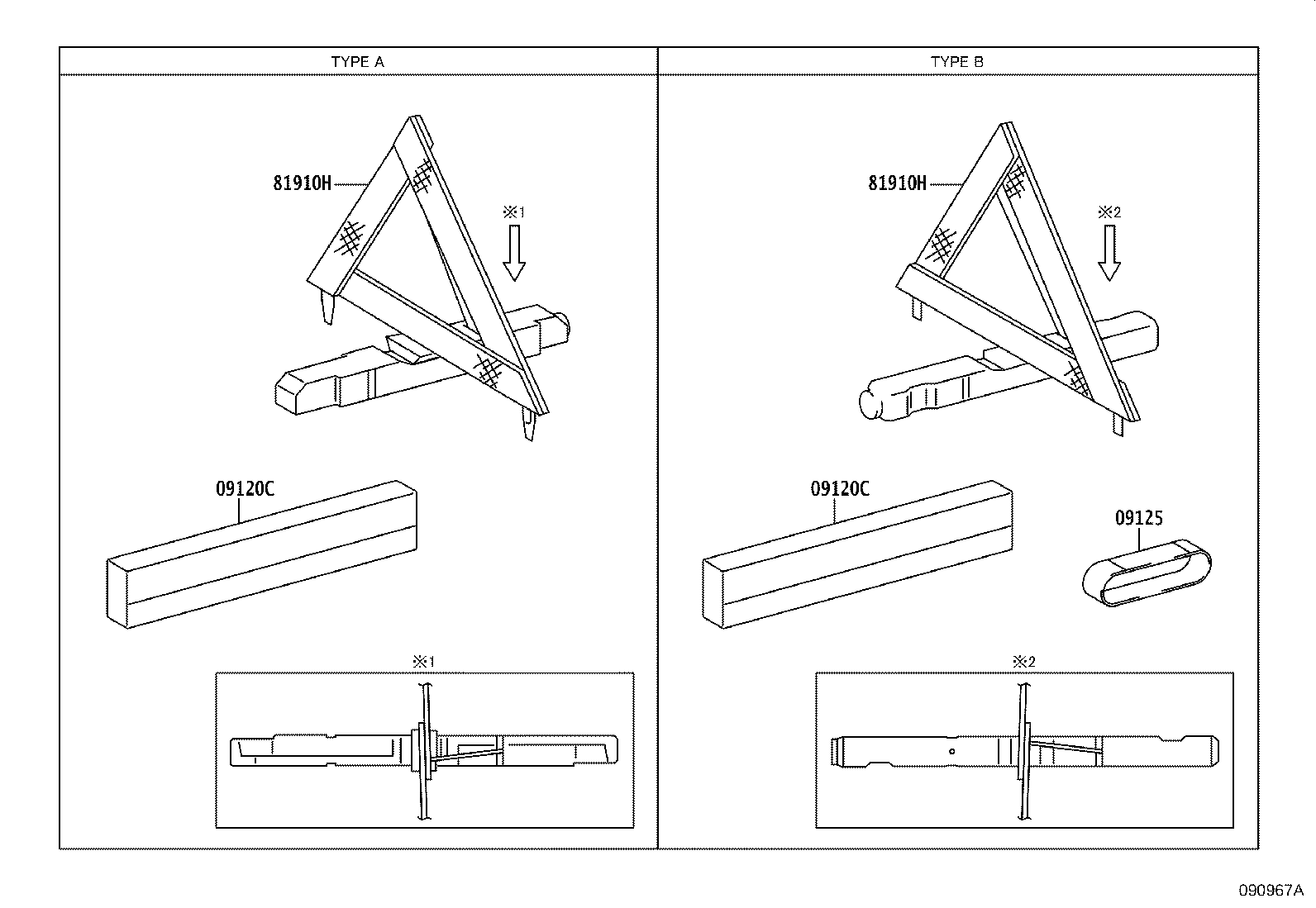

ILLUST NO. 2 OF 2(1806- )BZ

Click highlighted areas on diagram

diagram 09120C 09120C 09125 81910H 81910H
Part # Description Qty Price
09120C - BAG,TOOL, NO.2
09120-0D110

NSP150,151..BZ

TYPE A:REFER ILLUST.

 1
09120-0D110

NSP150,151..BZ..(D,G)

PARAGUAY SPEC,TYPE A:REFER ILLUST.

 1
09120-0D200

NSP150,151..BZ

TYPE B:REFER ILLUST.

 1
09120C - BAG,TOOL, NO.2
09120-0D110

NSP150,151..BZ

TYPE A:REFER ILLUST.

 1
09120-0D110

NSP150,151..BZ..(D,G)

PARAGUAY SPEC,TYPE A:REFER ILLUST.

 1
09120-0D200

NSP150,151..BZ

TYPE B:REFER ILLUST.

 1
09125 - BAND, TOOL BAG
09125-0D010

NSP150,151..BZ

TYPE B:REFER ILLUST.

 1
81910H - REFLECTOR ASSY, REFLEX
81910-02010

NSP150,151..BZ..(D,G)

PARAGUAY SPEC,TYPE A:REFER ILLUST.

 1
81910-02010

NSP150,151..BZ

TYPE A:REFER ILLUST.

 1
81641-0D050

NSP150,151..BZ

TYPE B:REFER ILLUST.

 1
81910H - REFLECTOR ASSY, REFLEX
81910-02010

NSP150,151..BZ..(D,G)

PARAGUAY SPEC,TYPE A:REFER ILLUST.

 1
81910-02010

NSP150,151..BZ

TYPE A:REFER ILLUST.

 1
81641-0D050

NSP150,151..BZ

TYPE B:REFER ILLUST.

 1
