NSP151L-HHFDK (2018)
Toyota Yaris

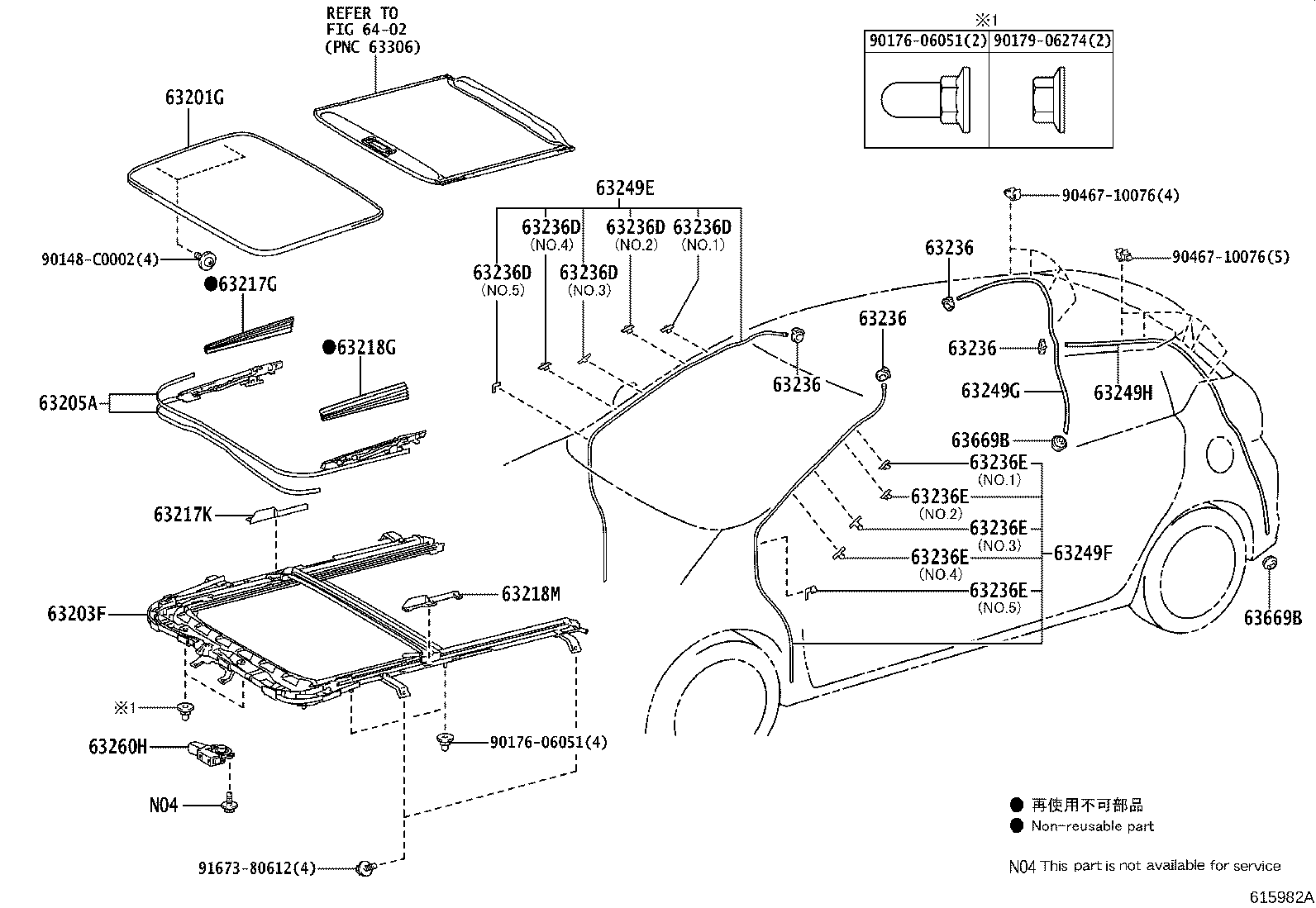

ILLUST NO. 2 OF 2(1806- )HTWC ; (1806- )NSP150,151
MOON ROOF HOUSING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0D050 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0D040 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-0D031 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-30100 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0D030 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-30100 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0D010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-34470 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2,NO.4 |
3 | ||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-34470 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2,NO.4 |
3 | ||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-34470 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2,NO.4 |
3 | ||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-34470 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2,NO.4 |
3 | ||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-34470 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2,NO.4 |
3 | ||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.4 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2 |
2 | ||
| 82711-34480 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 82711-48220 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.4 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2 |
2 | ||
| 82711-34480 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 82711-48220 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.4 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2 |
2 | ||
| 82711-34480 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 82711-48220 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.4 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2 |
2 | ||
| 82711-34480 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 82711-48220 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 82711-1E450 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.4 |
1 | ||
| 63236-12010 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.1,NO.2 |
2 | ||
| 82711-34480 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.5 |
1 | ||
| 82711-48220 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)),NO.3 |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52170 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52220 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52250 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63249H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52250 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0D060 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
NSP151..(BZ,GEN)..G SPORT PACKAGE(*RCL(LED TYPE)) |
2 | ||
| Common parts | ||||
| 90148-C0002 | ||||
| 90176-06051 | ||||
| 90179-06274 | ||||
| 90467-10076 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
