NSP151L-AHXVKR (2016)
Toyota Yaris
(1605- )1NRFE,2NRFE..A,B,C,F
12V 80A

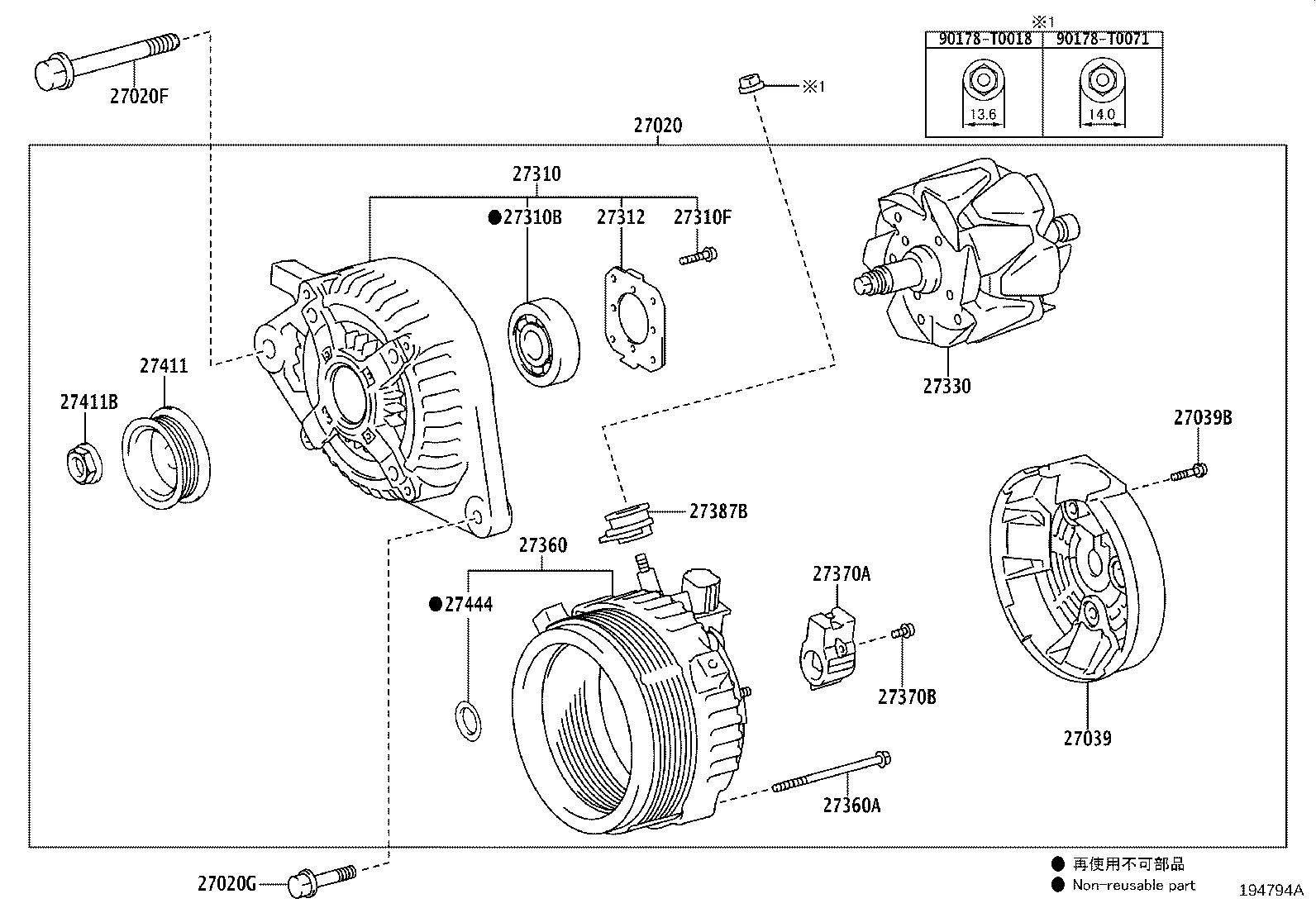

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Y330 |
2NRFE..NSP151..TAIW 12V 80A |
1 | ||
| 27060-0Y310 |
2NRFE..NSP151..C 12V 80A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 90105-T0172 |
2NRFE..NSP151..C |
1 | ||
| 90105-T0172 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NR#..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 90105-T0172 |
1NRFE,2NRFE,3NRFE..NSP15#..A |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 90105-T0130 |
2NRFE..NSP151..C |
1 | ||
| 90105-T0130 |
1NRFE,2NRFE,3NRFE..NSP15#..A |
1 | ||
| 90105-T0130 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NR#..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0C190 |
2NRFE..NSP151..C |
1 | ||
| 27039B - BOLT(FOR ALTERNATOR REAR END COVER) | ||||
| 90068-04047 |
2NRFE..NSP151..C |
3 | ||
| 90068-04047 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
3 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Y180 |
2NRFE..NSP151..TAIW |
1 | ||
| 27310-0Y290 |
2NRFE..NSP151..C |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10040 |
1NRFE,2NRFE,3NRFE..NSP15#..A |
1 | ||
| 90068-10040 |
2NRFE..NSP151..C |
1 | ||
| 90068-10040 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-00022 |
2NRFE..NSP151..C |
4 | ||
| 90068-00022 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NR#..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C190 |
2NRFE..NSP151..C |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0C190 |
2NRFE..NSP151..C |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0Y270 |
2NRFE..NSP151..TAIW |
1 | ||
| 27360-0Y290 |
2NRFE..NSP151..C |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0M040 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NR#..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 27370-0M040 |
2NRFE..NSP151..C |
1 | ||
| 27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER) | ||||
| 90068-00023 |
2NRFE..NSP151..C |
2 | ||
| 90068-00023 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NR#..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
2 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0C190 |
2NRFE..NSP151..C |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0D200 |
2NRFE..NSP151..C |
1 | ||
| 27411-0Y180 |
2NRFE..NSP151..TAIW |
1 | ||
| 27411-0D200 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE..NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 27411B - NUT(FOR ALTERNATOR PULLEY) | ||||
| 90068-05009 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE..NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| Common parts | ||||
| 90178-T0018 | ||||
| 90178-T0071 | ||||
